C23i Maintenance Instructions
Cleaning
59
CLEANING
CAUTION
If a pressure washer is used on the ex-
posed working parts, avoid water on the
electrical parts and the engine cooling
system.
Engine Air Cleaner System
Turbine Precleaner (Enginaire™)
The engine air cleaner system includes a turbine
precleaner; a spinning fan driven by the intake
airow separates dust from the air, giving the initial
stage of air cleaning.
Every 100 hours check the Turbine Precleaner
(located in the end cap of the air cleaner assem-
bly) for free movement of the internal fan. Shine
light into end cap to verify movement of fan with
engine running.
Enginaire™ VLR Air Cleaner
A remote mounted Enginaire™ air cleaner pro-
vides the air ltering function. The paper lter
element slides over an outlet tube inside the air
cleaner canister with radial sealing action, reduc-
ing the possibility of dust leaks due to improper
lter installation. Intake design and internal ba󰀪ing
provide dust separation and automatic precleaning
action. Daily or frequent servicing of the air clean-
er is not required.
IMPORTANT: Use only Enginaire™ air lter ele-
ments for replacement (Walker P/N 5090-5 and
5090-6). Aftermarket lters may not seal properly
or lter e󰀩ciently.

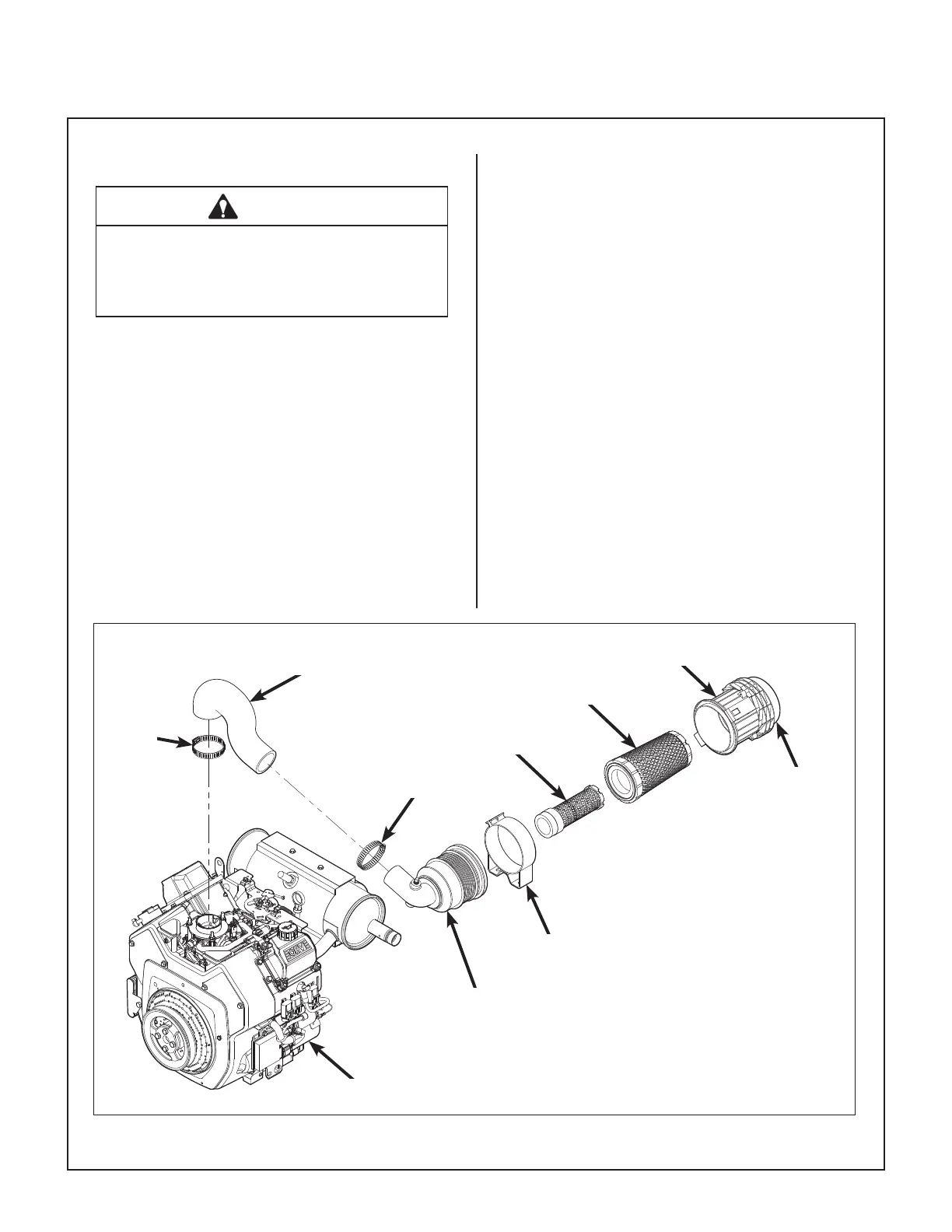

Engine Air Cleaner System Components
Engine
Hose
Clamp
Safety
Filter
Hose
Clamp
Air Intake
Hose
Turbine
Precleaner
Primary Filter
Element
Enginaire™
Air Cleaner Cover
Mounting
Band
Enginaire™ VLR
Air Cleaner
