Wallenstein FX Series - Machine Components

FX85, FX110, FX140
Skidding Winch
Familiarization
17
02182
14
1
11
2
3
4
5
6
7
8
9
10
12
13
15
16
18
19
17

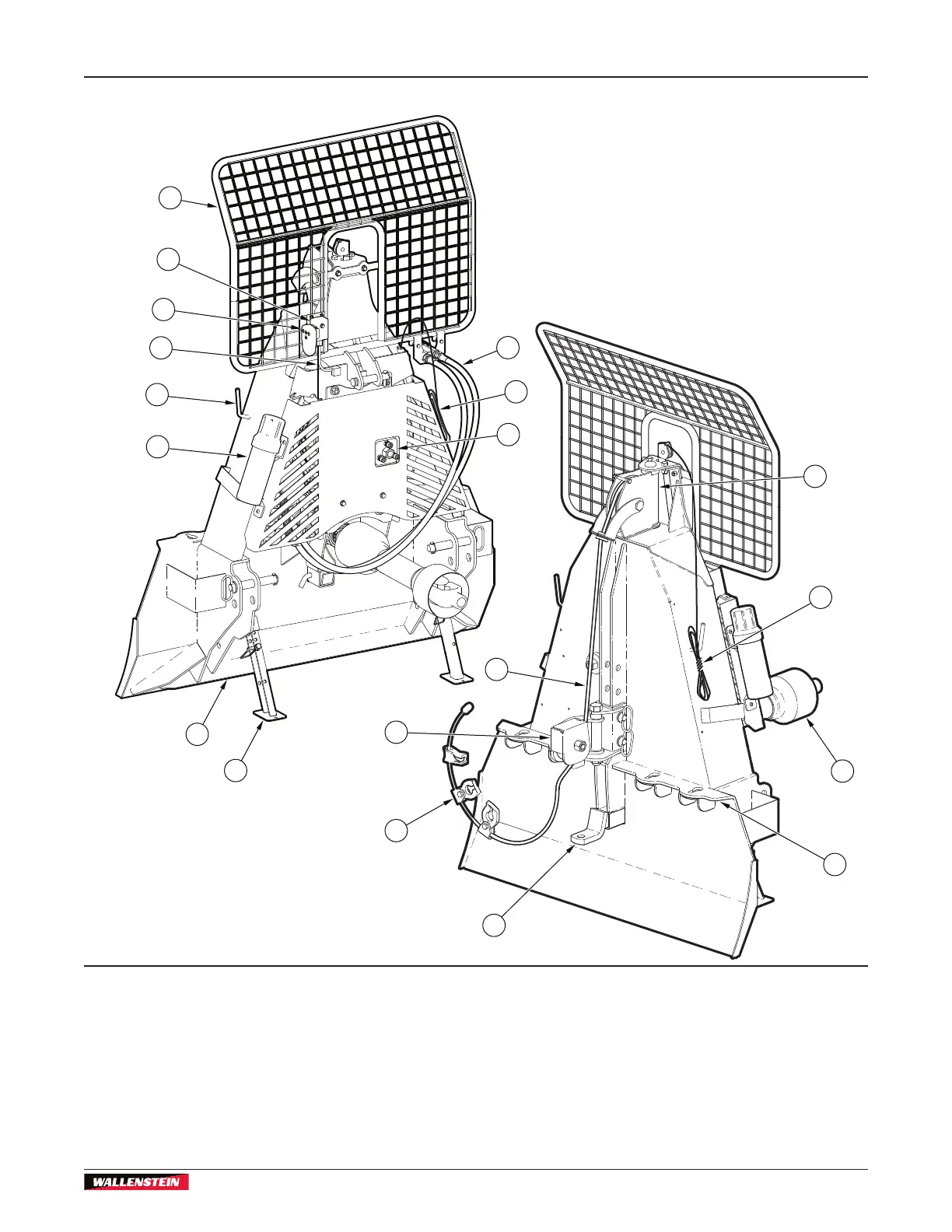

Figure 5 – Machine components
1. Operator's manual tube
2. Chain hook
3. Electrical wires
4. Remote control hand-held transmitter (FX-R and FX-RS models)
5. Remote control receiver (FX-R and FX-RS models)
6. Safety screen
7. Hydraulic hoses (FX-R and FX-RS models)
8. Drum-lock rope (green)
9. Clutch adjustment
10. Top directional pulley
11. Clutch-control rope (white)
12. PTO shaft
13. Chain tow bar
14. Trailer hitch
15. Keyhole sliders
16. Bottom directional pulley
17. Steel cable (FX and FX-R models) or
synthetic winch rope (FX-S and FX-RS models)
18. Support stand (1 of 2)
19. Anchor blade
4.4 Machine Components
