5.9 Trailer Hitch
All skidding winches come with a heavy-duty trailer hitch that
fits into the 2-inch square receiver on the winch frame.
The trailer hitch is attached with a pin and clip.
00595

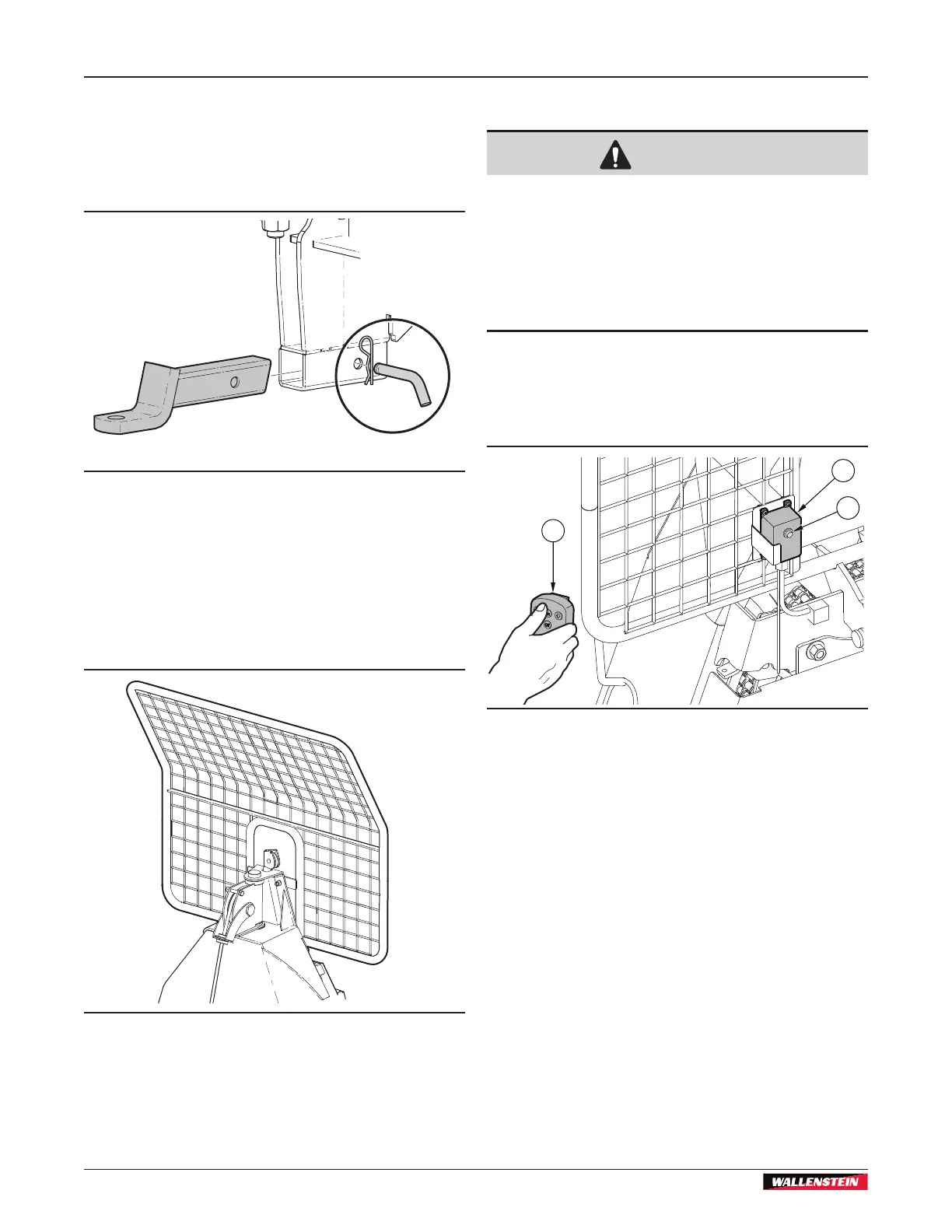

Figure 16 – Trailer hitch
5.10 Safety Screen
Each machine has a safety screen that protects the operator
from flying material, twigs, branches, and cable or winch rope
recoil during operation. Keep the safety screen in working
condition.
00596
Figure 17 – Safety screen
5.11 Remote Control
WARNING!
If it is safe to do so, disconnect the cable or
winch rope from the load before using the
manual override button. Use of the manual
override button when the cable or winch rope
is attached to a load can result in serious injury
or death. There are ying object, hit, crush, and
entanglement hazards in the manual override
button location.
FX85R, FX85RS, FX110R, FX110RS, FX140R, and FX140RS
models have a remote control.
Use the remote control to engage or disengage the winch clutch
from a distance.
02190
1
2
3
Figure 18 – Remote control system
1. Hand-held transmitter
2. Receiver
3. Manual override button
