Wallenstein FX Series - Skidding Logs

Operating Instructions
FX85, FX110, FX140
Skidding Winch
32
01436

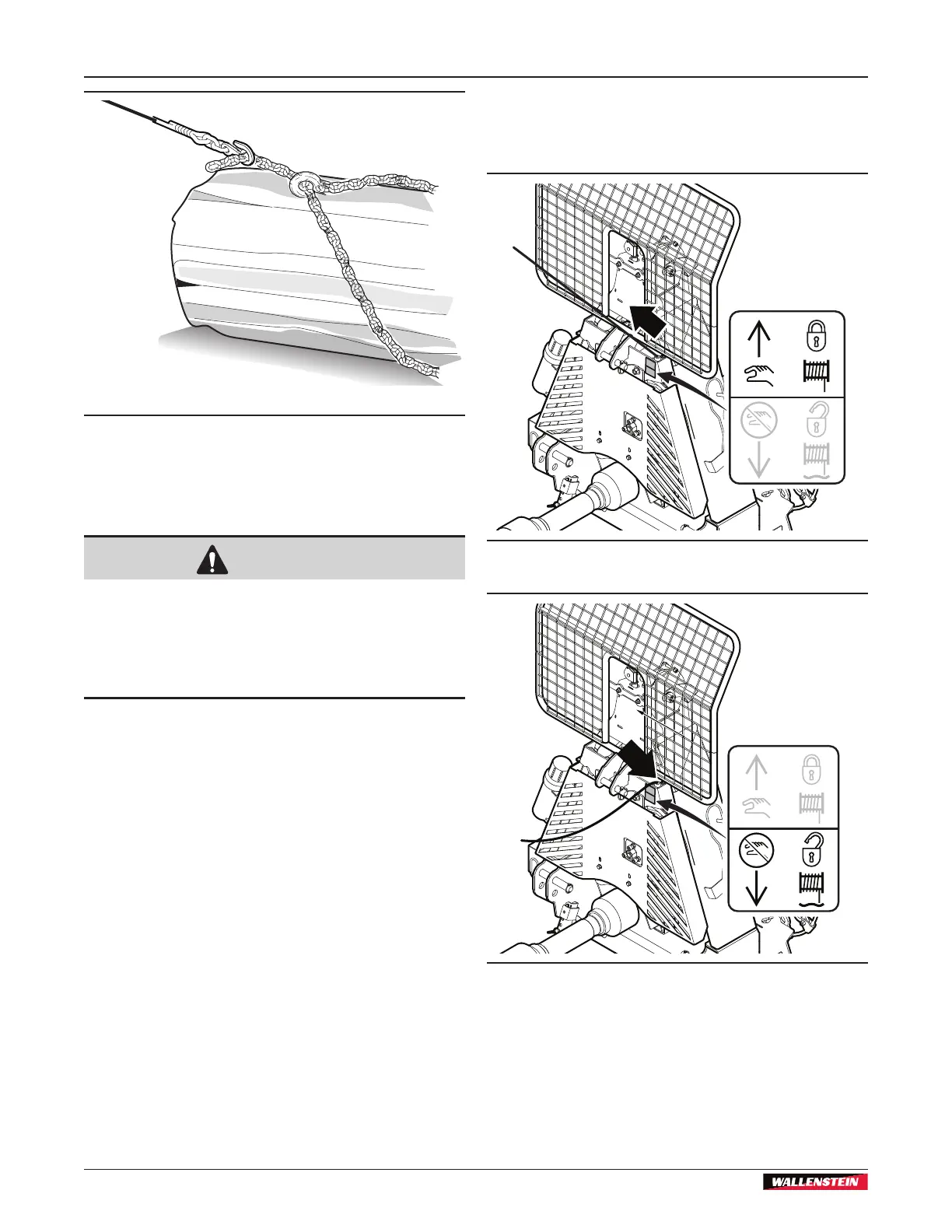

Figure 27 – Choker chain
6.8 Skid Logs
WARNING!
A steel cable or synthetic winch rope that fails
under tension can snap back with great force
causing injury or death. Avoid sudden jerks, and
quick starts or stops. Start slowly and smoothly.
Replace a cable or winch rope that is kinked,
badly frayed, has knots, cuts, or broken strands.
6.8.1 Points to Remember
• Raise the skidding winch above the ground to clear
obstacles when skidding.
• Use a choker chain or synthetic choker to connect to the
cable or winch rope. Do not use a winch rope or strap to
prevent breakage from abrasion or snagging.
• Skid logs after they are winched to the tractor. Be cautious
of hills and rough terrain.
6.8.2 Skidding Procedure
1. Stop the tractor PTO.
2. Lift the machine off the ground.
3. Lock the winch drum.
For instructions, see Winch Drum Lock on page 18.
4. Drive the tractor forward to pull the load to where you want
it.
5. Stop the tractor engine and apply the parking brake.
6. Release the winch drum lock.
7. Pull the clutch-control rope to disengage the winch clutch
and loosen the tension on the cable or winch rope.
8. Disconnect the load.
02194
Figure 28 – Lock the winch drum
02195
Figure 29 – Unlock the winch drum
