FX85, FX110, FX140
Skidding Winch
Controls
25

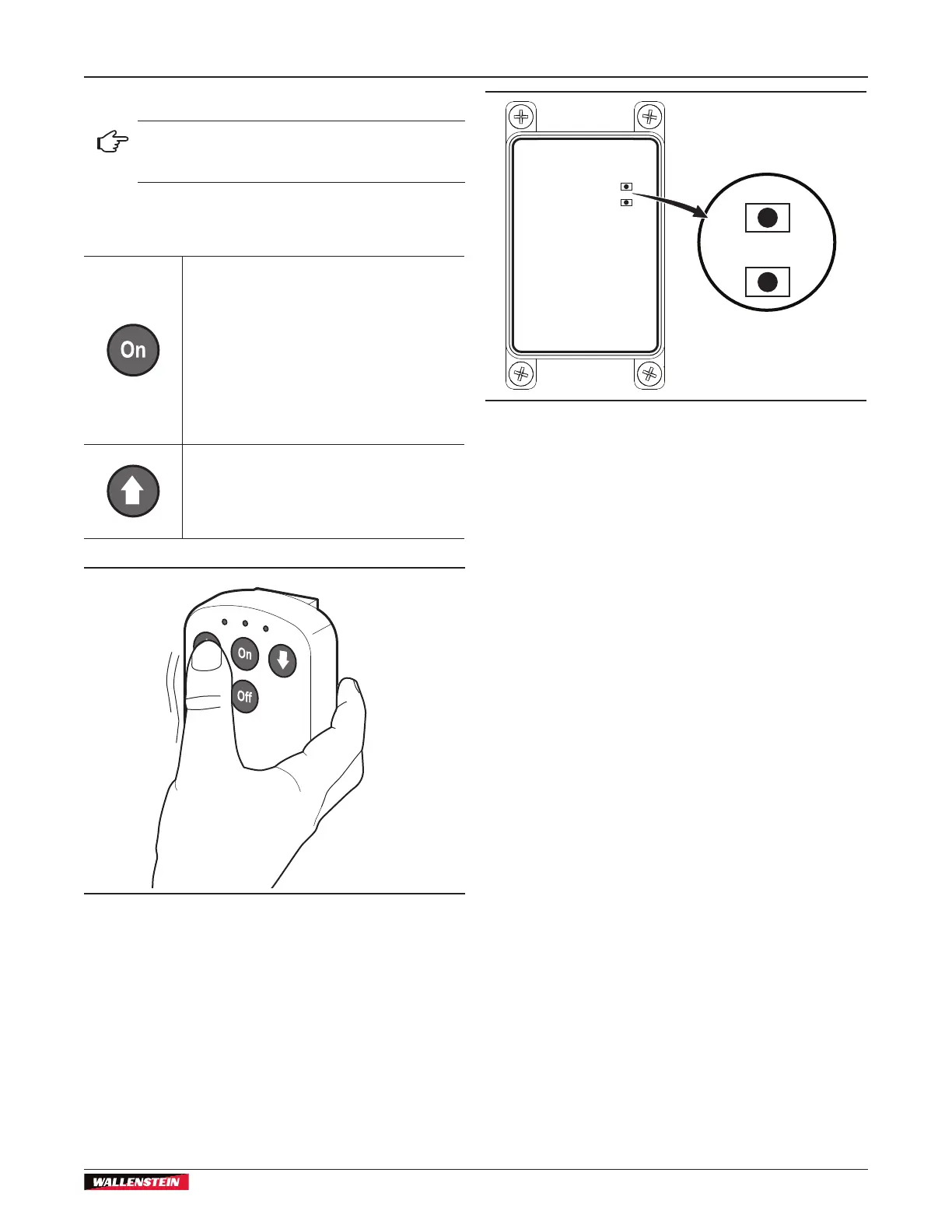

5.11.4 Hand-Held Transmitter Operation
When the up arrow is released the winch clutch
disengages. The winch drum can move freely and
the cable or winch rope can be pulled out.
The hand-held transmitter turns off after three minutes of
inactivity.
Push and hold the On button until the
green light illuminates, and then release the
button.
The green light flashes rapidly when
communication with the receiver is
established.
The green light flashes slowly when the
receiver is off or there is no communication
between the transmitter and the receiver.
Push and hold the up arrow to engage the
clutch and retract the cable or winch rope.
Release the up arrow to disengage the
clutch and stop the machine.
00833
Figure 21 – Hand-held transmitter operation
5.11.5 Synchronize a Transmitter and
Receiver
If it is necessary to synchronize a transmitter and receiver, do
the following:
1. Remove the cover from the receiver.
2. On the receiver circuit board, push the function (F) button.
The F indicator light illuminates red.
F
S
F
S
Figure 22 – Receiver function and select buttons
3. Push the select (S) button. The S indicator light illuminates
red.
4. On the transmitter, push and hold the up arrow and down
arrow simultaneously. The indicator lights inside the
receiver flash three times to acknowledge that the signal is
being received.
5. Release the up arrow and down arrow on the transmitter.
The indicator lights flash red one time to indicate that the
receiver and transmitter are synchronized. If no transmitter
is found within approximately 10 seconds, the receiver exits
to normal operation.
5.11.6 Disconnect the Transmitter from the
Receiver
If it is necessary to disconnect the transmitter from the receiver,
do the following:
1. Remove the cover from the receiver.
2. On the receiver circuit board, push the function (F) button.
The F indicator light illuminates red.
3. Push and hold the select (S) button for a minimum of four
seconds. The lights illuminate red, and then go off.
4. Release the S button. All transmitters are disconnected from
the receiver.
If the F indicator light flashes red, one or more transmitters
remain connected to the receiver. Do this procedure again.
