FX85, FX110, FX140
Skidding Winch
Operating Instructions
29

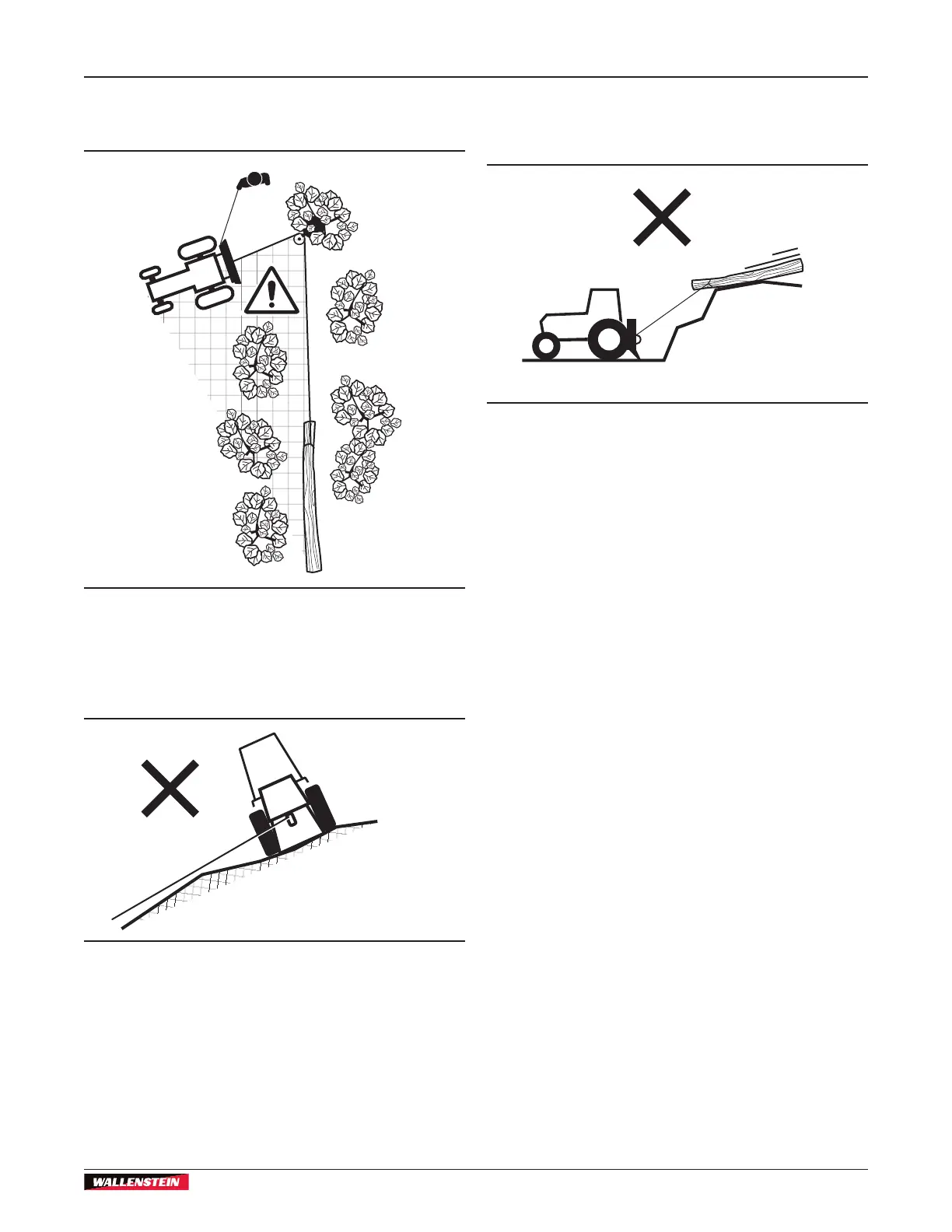

• When using a self-releasing directional pulley, be aware
of danger zone created between the log, the self-releasing
directional pulley, and tractor.
00488
Figure 24 – Use a self-releasing directional pulley
• Do not winch with the tractor sitting sideways on a slope or
hillside. Tractor could roll over. Always position the tractor
in line with the direction of pull.
00490
Figure 25 – Never winch on the side on a slope
• Never winch down a slope. Winching down a slope could
cause the log to roll or slide causing crushing injuries.
Always winch up-slope when possible.
00489
Figure 26 – Never winch down a slope
