WarmFlow 70/90 - Page 20

NEL
PUMP
12345678910
213
LNE
240V
50Hz
10 WAY
JUNCTION BOX
L641A
CYLINDER
STAT
1C
2
T6360B
ROOM STAT
GREY
GREY
BLUE
ORANGE ORANGE
BROWN
BLUE
BROWN
G/YELLOW
G/YELLOW
MOTOR MOTOR
V4043H ZONE VALVE DHWV4043H ZONE VALVE HTG

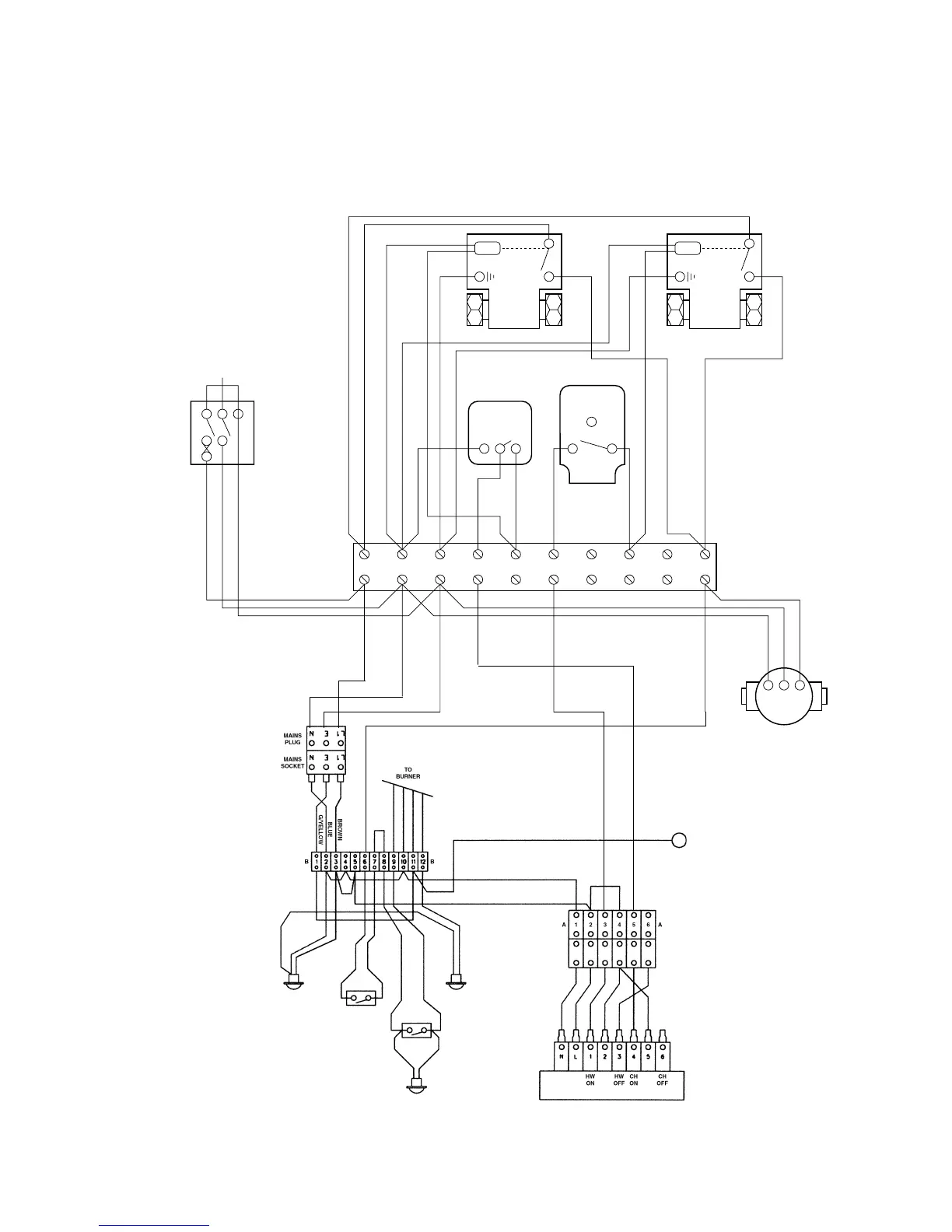

5.6.2 Honeywell ‘S’ Plan – Independant CH&DHW (fully pumped)
Note: Bluebirds and Whitebirds should be treated as simple boilers and wired
as per the control pak manufacturers instructions.
Before fitting the programmer remove loop ‘A’ from 15 and 16 and loop ‘B’ from 15 and
6 on the terminal block. The switch on the programmer is to be set to ‘P’.
Page 18
