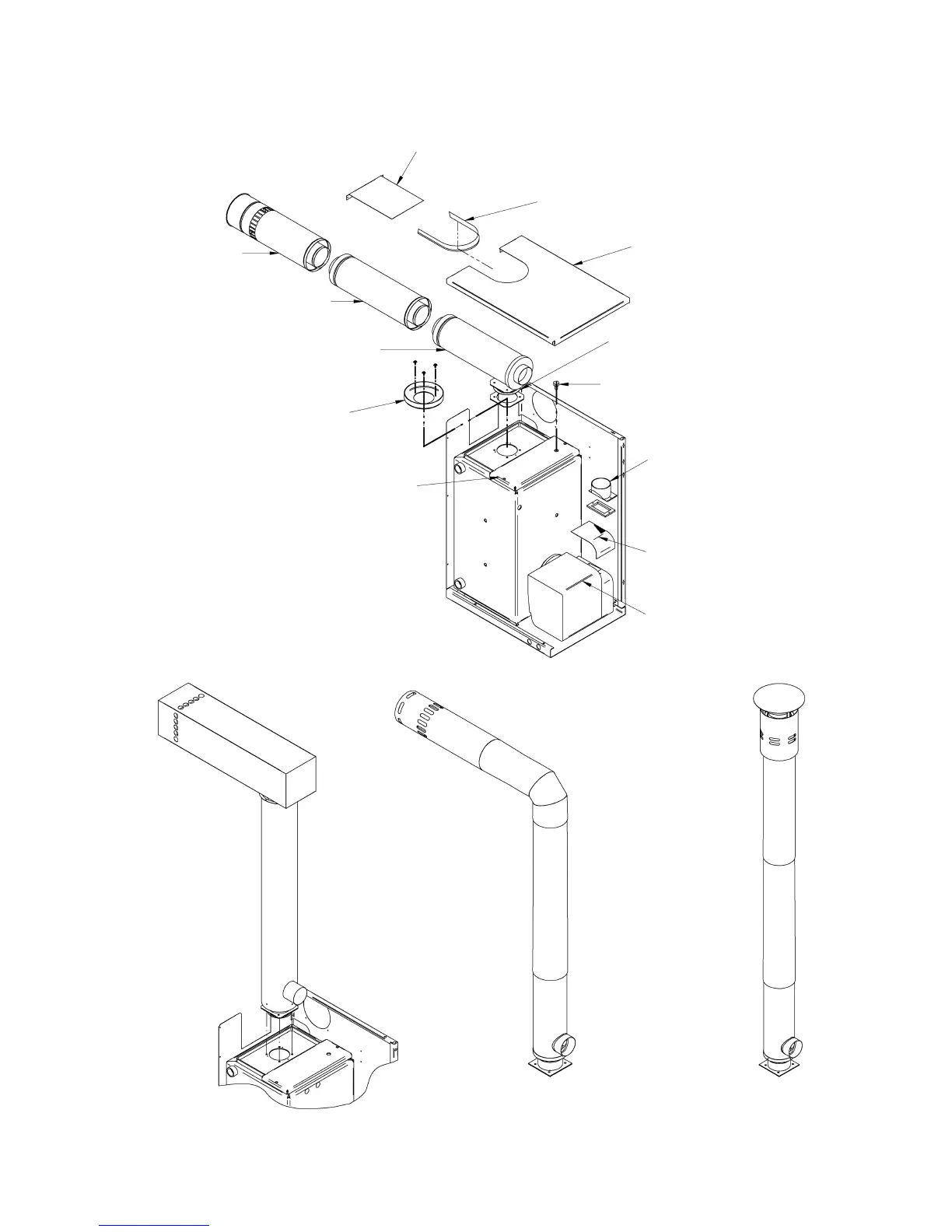

8.3 Installation of Flue
AIR INTAKE
ADAPTER
SPIGOT &
GASKET
AIR INTAKE
COVER
RIELLO RDB
BURNER
TEST HOLE
PLUG
FLUE GASKET
TOP PANEL
OPTIONAL FLUE
DRESSING RING
TOP PANEL
BLANKING PLATE
BOILER LID
CONVENTIONAL
FLUE RING
HORIZONTAL
FLUE ADAPTER
OPTIONAL EXTENSION
PIECES
FLUE TERMINAL
Easy Fit
Balanced Flue
(BF-R)
Easy Fit High
Level Balanced
Flue (HLBF)
Easy Fit High
Level Balanced
Flue (HLBF-R)
Easy Fit Vertical
Balanced
Flue (VBF)
Page 25
