WarmFlow 70/90 - Dimensions - Domestic Models

H
A
B
J
F
D
E
C
= =
G
K

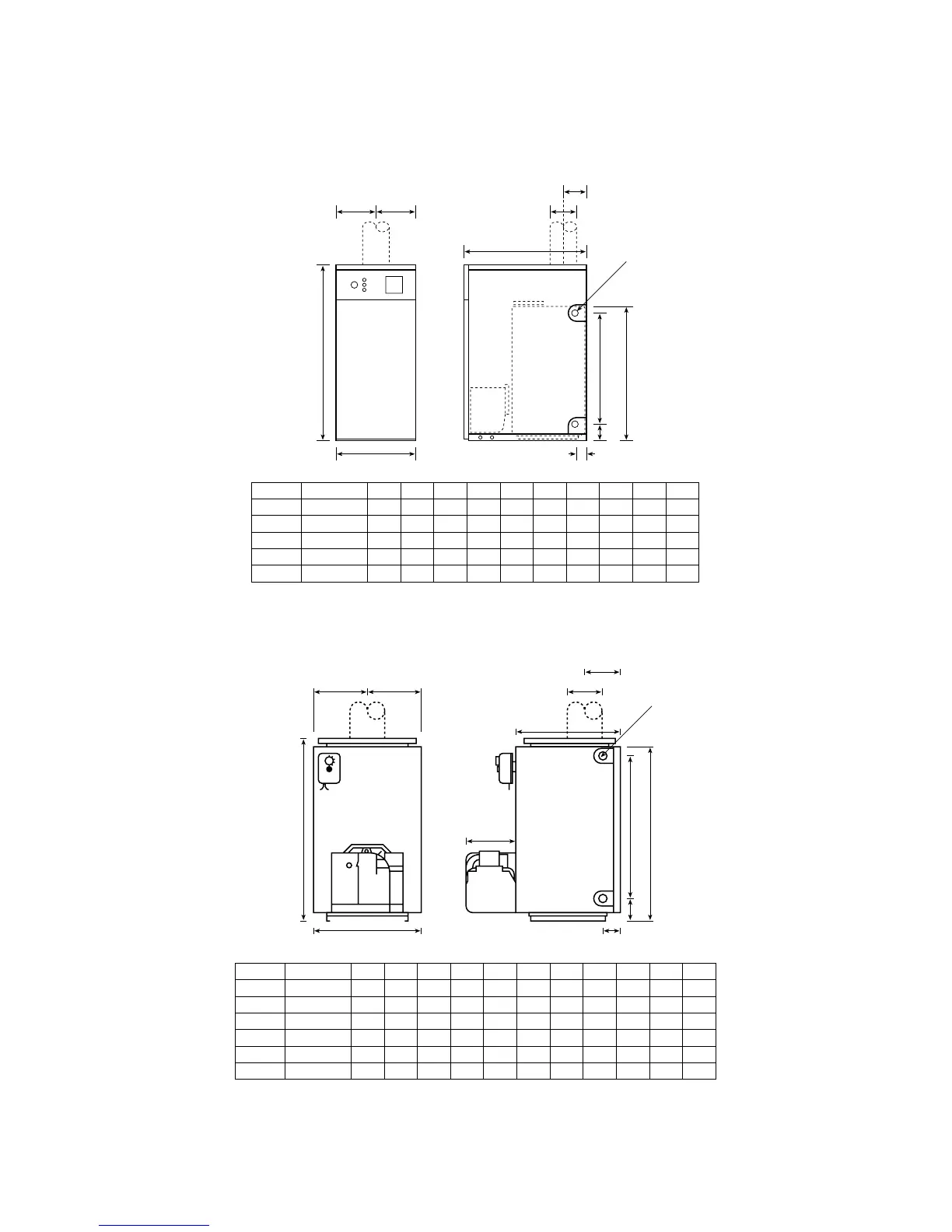

3.0 Dimensions
3.1 Goldbird Kitchen, Whitebird and Whitebird System Utility Room Models (including
front servicing boilers)
J
127
127
127
127
127
OUTPUT (kW)
14.6-20.5
20.5-26.4
26.4-35.2
35.2-44.0
44.0-58.6
A
865
865
865
1168
1168
B
413
413
595
495
495
C
599
599
599
785
785
D
90
90
90
102
102
E
59
59
59
72
72
F
554
554
541
809
809
G
664
664
664
956
956
H
128
128
128
128
128
MODEL
50-70
70-90
90-120
120-150
150-200
K
4x1”
4x1”
4x1
1
/2”
4x1
1
/2”
4x1
1
/2”
3.2 Bluebird Boilerhouse Models
B E
K
= = J
H
C
A
F G
D
L
J
127
127
127
127
127
152
A
688
688
688
965
965
965
B
405
405
585
490
490
490
C
387
387
392
530
530
530
D
88
88
88
102
102
102
E
62
62
67
72
72
72
F
554
554
541
809
809
809
G
662
662
662
956
956
956
H
130
130
138
119
119
139
MODEL
50-70
70-90
90-120
120-150
150-200
200-250
OUTPUT (kW)
14.6-20.5
20.5-26.4
26.4-35.2
35.2-44.0
44.0-58.6
58.6-73.3
K
188
188
188
188
246
246
L
4x1”
4x1”
4x1
1
/ 2 ”
4x1
1
/ 2 ”
4x1
1
/ 2 ”
4x1
1
/ 2 ”
Page 7
