5.1.3 Waste-tubing connections

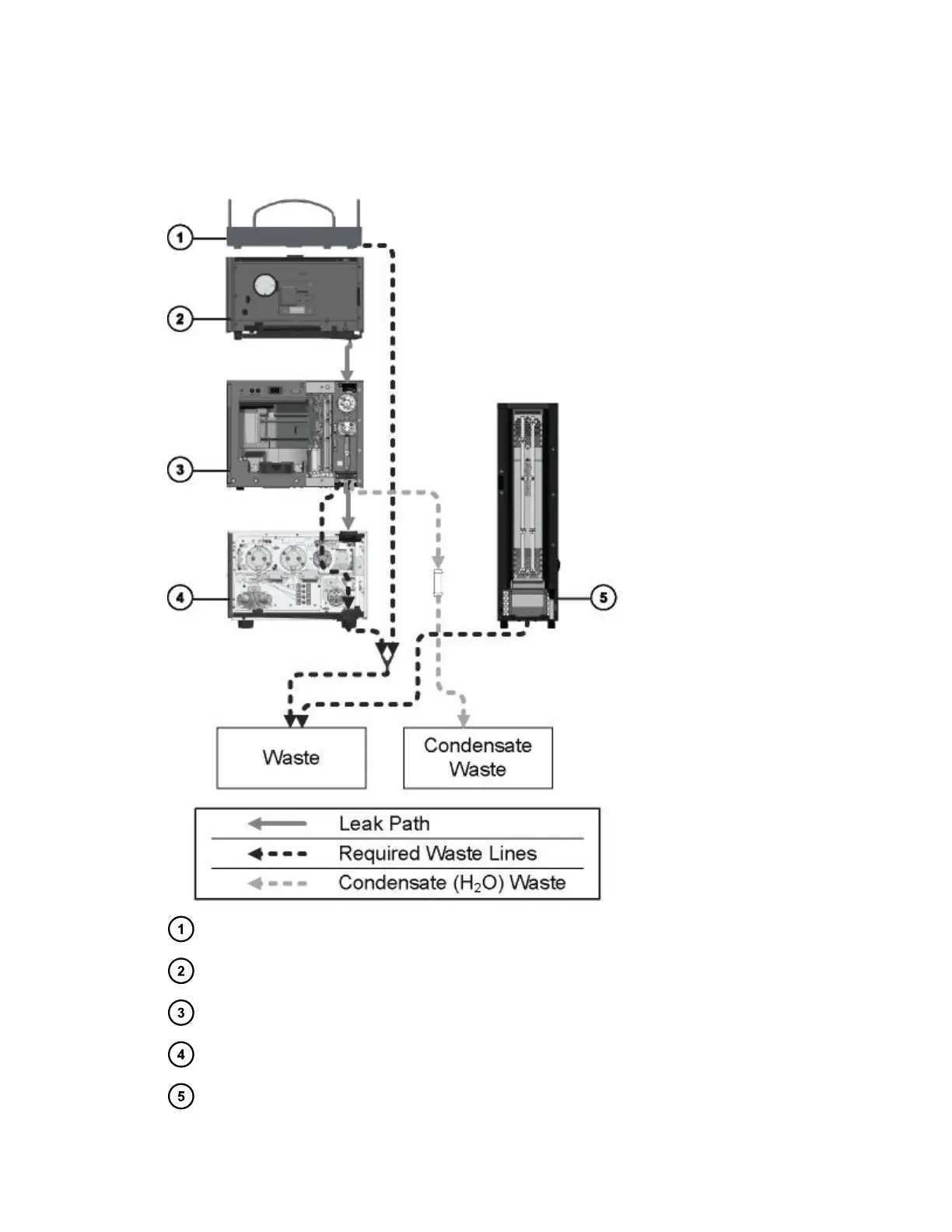

Figure 5–3: System waste-tubing connections
Solvent tray
Detector
SM FTN-R
QSM-R
Column module (30-cm CHC shown)
June 12, 2015, 715004747 Rev. A
Page 53
