ACQUITY control panels 3-9

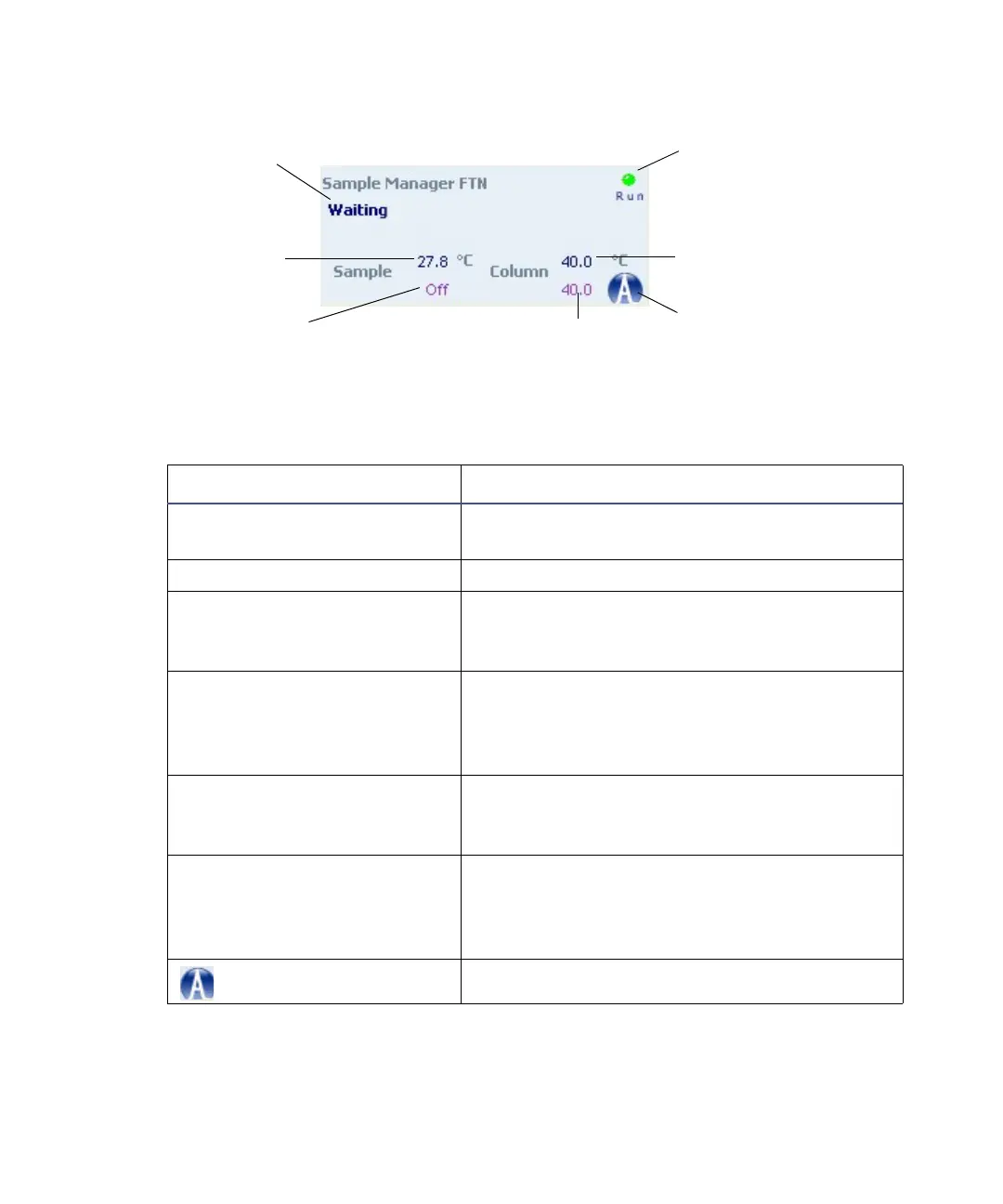

Sample manager control panel:
The following table describes the items in the sample manager’s control panel.
Sample manager control panel items:
Control panel item Description
Run LED Displays the actual run LED on the front
panel, unless communications are lost.
Status Displays the status of the current operation.
Current Sample
Compartment Temperature
Displays the current sample compartment
temperature, to 0.1 °C resolution, even when
active temperature control is disabled.
Sample Compartment Set
Point
Displays the current sample compartment
set point, to 0.1 °C resolution. When active
temperature control is disabled, this field
displays “Off”.
Current Column Heater
Temperature
Displays the current column heater
temperature to 0.1 °C resolution, even when
active temperature control is disabled.
Column Heater Set Point Displays the current column heater set point,
to 0.1 °C resolution. When active
temperature control is disabled, this field
displays “Off”.
(Display Console)
Displays the ACQUITY UPLC Console.
Run LED
Current column heater
temperature
Display ACQUITY UPLC
Console
Column heater set
point
Status
Current sample
compartment
temperature
Sample
compartment set
point
