External wiring connections
ACQUITY UPLC I-Class instrument external wiring connections

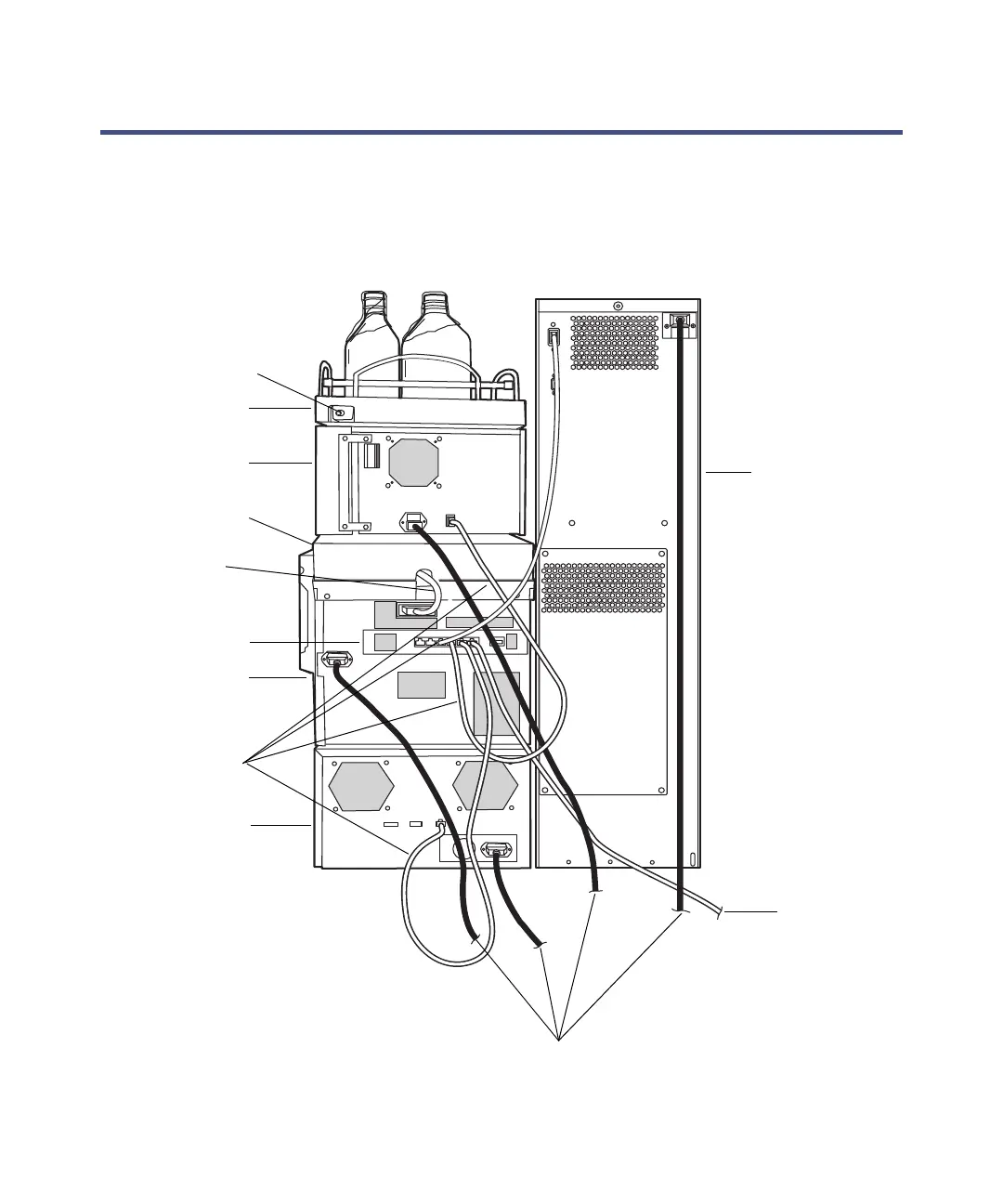

The rear panel connections for ACQUITY UPLC I-Class system modules are
shown below.
TP03423
Ethernet switch
External power and
communications
cable (CH-A and
CH-30A only)
Ethernet cables
Power cords
Ethernet
cable to PC
Solvent tray
Detector
Column heater
Sample manager
Binary solvent
manager
Sample organizer
Drain tube outlet
