Waters ACQUITY UPLC I-Class - Page 62

B-6 External Connections
Required materials
• 9/32-inch nut driver
• Flat-blade screwdriver
• Connector
• Signal cable
To make signal connections:

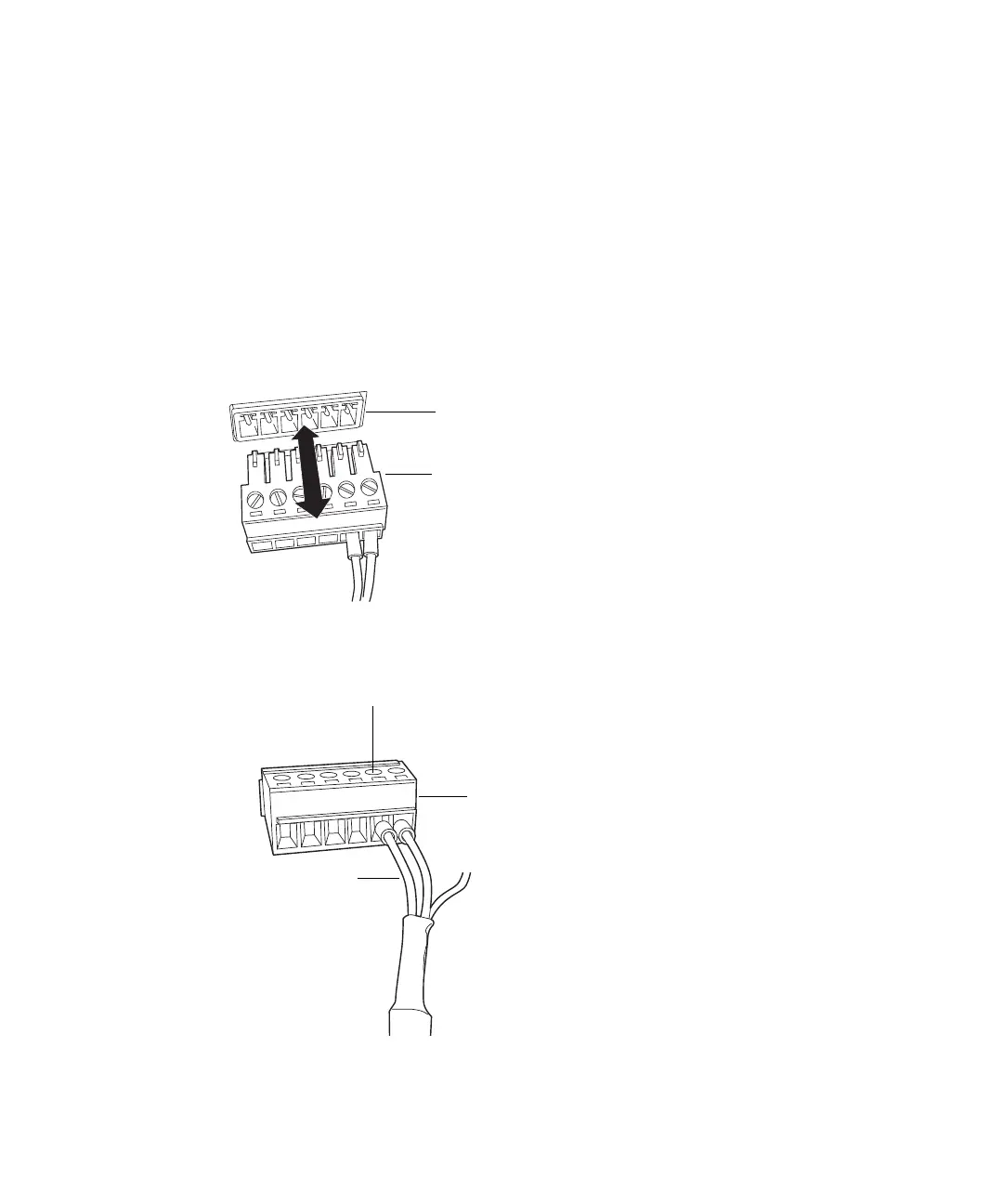

1. Insert the connector into the connector port on the back of the system
module.
2. Using the flat-blade screwdriver, attach the positive and negative leads
of the signal cable to the connector.
Connector
Connector port
Signal cable
Screw
Connector
