Auto-Zone Plus Section 4
Start-Up and Troubleshooting 4-5
TO OTHER
Temp-Zone AZ PLUS
ZONE MANAGERS
CAUTION!
NETWORK
ASSURE THAT THE NETWORK LOOP ONLY
CONNECTS TO ZONE MANAGER TERMINALS.
DO NOT CONNECT ANYTHING OTHER THAN ZONE MANAGERS
AND THE COMMLINK II TO THE NETWORK TERMINALS.
CONNECT ZONE CONTROLLERS, CV UNITS AND THE
SYSTEM MANAGER TO THE LOCAL LOOP(S).
ZONE CONTROLLERS SHOULD BE CONNECTED TO
THE LOCAL LOOP COMING FROM THE ROOFTOP
UNIT WHICH SUPPLIES AIR FOR THAT CONTROLLER
HVAC UNIT #1
ZONE MANAGER
HVAC UNIT #2
ZONE MANAGER
CLUSTER ADDRESS
SWITCH SET TO 1
CLUSTER ADDRESS
SWITCH SET TO 2
LOCAL LOOP #1
LOCAL LOOP #2
TO HVAC UNIT #2
ZONE CONTROLLERS
and
CONSTANT VOLUME
UNITS IF USED
T
R
SHLD
T
R
SHLD
TO MODEM
(OPTIONAL)
TO COMPUTER
(OPTIONAL)
NETWORK LOOP
TO
24VAC
POWER
SUPPLY
COMMLINK II

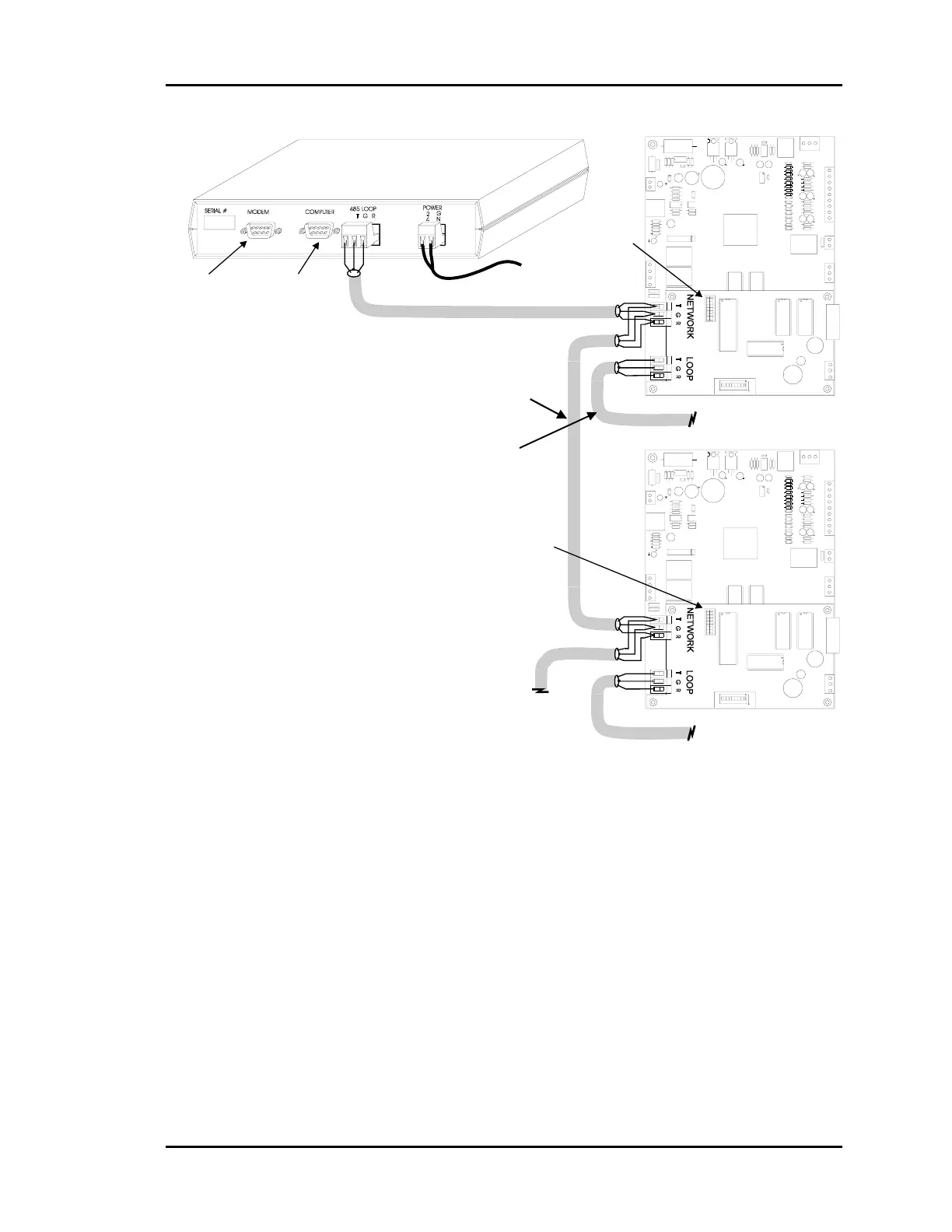

Figure 4-3: Network Loop Wiring
