Audi A4 / A5
Ident. No.: 1313525D_EN Status: 25.09.2012 © Webasto Thermo & Comfort SE
10

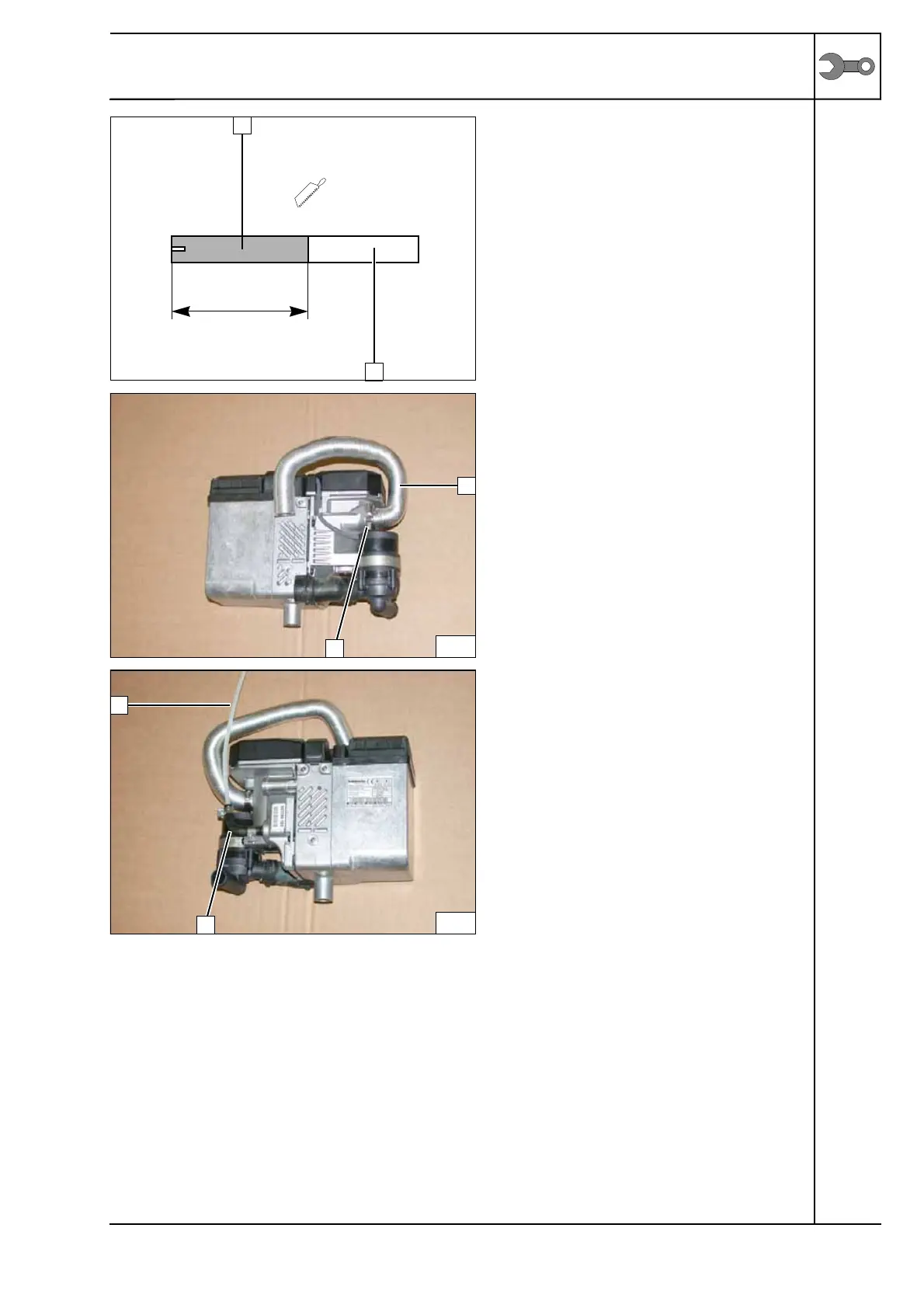

Preparing Heater
Discard section X
1
Combustion air pipe
a = 350
Cutting
combus-
tion air
pipe to
length
1
Combustion air pipe
2 Clamp
Premount-
ing com-
bustion air
pipe
1
90° moulded hose, 10 mm dia. clamp [2x]
2 Fuel line
Premount-
ing fuel
line
a
1
X
13
1
2
14
2
1
