Audi A4 / A5
Ident. No.: 1313525D_EN Status: 25.09.2012 © Webasto Thermo & Comfort SE
14
Coolant Circuit 3.0l 150KW / 180KW
WARNING!
Any coolant running off should be collected using an appropriate container. Install hoses so that they
are kink-free. Unless specified otherwise, always fasten using cable ties. Position clamps so that other
hoses cannot be damaged. The heater must be filled with coolant when installing the hoses.

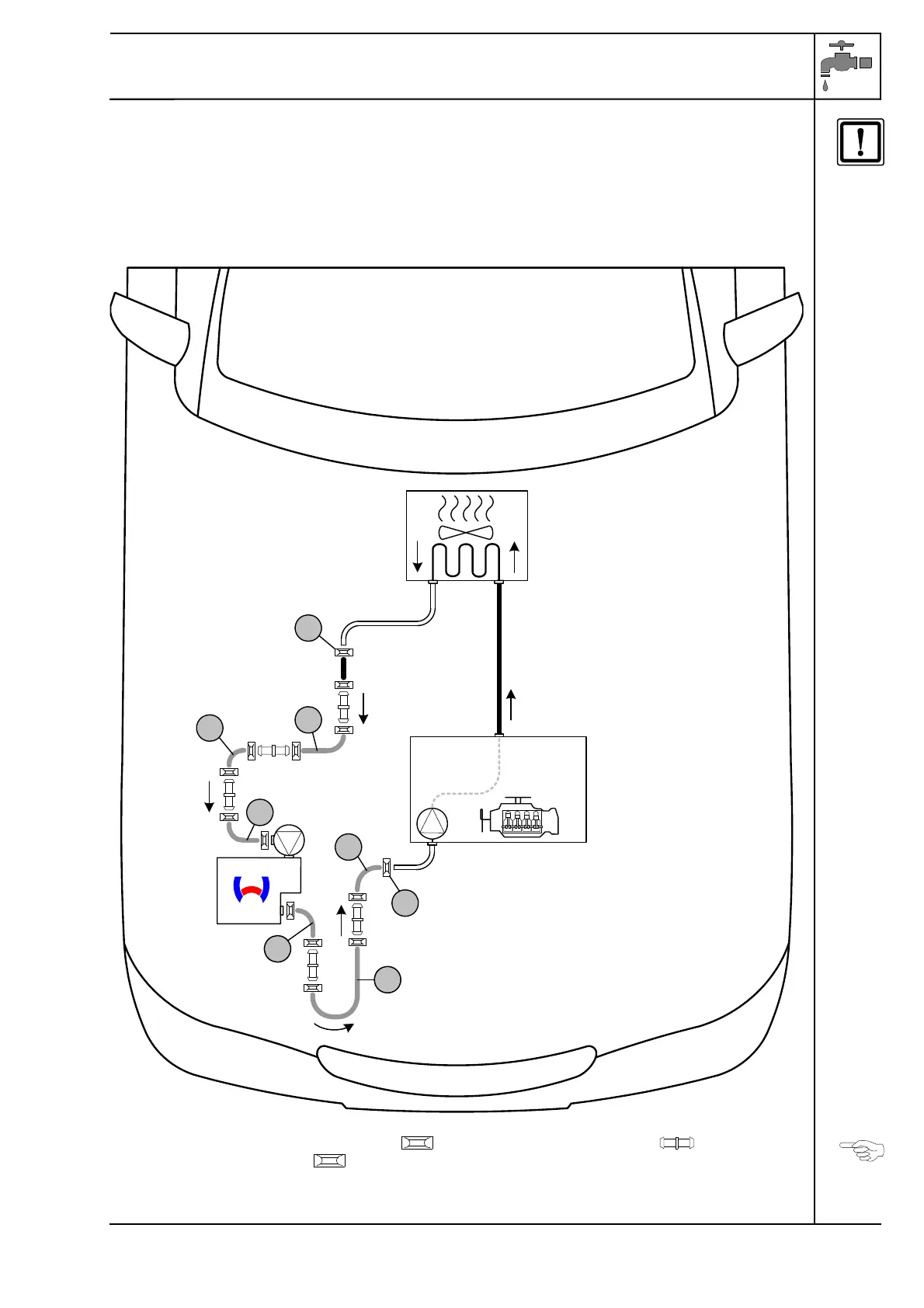

The connection should be "inline" based on the following diagram:
Hose in-
stallation
diagram
All spring clips without a specific designation = 27 mm dia. All connecting pipes = 20x20mm dia.
1
= Original vehicle spring clip .
