Audi A4 / A5
Ident. No.: 1313525D_EN Status: 25.09.2012 © Webasto Thermo & Comfort SE
7
Fan Controller

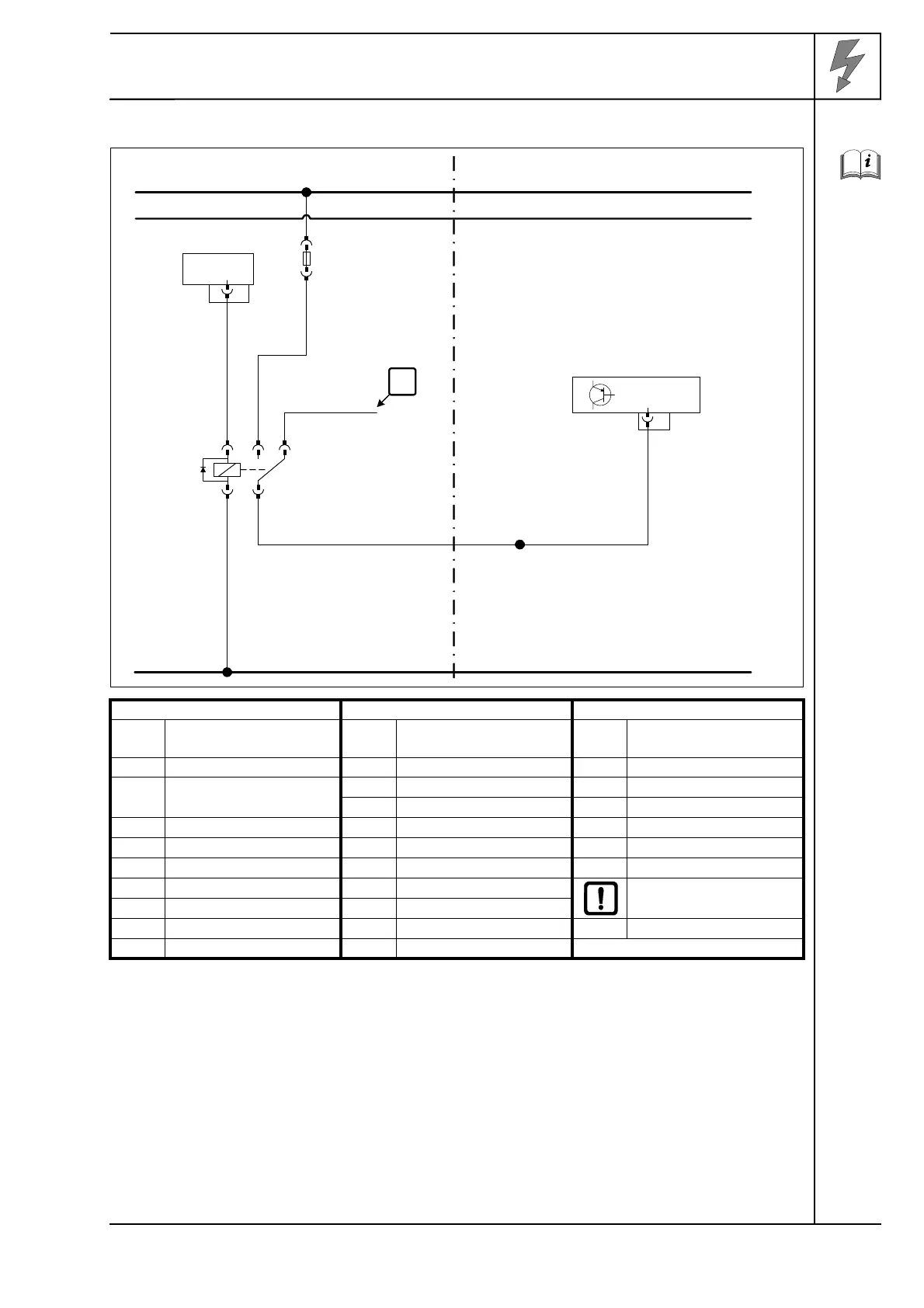

Wiring dia-
gram
Webasto components Vehicle components Colours and symbols
Legend
HG Heater TT-C/E J255 Air-conditioning control
panel
rt red
X1 6-pin heater connector T20e 20-pin connector J255 ws white
F3 Replace 25 A with 1 A
fuse
sw black
gn green
K3 Fan relay
Insulate wire ends and
tie back
X Cutting point
Wiring colours may vary.
Webasto
31
30
15
Audi
F3
86
85 30
87a87
K3
HG
X1
4
!
J255
3
T20e
sw
gn/ws
0,75²
rt
