Webasto Thermo Top C Installation

Audi A4 / A5
Ident. No.: 1313525D_EN Status: 25.09.2012 © Webasto Thermo & Comfort SE
8

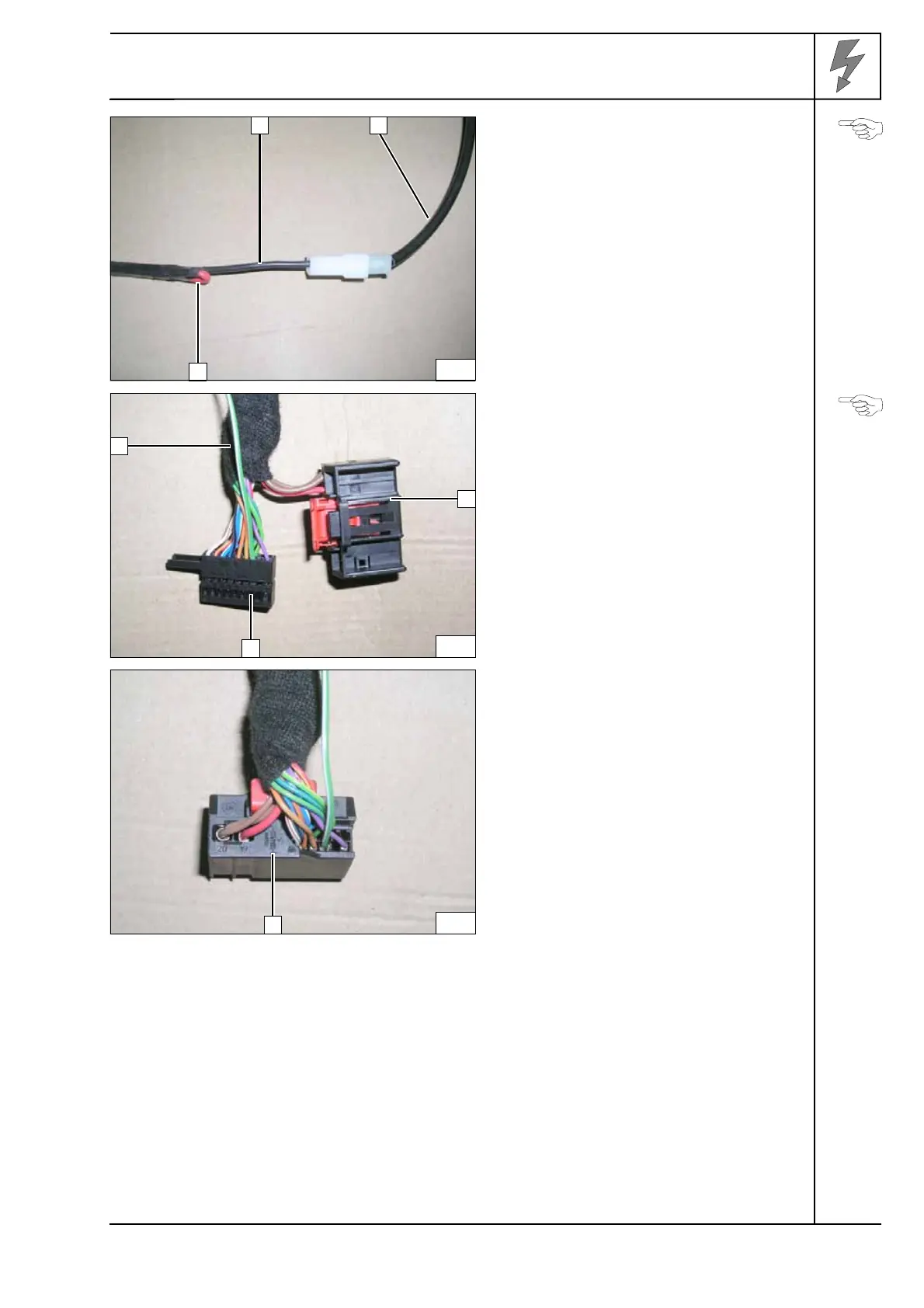

Produce connections as shown in wiring dia-
gram.
1 Black (sw) wire from K3/30
2 Green/white (gn/ws) additional wire in pro-
tective sleeving
3 Insulate red (rt) wire K3/87a and tie back
Preparing
fan wiring
harness
Connection to 20-pin connector T20e 1 from
A/C control panel.
Produce connections as shown in wiring dia-
gram.
1 Remove connector T20e of A/C control
panel
2 Free socket, PIN 3
3 Green/white (gn/ws) additional line
Connec-
tion of air-
condition-
ing con-
trols
1
Complete 20-pin connector of A/C control
panel
Reinsert-
ing con-
nector
6
1
3
2
7
1
3
2
8
1
