Webasto Thermo Top C Installation

Audi A4 / A5
Ident. No.: 1313525D_EN Status: 25.09.2012 © Webasto Thermo & Comfort SE
9

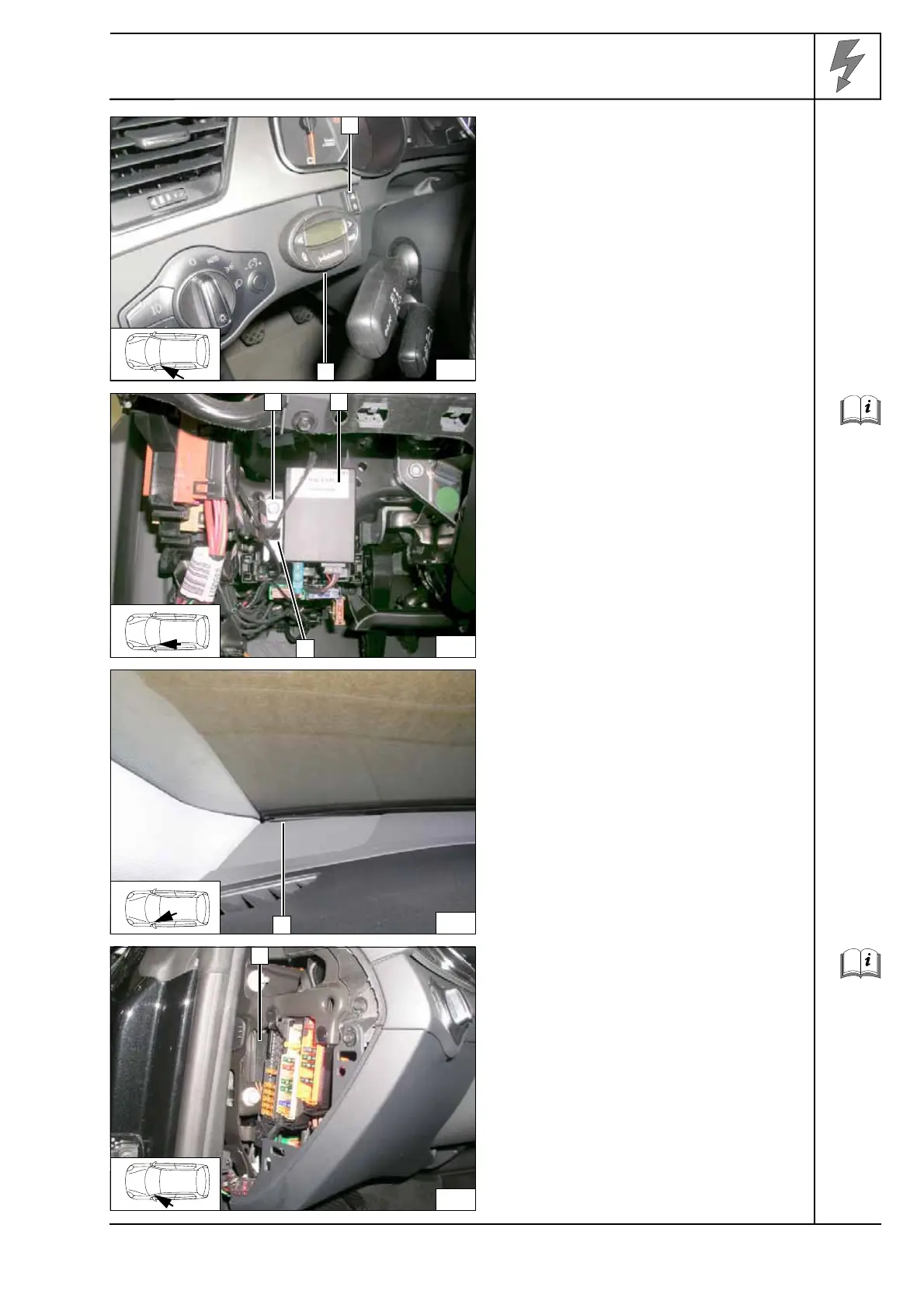

Digital Timer, Summer/Winter
Switch Option
1 Summer/winter switch, drilled hole 12 mm
dia.
2 Digital timer
Installing
digital tim-
er
Remote Option (Telestart)
Drill out bracket 3 to 6.5mm dia. at position 1.
1 M6x16 bolt in existing threaded hole
2 Receiver
Installing
receiver
1
Antenna
Installing
antenna
Temperature sensor only in case of T100
HTM
1
Fasten temperature sensor with adhesive
tape
Installing
tempera-
ture sensor
1
2
9
3
10
1 2
11
1
1
12
