Webasto Thermo Top C Installation

Audi A4 / A5
Ident. No.: 1313525D_EN Status: 25.09.2012 © Webasto Thermo & Comfort SE
20
Fuel
CAUTION!
Open the vehicle's fuel tank cap, ventilate the tank and then re-close the tank lock.
Catch any fuel running off with an appropriate container.
Install fuel line and metering pump wiring harness so that they are protected against stone impact. Un-
less specified otherwise, always fasten using cable ties.
Mount the fuel line and wiring harness with rub protection on sharp edges.
WARNING!

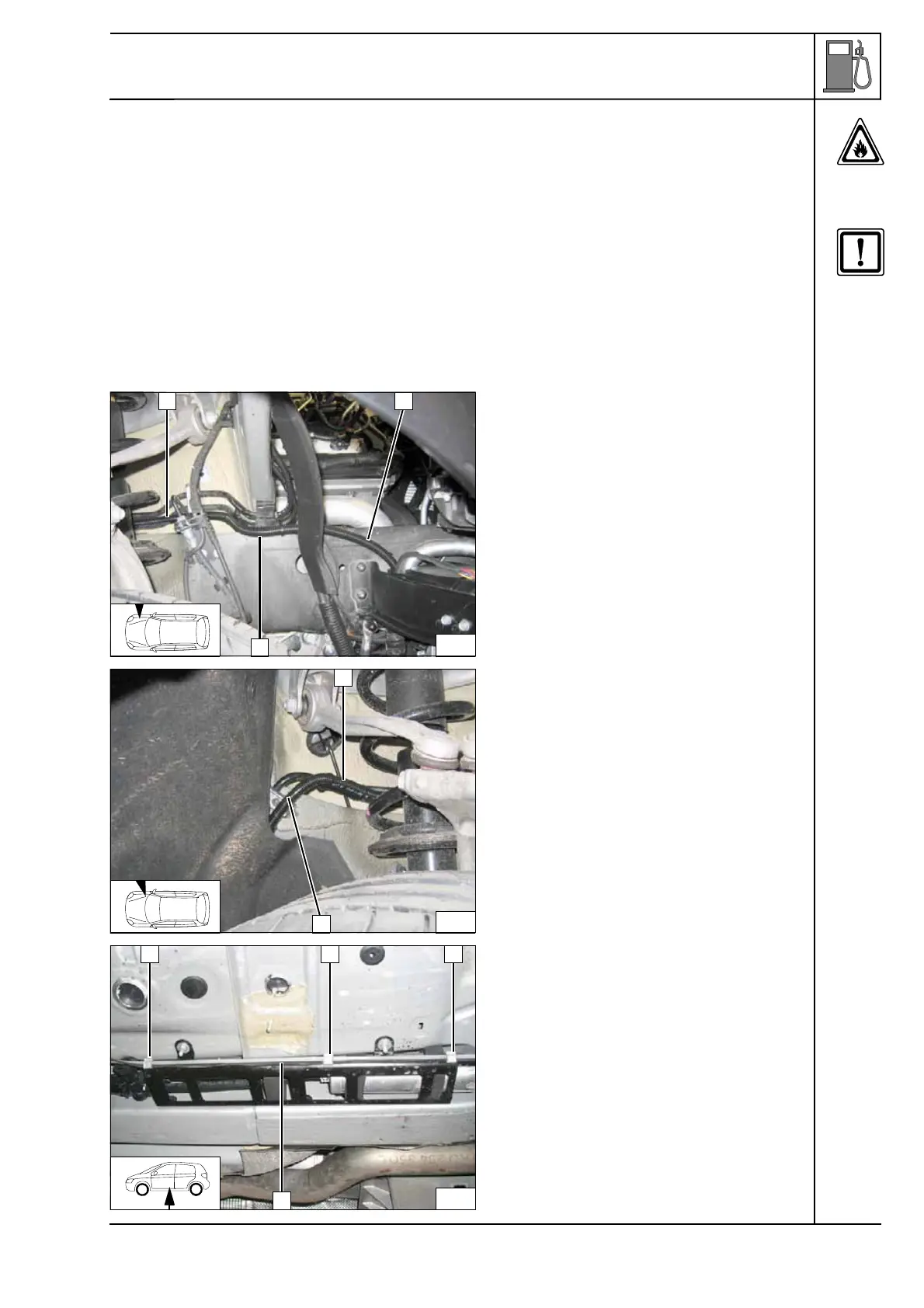

The fuel line and wiring harness are routed to the metering pump as shown in the wiring harness rout-
ing diagram.
1 Wiring harness of metering pump and fuel
line in corrugated tube
Installing
lines
1
Wiring harness of metering pump and fuel
line in corrugated tube
Installing
lines
1
Clamping bracket [3x]
2 Fuel line, wiring harness of metering pump
Installing
lines
34
1
1
1
35
1
1
36
1 1 1
2
