Webasto Thermo Top C Installation

Audi A4 / A5
Ident. No.: 1313525D_EN Status: 25.09.2012 © Webasto Thermo & Comfort SE
21

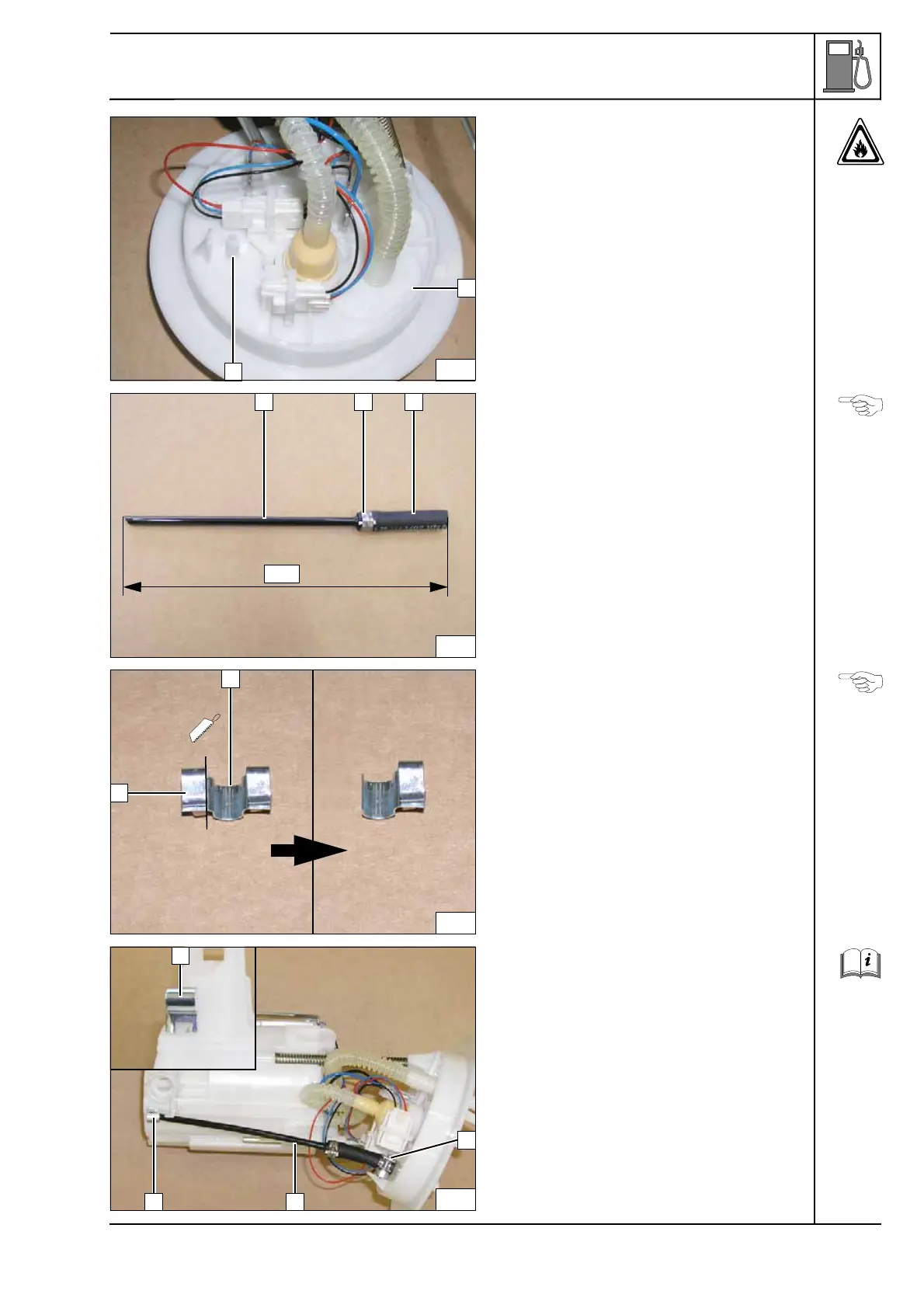

Remove fuel-tank sending unit 1 according to
manufacturer's instructions. Drill out connec-
tion piece
2 in centre to 2.0mm dia.
Fuel ex-
traction
Mount standpipe 1 in hose section 3 and fas-
ten with 10 mm Caillau clamp
1 (between
beads).
Cut standpipe
1 to length at the end at an an-
gle.
Preparing
fuel stand-
pipe
Cut off retaining clamp 1 at marking.
2 Discard section
Cutting re-
taining
clamp to
length
Note
The installation of the retaining clamp de-
pends on the equipment and is not possible
with all fuel-tank sending units.
Mount retaining clamp
1 on fuel-tank sending
unit.
2 10 mm dia. clamp
3 Prepared fuel standpipe
Installing
fuel stand-
pipe
37
2
1
38
1 2 3
185
39
1
2
40
2
3
1
1
