Webasto Thermo Top C Installation

Audi A4 / A5
Ident. No.: 1313525D_EN Status: 25.09.2012 © Webasto Thermo & Comfort SE
22

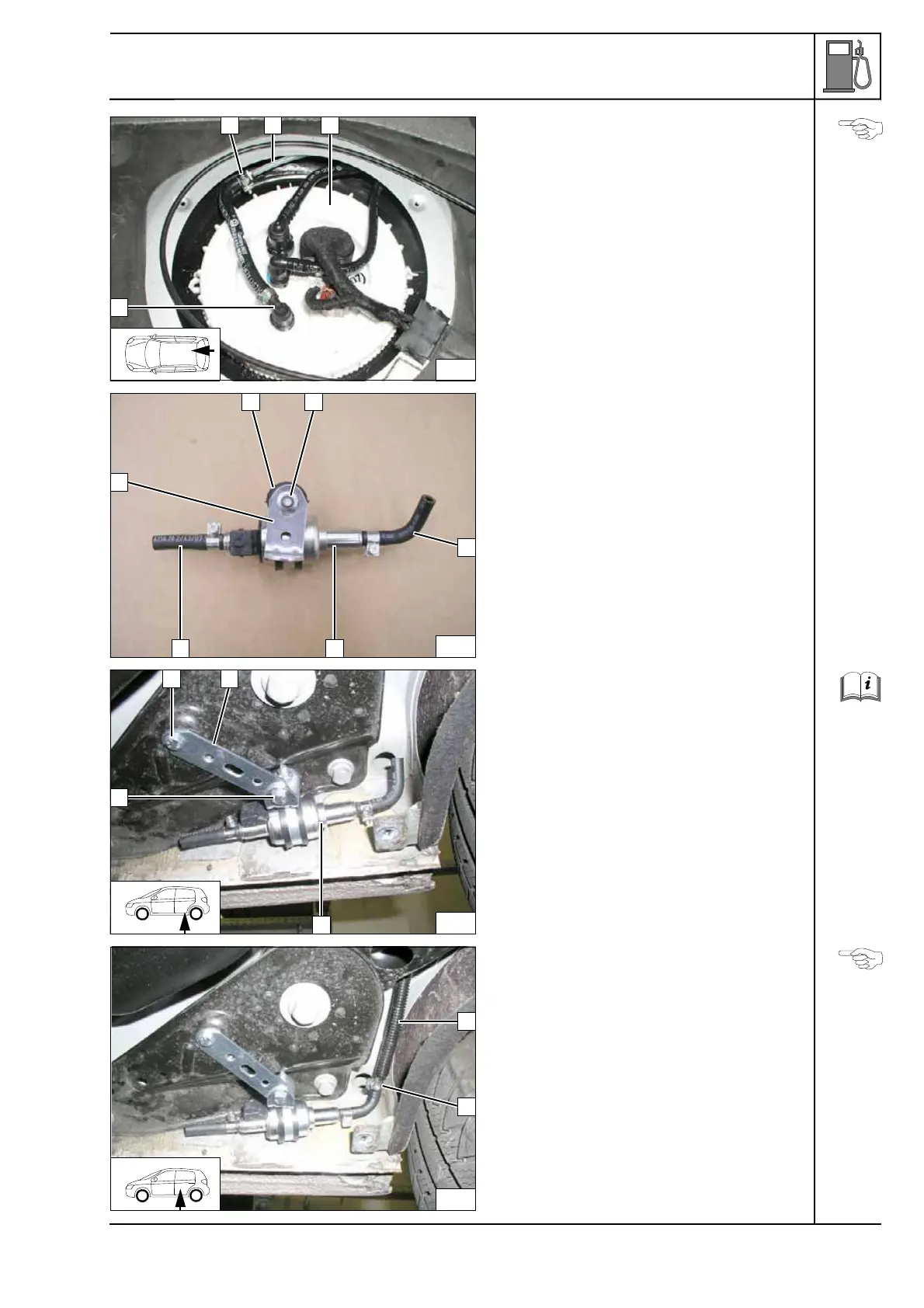

Install fuel-tank sending unit 3 in accordance
with manufacturer's instructions. Mount
quick-release coupling
4 on connection
piece.
1 10 mm dia. clamp
2 Fuel line
Connect-
ing fuel
line
1
Silent block
2 Flanged nut
3 90° moulded hose, 10 mm dia. clamp
4 Metering pump
5 Hose section, 10 mm dia. clamp
6 Angle bracket
Premount-
ing meter-
ing pump
1
Mount M6x20 bolt, flanged nut in existing
hole
2 Perforated bracket
3 Premounted metering pump
4 M6x20 bolt, flanged nut on angle bracket
Installing
metering
pump
Cut corrugated tube in middle. Slide one end
onto the fuel line to the fuel standpipe and the
other end onto the fuel line to the heater and
the wiring harness of the metering pump.
1 Fuel line in corrugated tube
2 10 mm dia. clamp
Connect-
ing meter-
ing pump
41
1 2 3
4
42
3
1 2
4
6
5
43
1 2
4
3
44
1
2
