Webasto Thermo Top C Installation

Audi A4 / A5
Ident. No.: 1313525D_EN Status: 25.09.2012 © Webasto Thermo & Comfort SE
23
Check the position of the components; adjust
if necessary. Check that they have freedom of
movement.

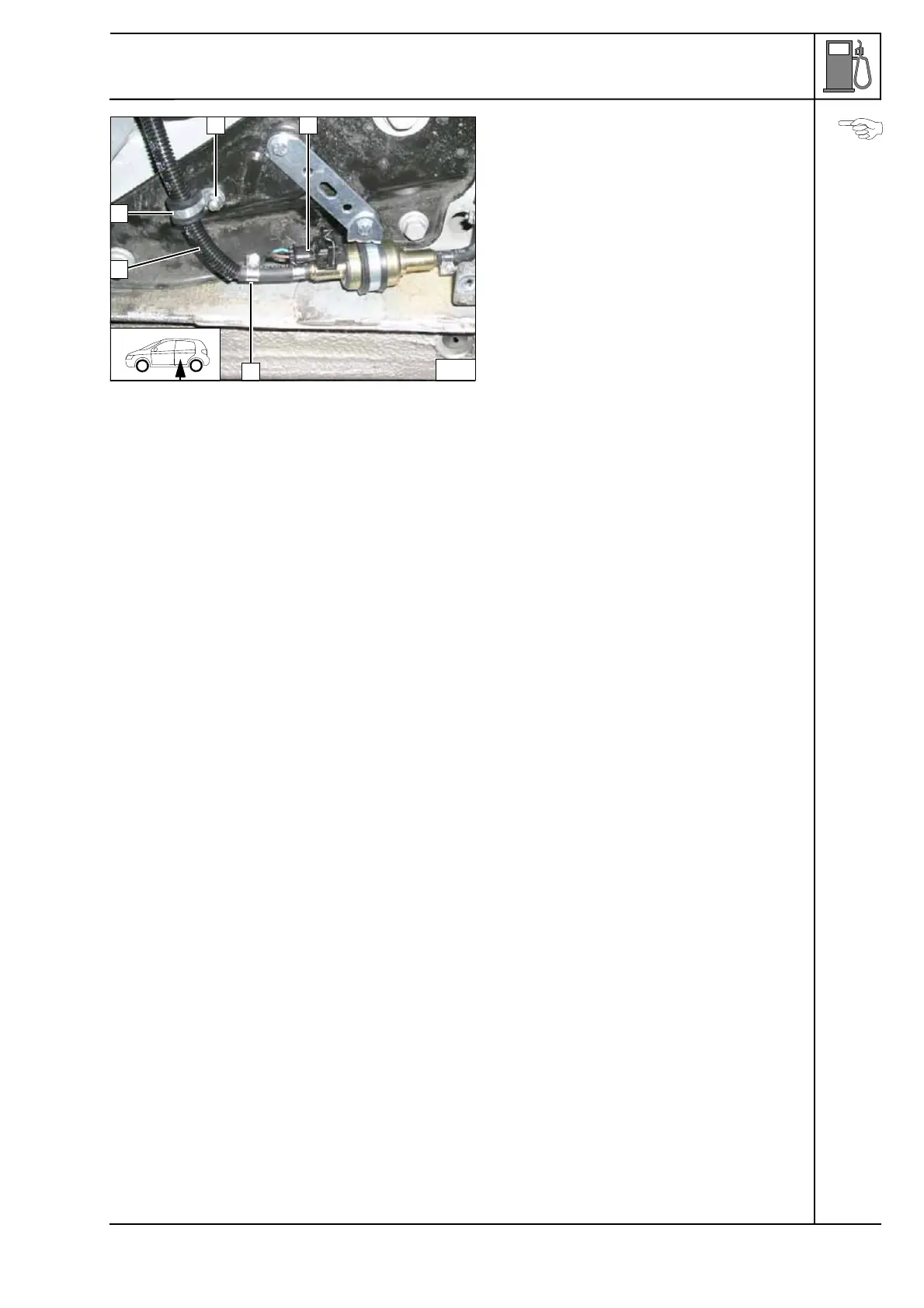

1 Mount M6x20 bolt, flanged nut in existing
hole
2 Wiring harness of metering pump, connec-
tor mounted
3 10 mm dia. clamp
4 Fuel line and wiring harness for metering
pump in corrugated tube
5 15 mm dia. rubber-coated p-clamp
Connect-
ing meter-
ing pump
45
1 2
5
4
3
