Webasto Thermo Top C Installation

Audi A4 / A5
Ident. No.: 1313525D_EN Status: 25.09.2012 © Webasto Thermo & Comfort SE
15

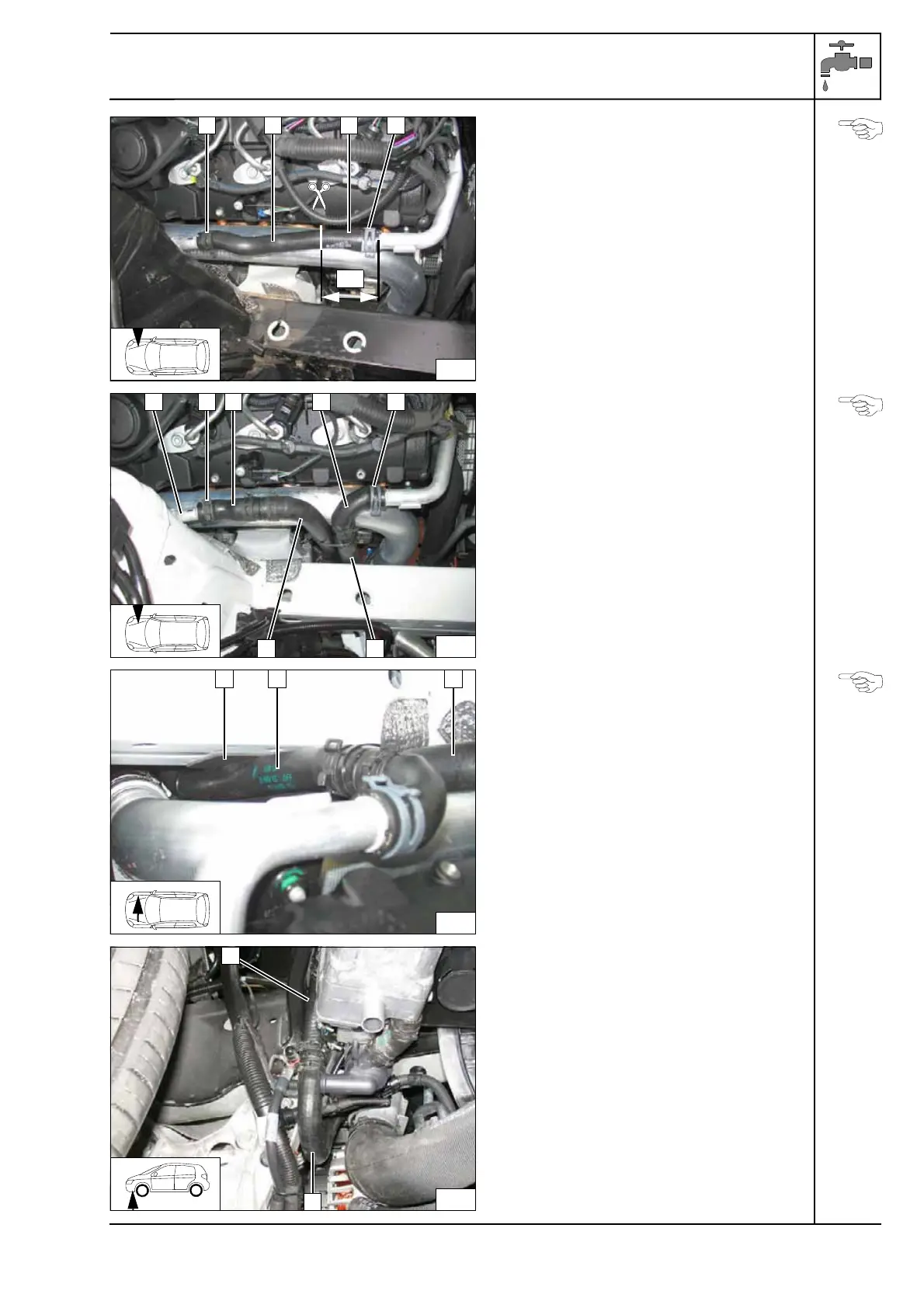

Remove hose section on heat exchanger out-
let
2 and discard. Spring clip 1 will be reinsert-
ed. Hose section of engine inlet
3 and spring
clip
4 will be remounted.
Cutting
point
Install hose section of engine inlet 3 with 16mm
dia. onto pipe of heat exchanger outlet
1 .
2 Original vehicle spring clip [2x]
Connect-
ing to en-
gine inlet
and heat
exchanger
outlet
Insert insulation protection strips 1 between
hoses and frame side member.
Routing in
engine
compart-
ment
Connect-
ing heater
outlet
21
42 3
80
1
22
23 F2
A
1
E
23
E1 A
24
D
E
