WEBTEC HPM - Page 21

88 V2.0/02.11
Connectingthesensors/displayfunctions

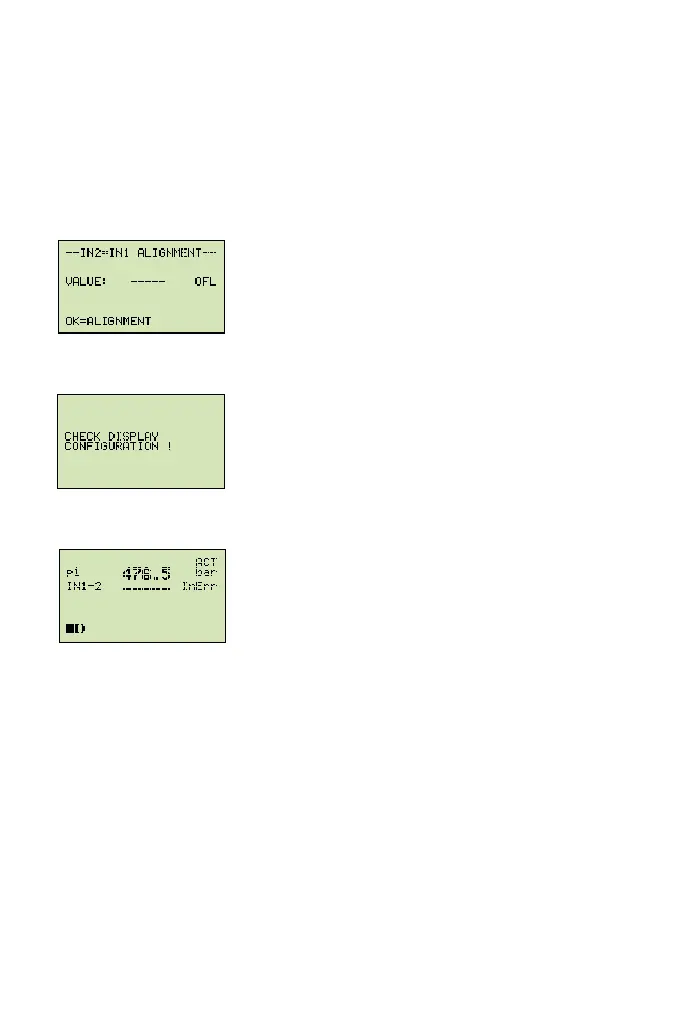

ThreeerrormessagesarepossibleforIN1=IN2:
1 Alignmentvaluesexceedthepermissibletolerance:
- For sensors with automatic sensor recognition, 5 % of the upper
range value (FS)
- For auxiliary sensors, 10 % of the upper range value (FS)
2 IN1-IN2isnotcongured(DISP-LINE):
3 Measuredvariablesarenotthesame(IN1=bar/IN2=L/min)
