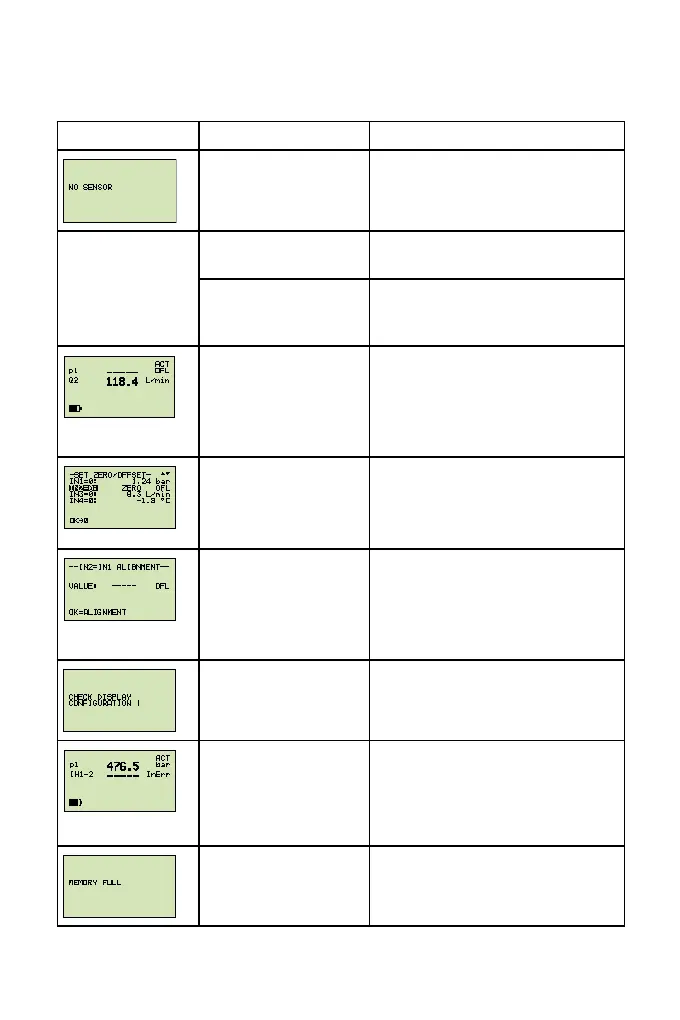

5.8 Errormessages/warnings
Display Description Whatactiontotake?
No sensor is con-
nected
Turn off the measuring instrument
Connect sensor
Turn on the measuring instrument
%
An auxiliary sensor is
connected.
Carry out settings in the menu
SET- AUX.SENSOR
Sensor recognition in-
terrupted (cable break
or input defect)
Send measuring instrument,
sensor and connection cable to
Webtec.
Measurement range
overow
The measured pres-
sure is outside of the
measurement range
Release pressure from the system
Use sensor with wider measure-
ment range
Overow ZERO
The zero point offset
value exceeds the
tolerance
Check only when no pressure is
applied
Overow IN1 = IN2
Differential value
alignment
The alignment value
exceeds the tolerance
Test system pressure
Use sensors with wider measure-
ment range
DISP LINE IN1 = IN2
Wrong setting
Congure IN1-IN2
Overow IN1 - IN2:
Differential value
alignment
Measured variables (sensors)
must be the same
IN1 / IN2 = bar
IN1 / IN2 = L/min
IN1 / IN2 = °C
Measured value
memory full
Download measured values to PC
Delete measured value memory
