| Regulador Automático de Tensão - GRT7-TH4E / GRT7-TH4PE
44
2. CONNECTION WITHOUT AUXILIAR COIL @ SHUNT – 12 LEADS /
CONEXÍON SIN BOBINA AUXILIAR @ SHUNT – 12 CABLES /
CONEXÃO SEM BOBINA AUXILIAR @ SHUNT

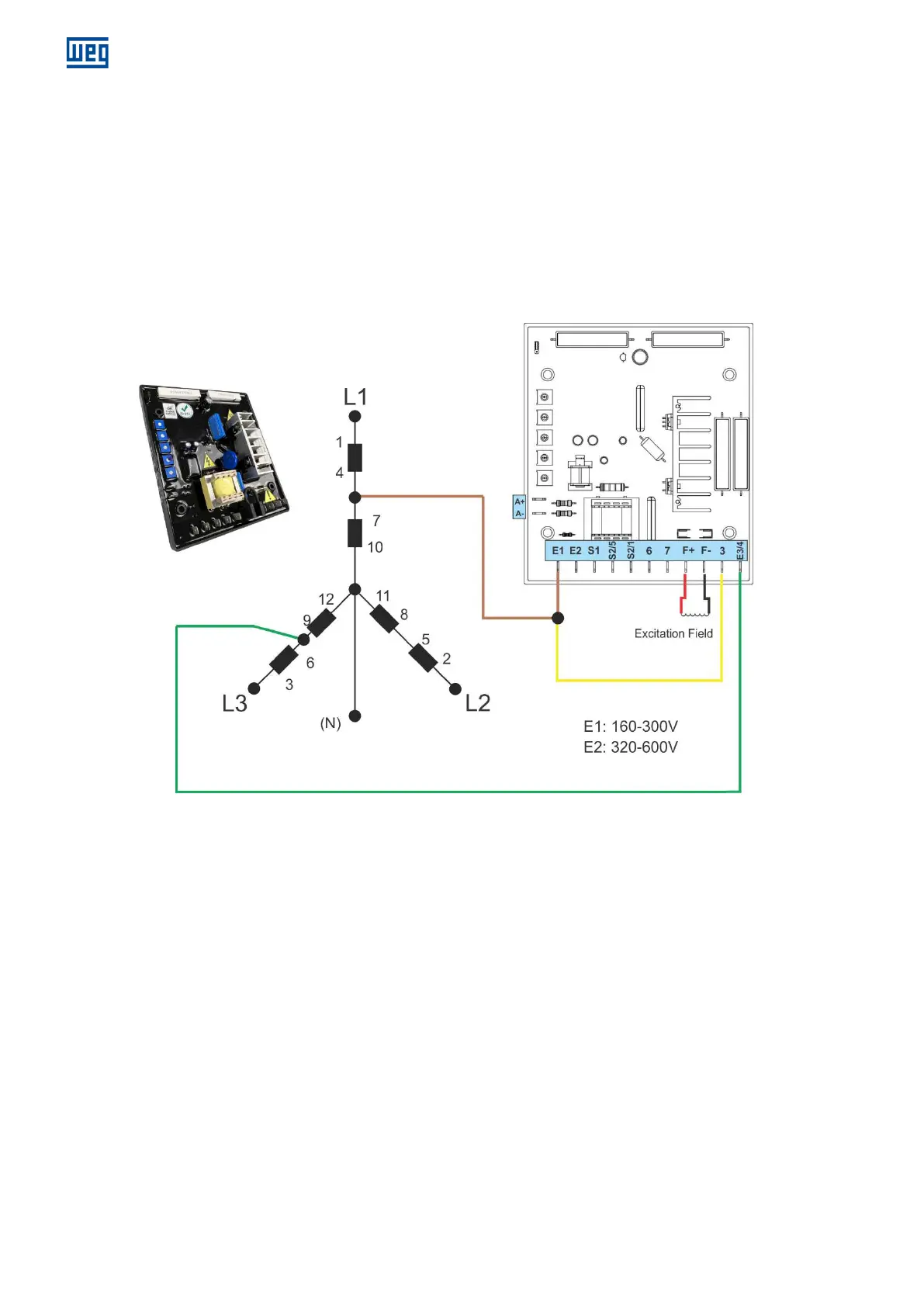

2.1 STAR SERIES CONNECTION – 12 LEADS (380-400-415V@50Hz_380-416-440-
480V@60Hz)
CONEXÍON ESTRELLA SERIE – 12 CABLES (380-400-415V@50Hz_380-416-440-
480V@60Hz)
CONEXÃO ESTRELA SÉRIE – 12 CABOS (380-400-415V@50Hz_380-416-440-
480V@60Hz)
