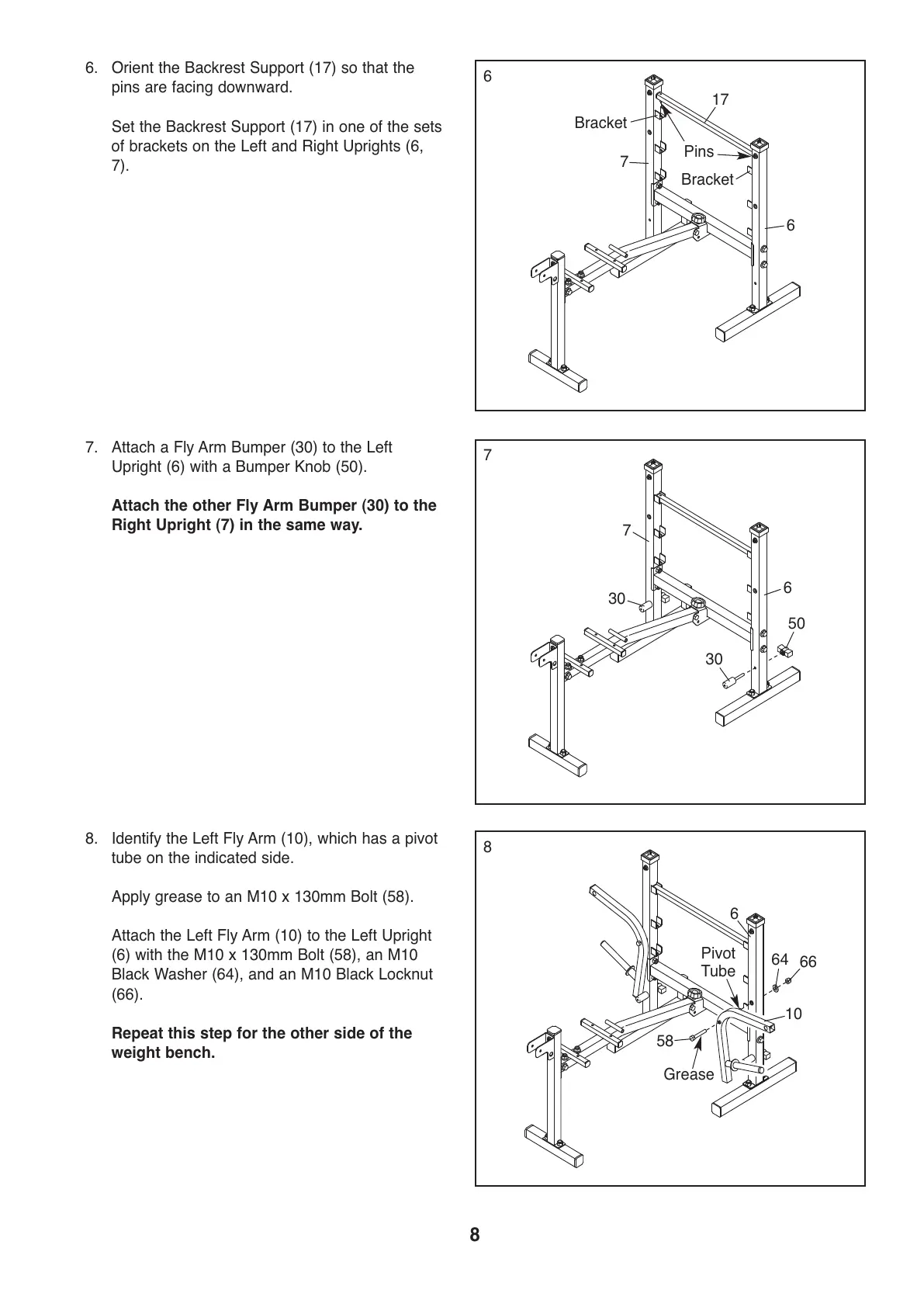

6. Orient the Backrest Support (17) so that the
p
ins are facing downward.
Set the Backrest Support (17) in one of the sets
of brackets on the Left and Right Uprights (6,
7).
7. Attach a Fly Arm Bumper (30) to the Left
Upright (6) with a Bumper Knob (50).
Attach the other Fly Arm Bumper (30) to the
Right Upright (7) in the same way.
8. Identify the Left Fly Arm (10), which has a pivot
tube on the indicated side.
Apply grease to an M10 x 130mm Bolt (58).
Attach the Left Fly Arm (10) to the Left Upright
(6) with the M10 x 130mm Bolt (58), an M10
Black Washer (64), and an M10 Black Locknut
(66).
Repeat this step for the other side of the
weight bench.
7
8
50
30
30
6
7
64
10
58
Pivot
Tube
Grease
6
66
