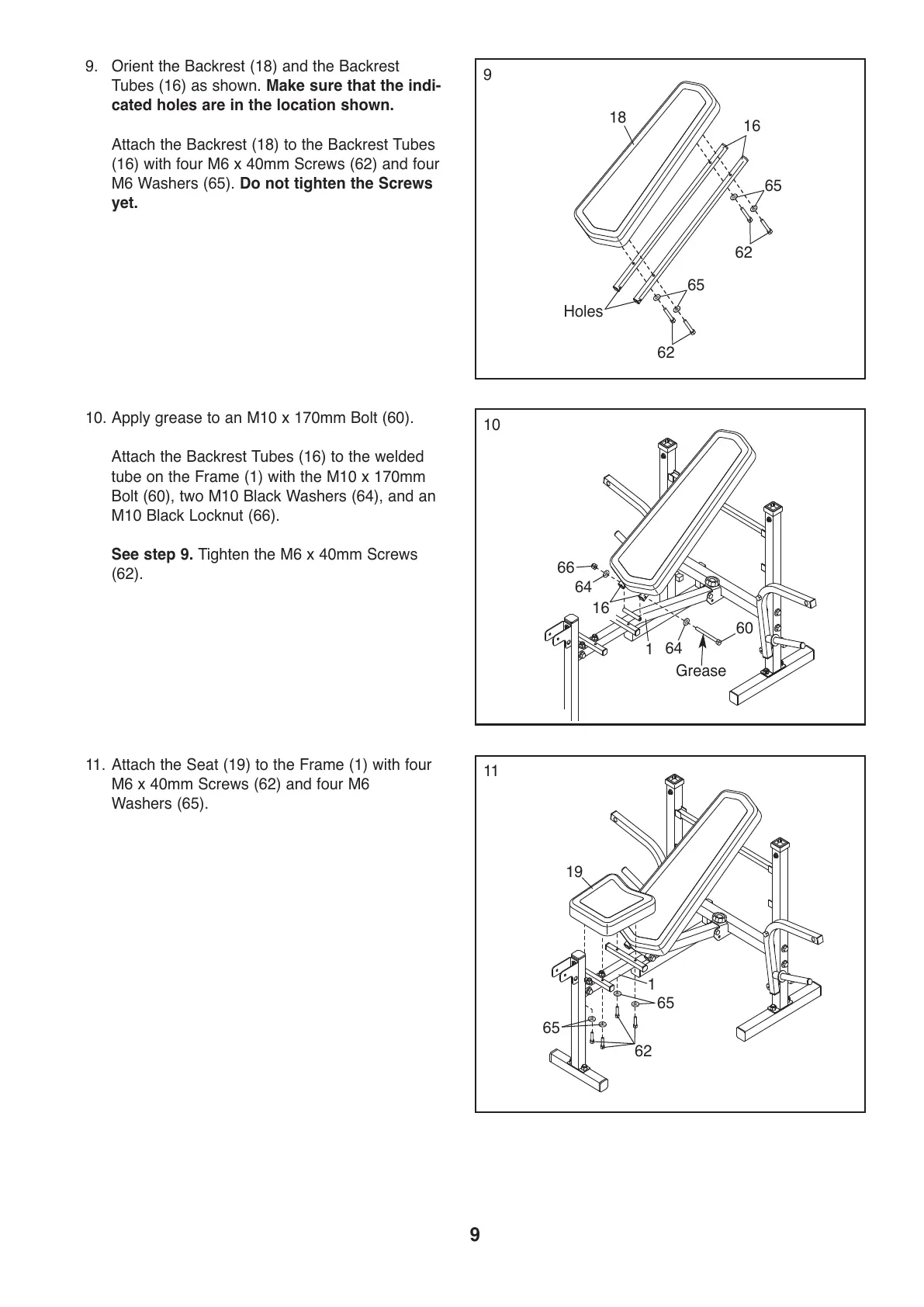

9. Orient the Backrest (18) and the Backrest
Tubes (16) as shown. Make sure that the indi-
cated holes are in the location shown.
Attach the Backrest (18) to the Backrest Tubes
(
16) with four M6 x 40mm Screws (62) and four
M6 Washers (65). Do not tighten the Screws
yet.
9
1
8
Holes
16
62
62
65
10. Apply grease to an M10 x 170mm Bolt (60).
Attach the Backrest Tubes (16) to the welded
tube on the Frame (1) with the M10 x 170mm
Bolt (60), two M10 Black Washers (64), and an
M10 Black Locknut (66).
See step 9. Tighten the M6 x 40mm Screws
(62).
60
Grease
64
64
66
16
1
10
11. Attach the Seat (19) to the Frame (1) with four
M6 x 40mm Screws (62) and four M6
Washers (65).
11
1
65
65
62
19
65
