Weidmüller PrintJet ADVANCED - Mapping and Calibrating the Printer

Operation
82 1449820000/1.4/04.17
5.2.2 Mapping and calibrating the printer
A printer must be assigned for each MultiCard type, e.g. DEK 5/5.
Calibration must be carried out once for the printer, as this is a printer-specific zero point.
Assigning a printer

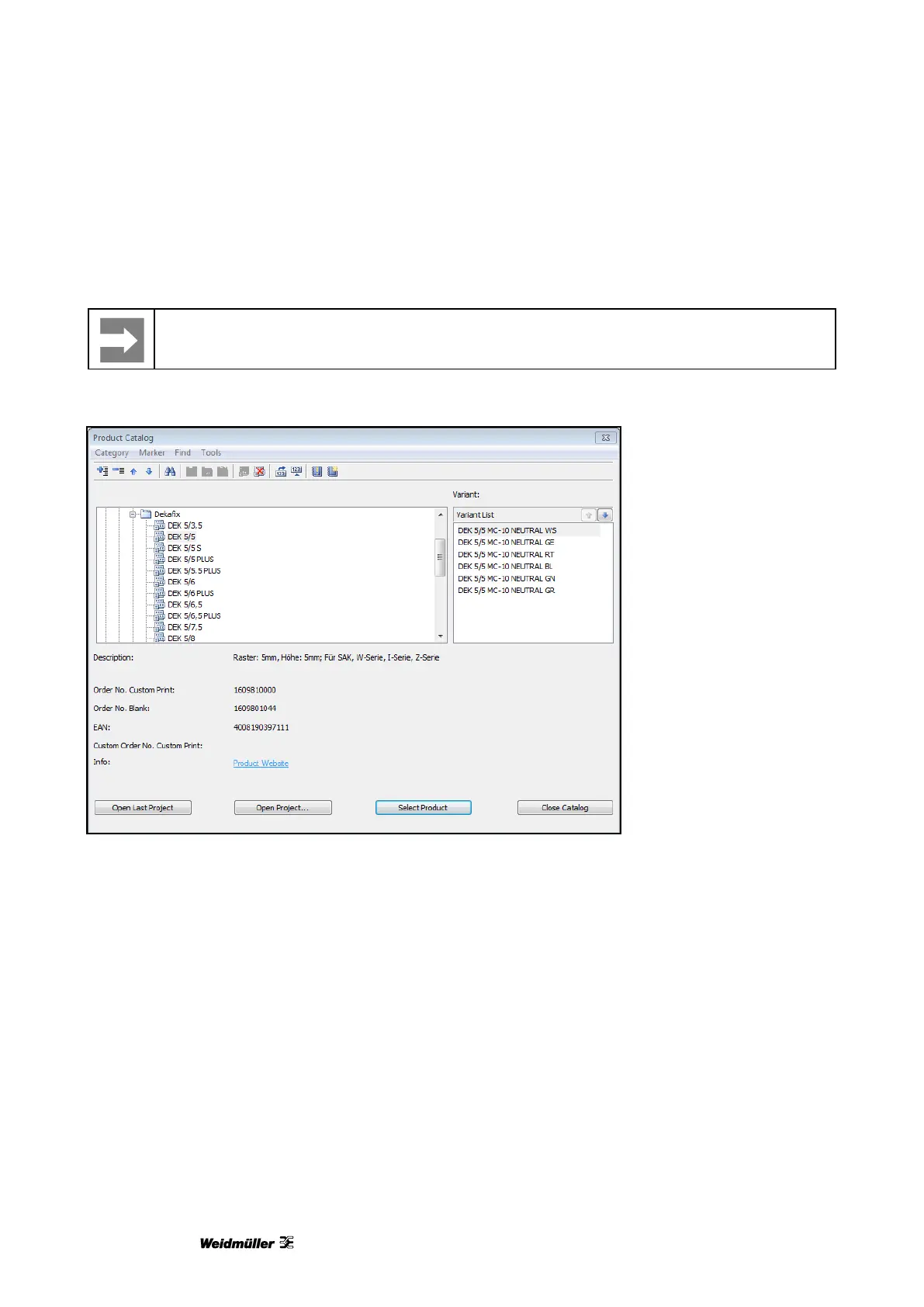

Figure 93 Selecting a MultiCard
1 Choose e.g. MultiCard → Terminal Markers.
2 Select the DEK 5/5 MC-10 NEUTRAL WS MultiCard.
3 Press the [Select Product] button.
4 From the menu bar choose File → Print.
