Weidmüller PrintJet ADVANCED - Page 83

Operation
1449820000/1.4/04.17 83

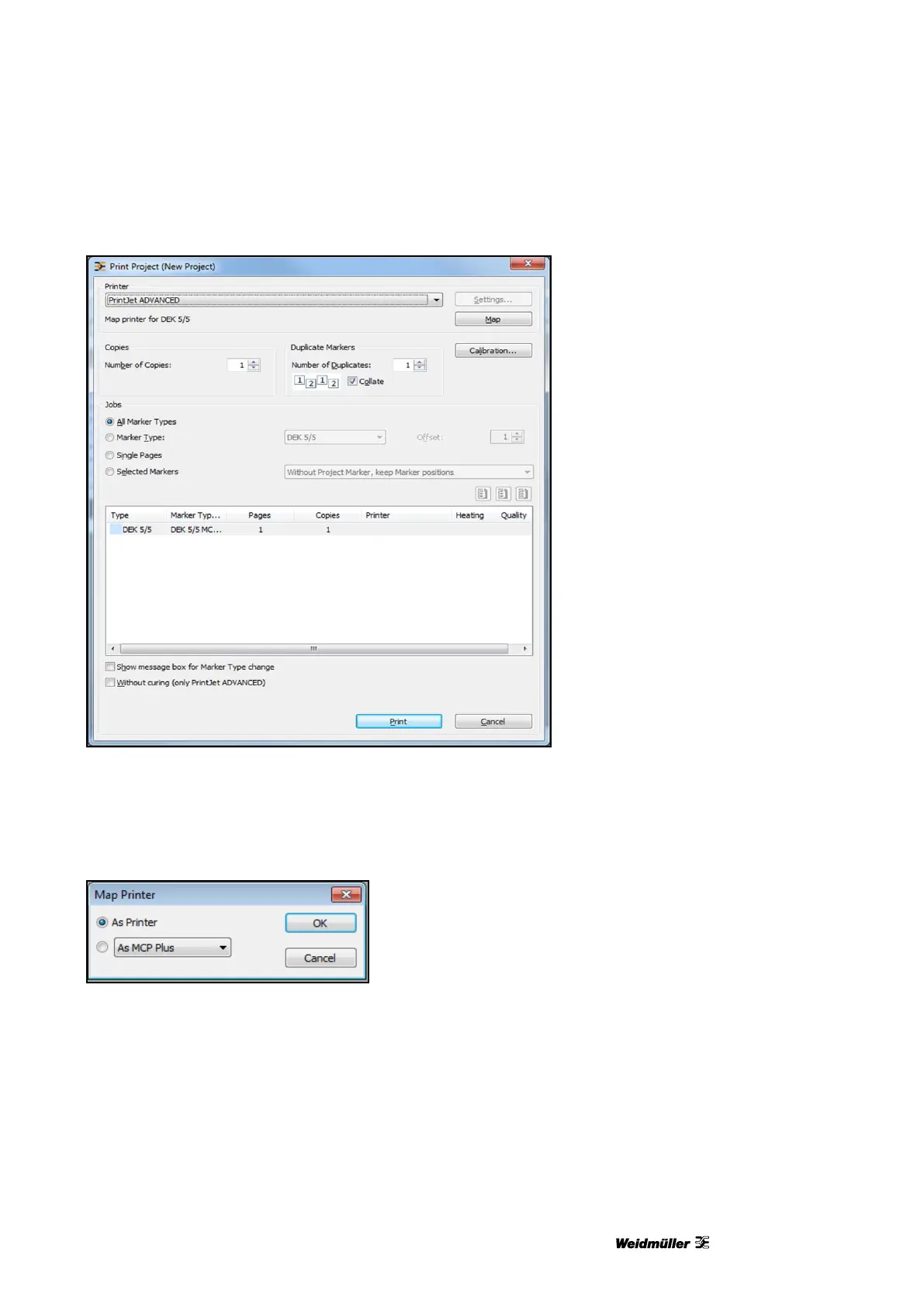

Figure 94 Selecting the printer
5 Select the PrintJet ADVANCED printer that has been added.
6 Press the [Map] button.
Figure 95 Mapping the printer
7 In the dialog box that follows choose ‛As Printer’ and confirm this with the [OK] button.
