Weidmüller PrintJet ADVANCED - Page 84

Operation
84 1449820000/1.4/04.17

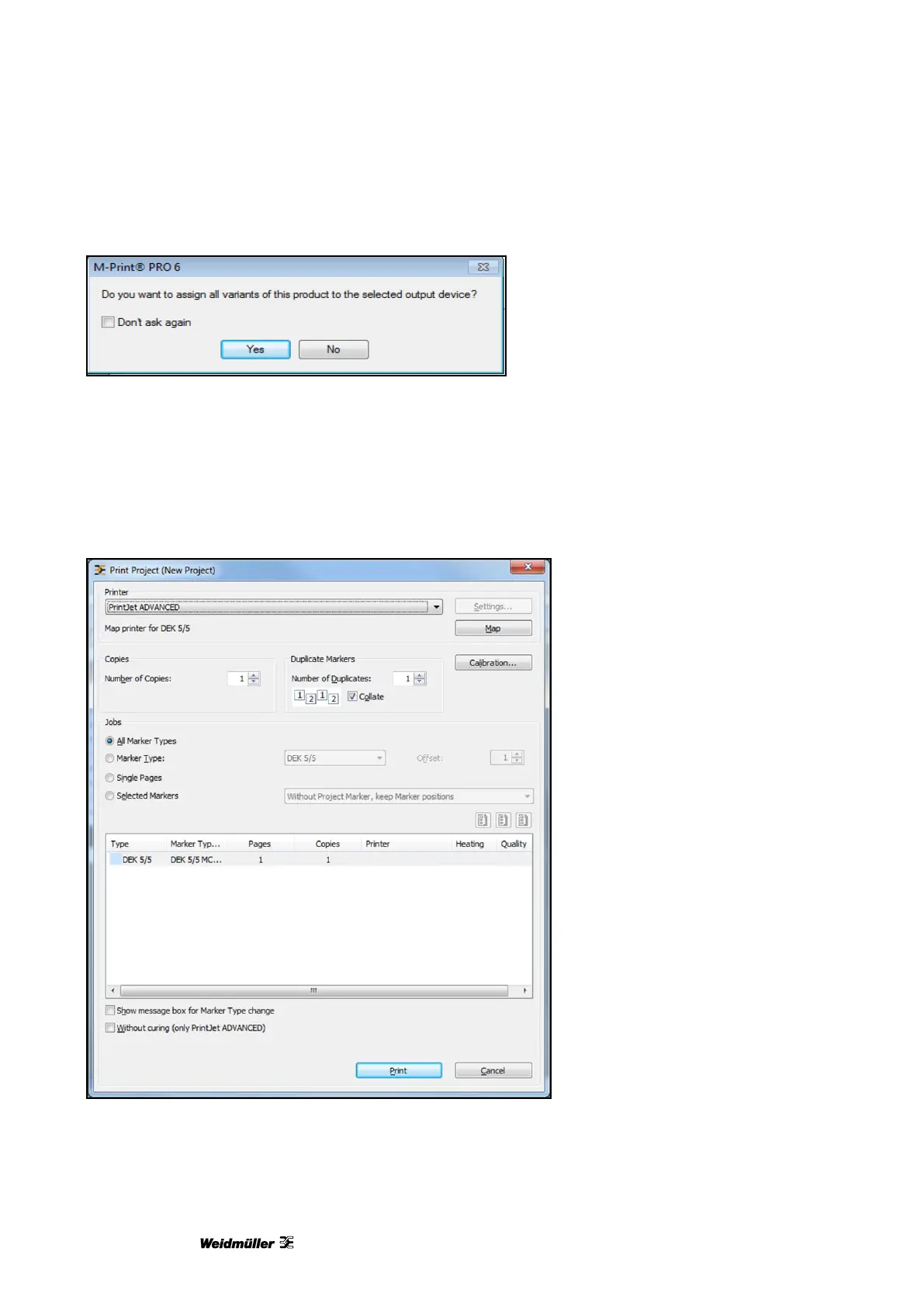

Figure 96 Assigning variants to the printer
8 In this dialog box choose whether you want to assign all variants of the DEK 5/5 MultiCard to this printer.
If you press the [Yes] button, all versions of the MultiCard type DEK 5/5 are assigned to the
PrintJet ADVANCED and are always output on this printer unless this setting is changed.
Printer calibration
Figure 97 Calibration
9 Now click on the [Calibration…] button to determine the print position for the printer.
