Instructions for Assembly
Item number 116519-0000 Subject to technical modifications
Version 4 23.04.2014 Page 23/47
Cassita II/Cassita II LED
5.4 Rafter bracket installation
5.4.1 Safety notes
Damage to the product
Beware of non-supporting wooden installation surfaces.
Before beginning the installation work, check that the wooden installation surface can
support the structure. This surface may vary in strength, type of wood, grain, age of
wood, etc.
Check that the C2 plate dowels supplied are suitable for use at the site of installation:
C24 coniferous wood
The duration of load effect is classified as "short"
The angle between the direction of force and the direction of the wood grain is 0°
Recommended minimum wood thickness t
re,q
= 70 mm
The rafters used to install the awning must not be interrupted, e.g. by the use of roof windows,
dormer windows, etc.
In the event of deviating installation surfaces or fundamental conditions, the fixings must be
constructed in accordance with the specifications of DIN 1052: Design, Calculation and
Dimensioning of Wood Structures, or a lower wind resistance class must be specified for the
awning as appropriate for the installation.
Do not install on end grain wood.
Ensure that the fixings are amply protected against corrosion.
The spacing shown in Figure 2, Minimum dimensions on the rafter bracket, also apply
when installing using the mounting plate for the rafter bracket.

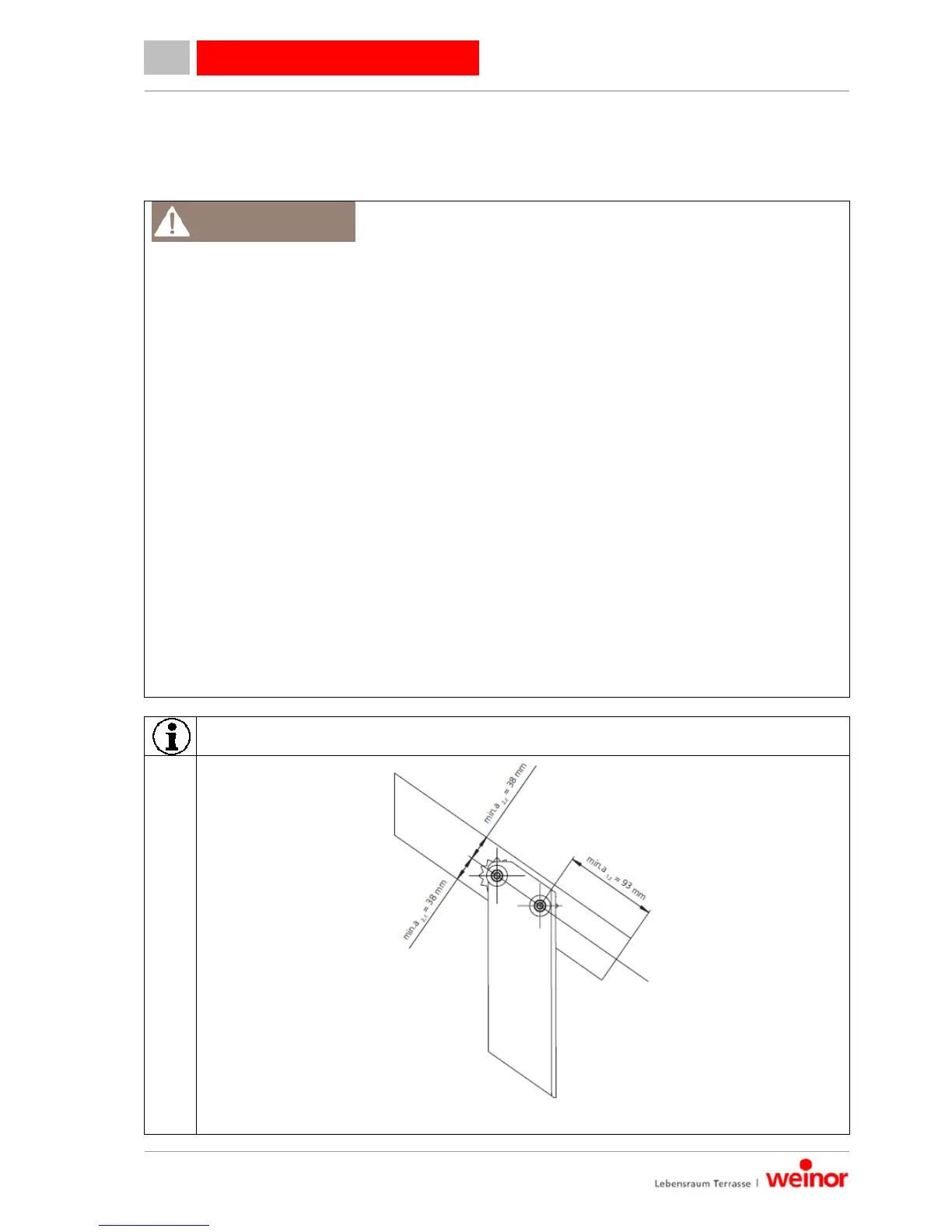

Figure 2: Minimum dimensions on the rafter bracket
CAUTION
