Instructions for Assembly
Item number 116519-0000 Subject to technical modifications
Version 4 23.04.2014 Page 26/47
Cassita II/Cassita II LED

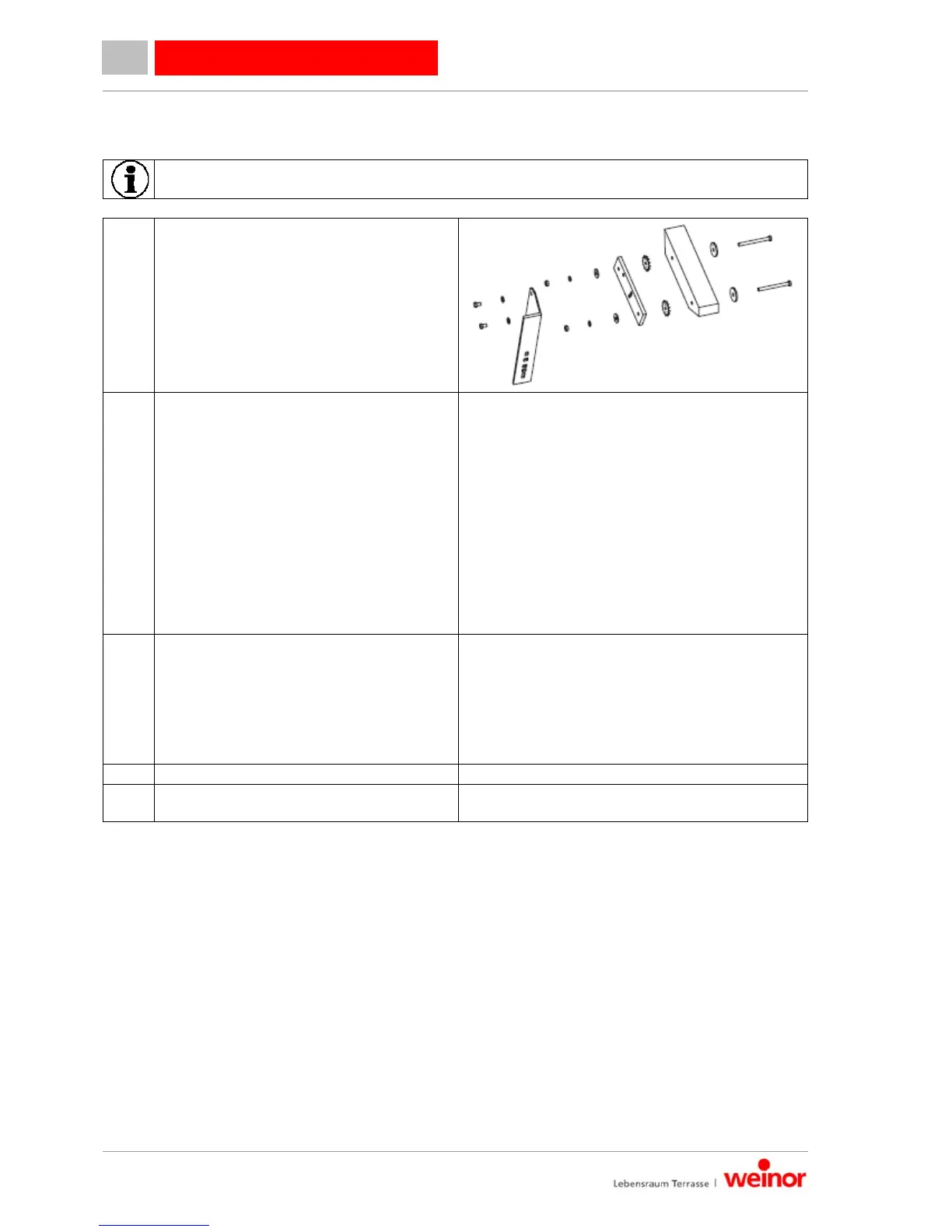

5.4.3 Fit the rafter bracket with mounting plate
We recommend using the mounting plate to fit the rafter brackets as it provides for a
better shear force transfer.
1. Fit the rafter bracket
1. Screw the rafter bracket to the
mounting plate taking the roof pitch
into account.
2. Align the mounting plate to the rafter
and mark where the two holes
should be drilled. Make sure the
required minimum distance from the
edge of the rafter is kept. Drill the
two ≤ Ø13 mm through holes.
3. Push in the C2 plate dowels
together with the screws and the
shims. As you do this, ensure that
you do not bend the teeth on the
plate dowels.
4. Fit the rafter bracket with mounting
plate to the rafter.
2. Mount the wall bracket
1. Screw the wall bracket to the rafter
bracket.
2. Align the spacing according to the
width of the awning.
3. Attach the awning
4. Mount the clamp parts on the wall
bracket
