Instructions for Assembly
Item number 116519-0000 Subject to technical modifications
Version 4 23.04.2014 Page 13/47
Cassita II/Cassita II LED
5.2 Wall mounting
5.2.1 Wall mounting using a 150 mm wall bracket

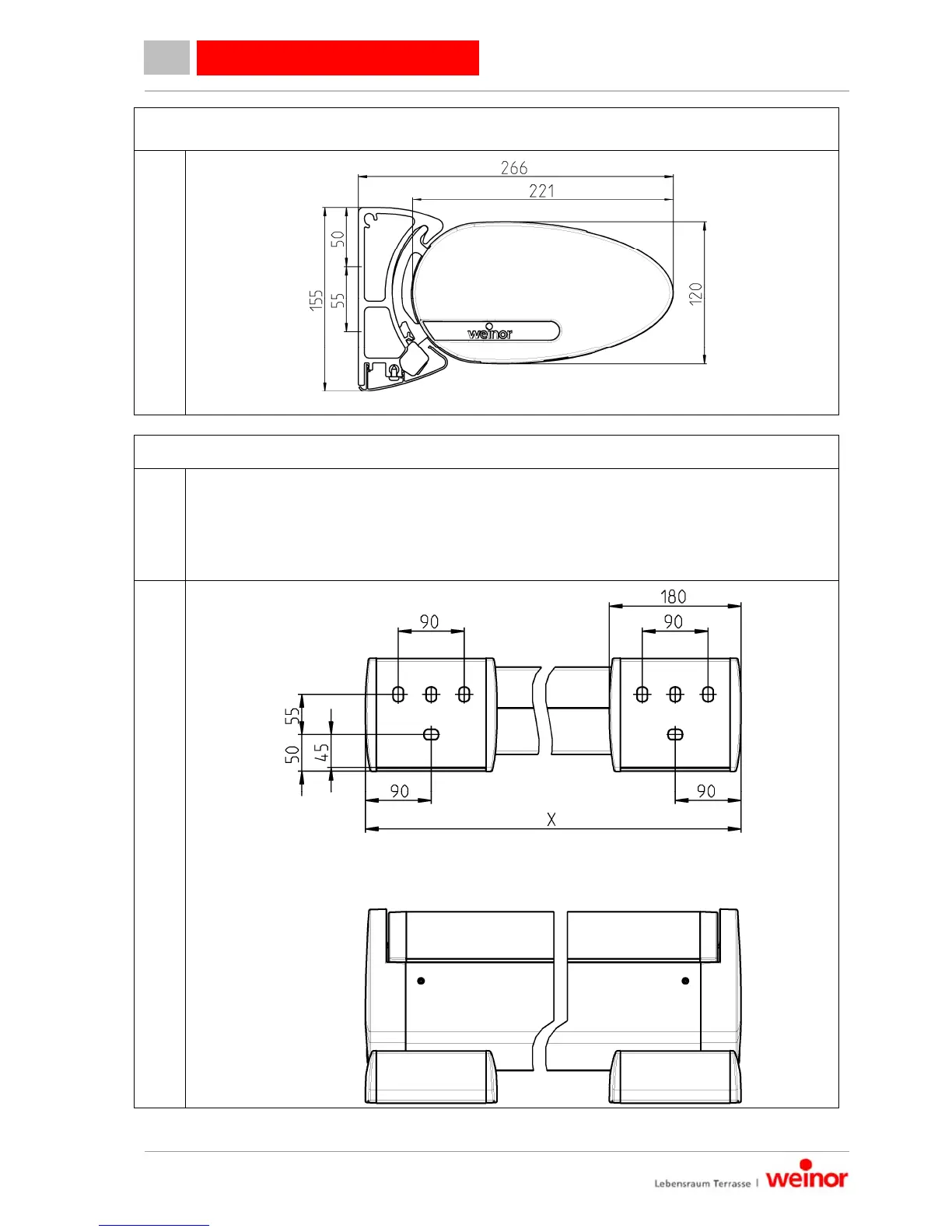

1. Fit wall brackets
1. Refer to the awning delivery note for the system width (X).
2. The system width (X) of 180 mm equates to the centred spacing of the brackets.
Brackets can be indented by 100 mm; align brackets exactly using suitable tools/aids
(e.g. mason's cord) and a spirit level.
