Instructions for Assembly
Item number 116519-0000 Subject to technical modifications
Version 4 23.04.2014 Page 14/47
Cassita II/Cassita II LED

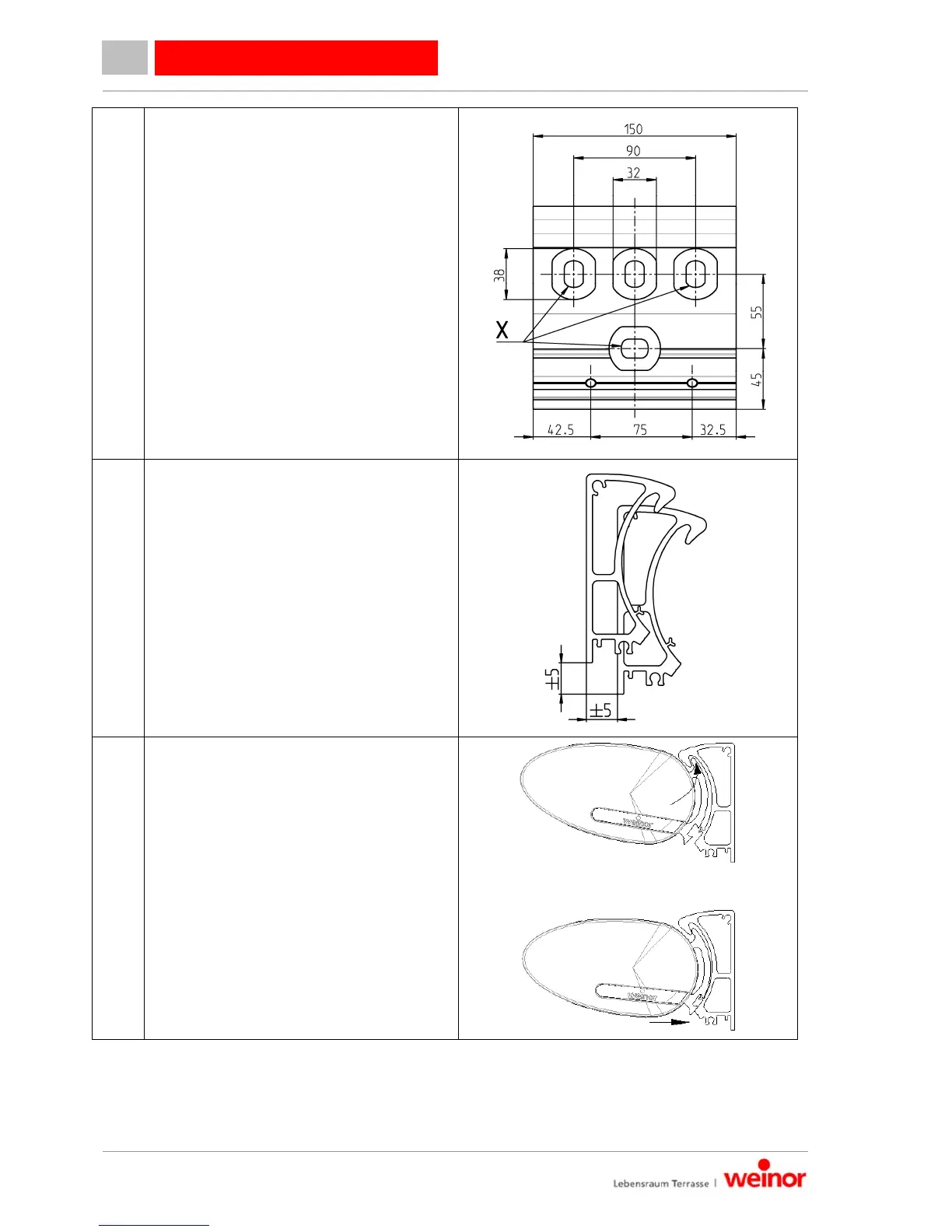

3. Mark holes to be drilled (X),
drill holes and mount brackets on
wall. Affix each bracket using 3
screws.
2. Check bracket alignment
1. Check that the brackets are fitted
flush
2. Check that the brackets are aligned to
the right height and depth; max.
permissible deviation (e.g. due to
ripples in the wall) ± 5 mm Shim
underneath if necessary.
3. Attach the awning
1. Screw the awning into the bracket
stud; the awning must rest on the
nose of the wall bracket.
To Next Page
