Instructions for Assembly
Item number 116519-0000 Subject to technical modifications
Version 4 23.04.2014 Page 15/47
Cassita II/Cassita II LED

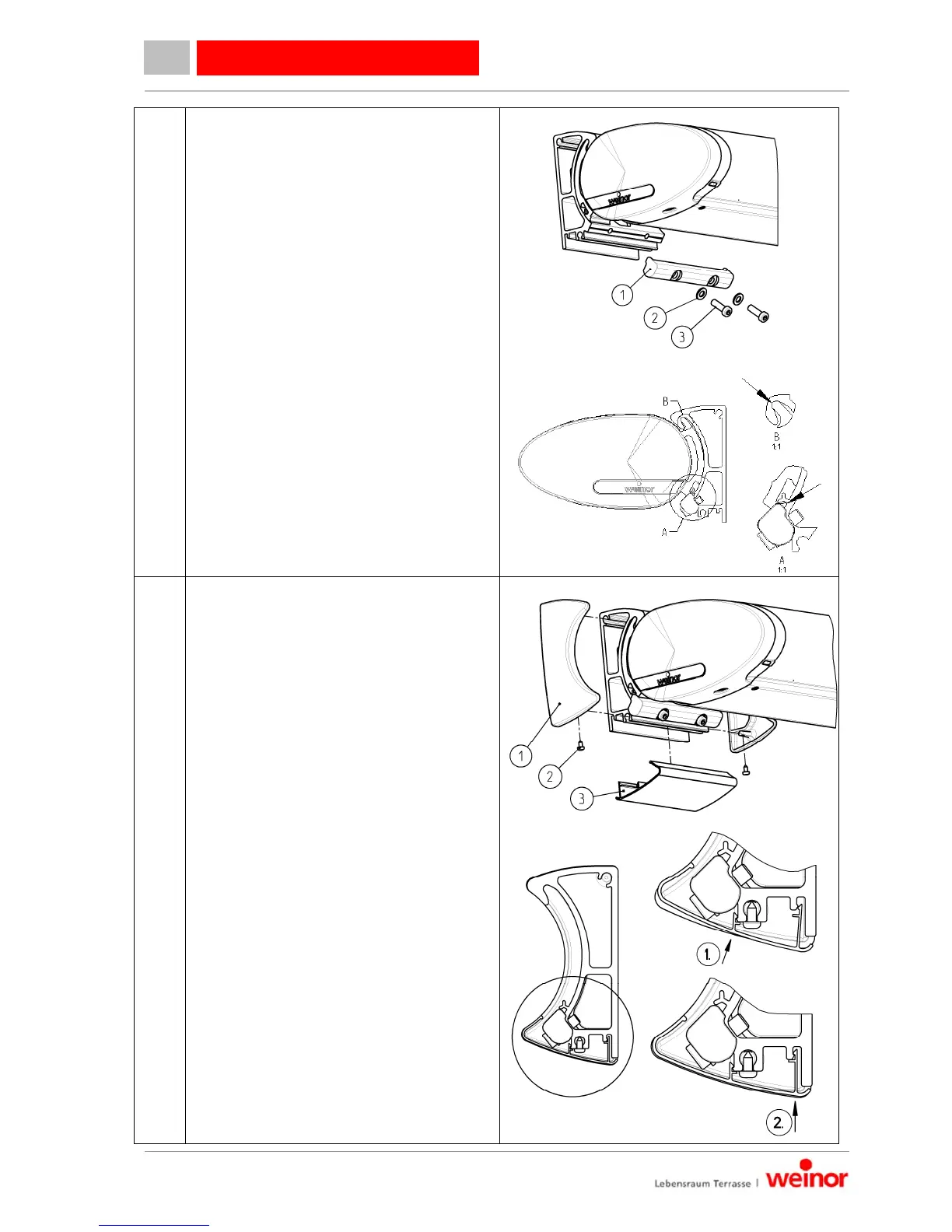

4.
Mount clamp part on wall bracket
1. Using the hexagonal socket head
screws (3) and shims (2), mount the
clamp part (1) on the wall bracket.
5.
Mount wall bracket cover caps and
wall bracket cover profile
1. Using the self-tapping screws (2),
attach the wall bracket cover caps (1)
to the wall bracket the right way
round.
2. Mount the cover profile wall bracket
(3) to the wall bracket.
