Instructions for Assembly
Item number 116519-0000 Subject to technical modifications
Version 4 23.04.2014 Page 24/47
Cassita II/Cassita II LED

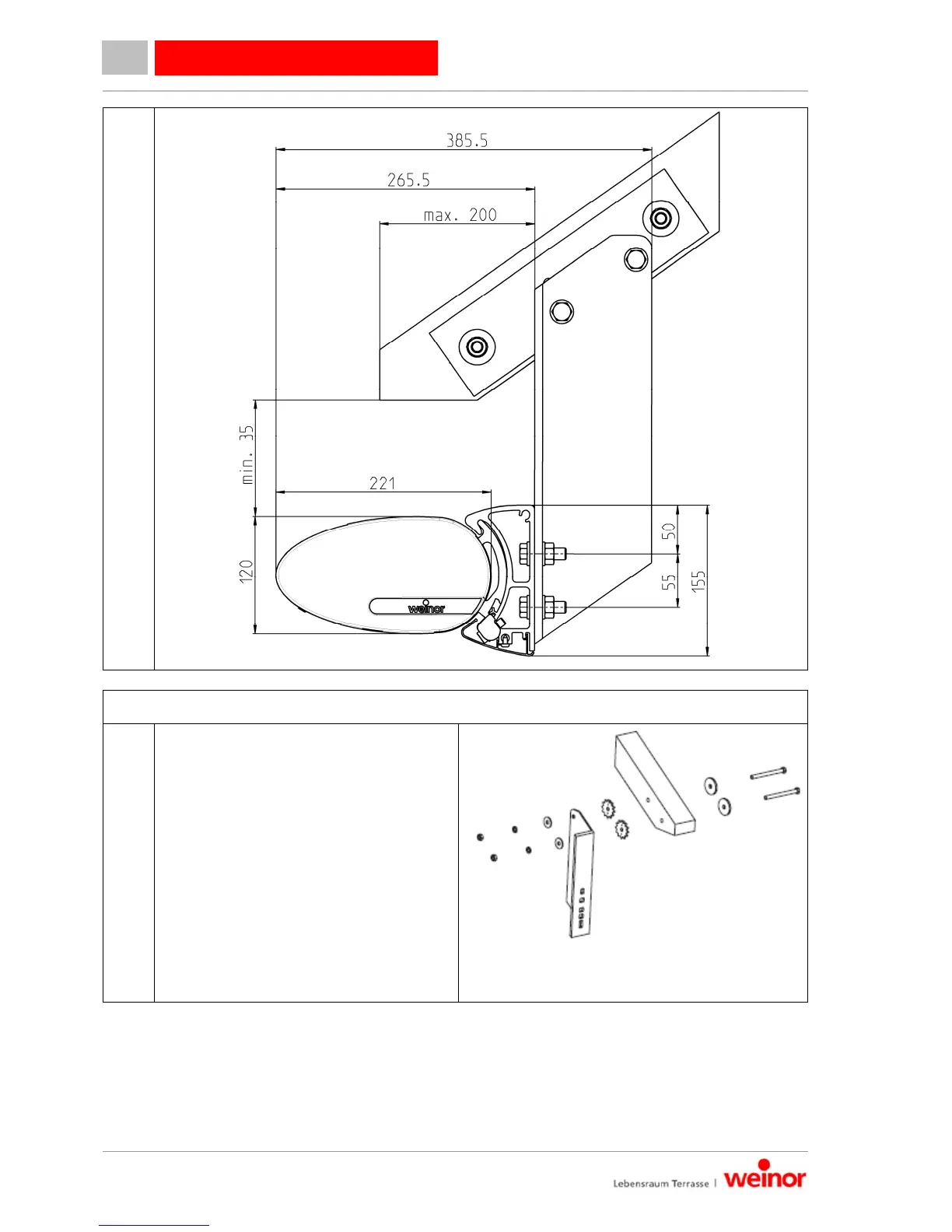

5.4.2 Fitting the rafter bracket without a mounting plate
1. Fit the rafter bracket
1. Align the rafter bracket to the rafter
and mark where the two holes
should be drilled.
2. Make sure the required minimum
distance from the edge of the rafter
is kept. Drill the two ≤ Ø13 mm
through holes.
3. Push in the C2 plate dowels
together with the screws and the
shims. As you do this, ensure that
you do not bend the teeth on the
plate dowels.
4. Fit the rafter bracket to the rafter.
