Instructions for Assembly
Item number 116519-0000 Subject to technical modifications
Version 4 23.04.2014 Page 16/47
Cassita II/Cassita II LED

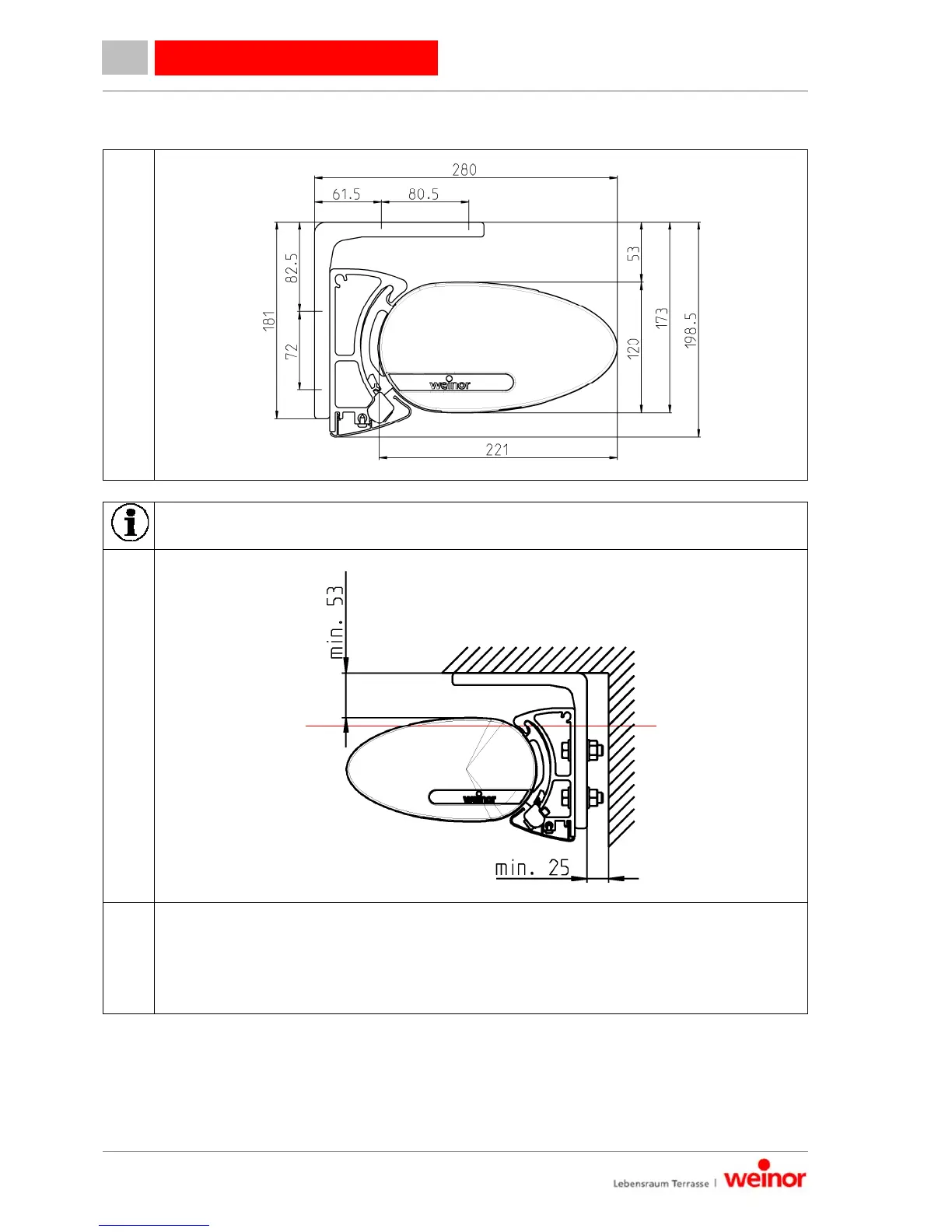

5.3 Ceiling installation
A space of at least 25 mm from the back of the wall is needed to be able to install the wall
bracket on the ceiling angle without difficulty at a later stage.
1. Fit ceiling angle
1. Refer to the awning delivery note for the system width (X).
2. The system width (X) of 180 mm equates to the centred spacing of the brackets.
Brackets can be indented by 100 mm; align brackets exactly using suitable tools/aids
(e.g. mason's cord) and a spirit level.
