Instructions for Assembly
Item number 116519-0000
Subject to
technical modifications
Version 4
23.04.2014

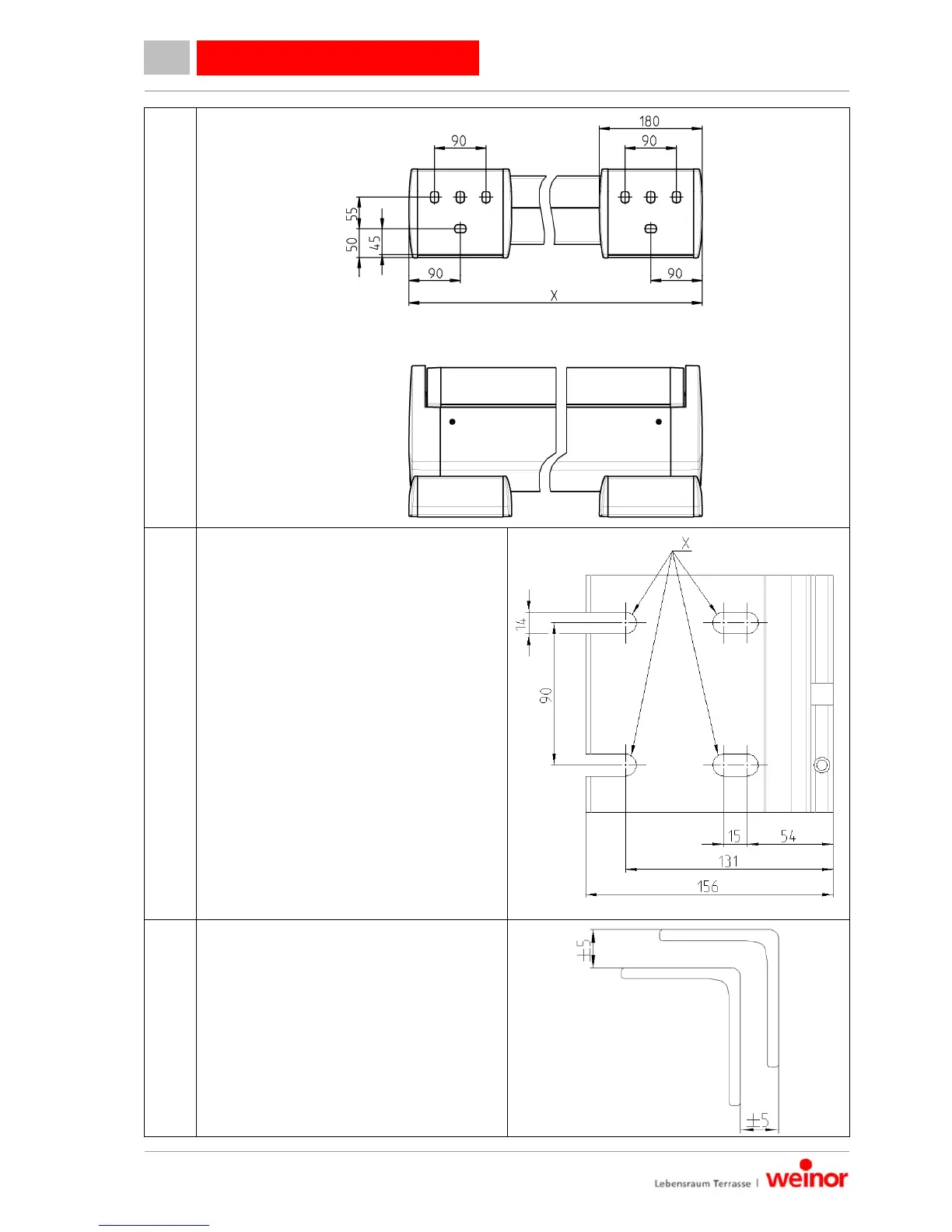

Page 17/47
Cassita II/Cassita II LED
3.
Mark where holes are to be drilled
(X)
(first the front 2, then the back 2), drill
the holes and fit the ceiling angle to
the ceiling.
2.
Check bracket alignment
1.
Check the brackets are at the correct
height and aligned flush, and adjust if
necessary.
www.samsondoors.co.uk
0800 328 6250
www.samsondoors.co.uk
16
18
Table of Contents
Default Chapter
2
Table of Contents
2
1 Notes on Assembly Instructions
4
Validity of These Instructions
4
CE Mark
4
Depiction
5
Warnings
5
Tips and Recommendations
5
Illustrations
5
Instructions Requiring Action
5
Symbols Used
5
2 Safety Notes
6
Fundamental Safety Notes
6
Qualifications
6
Working with Electricity
6
Transportation
7
Lifting with Ropes
7
Mounting Brackets
7
Fixing Material
7
Ladders
7
Anti-Fall Guards
7
Electrical Connection
8
Intended Use
8
Unsupervised Operation
8
Test Run
8
Crushing and Cutting Zones
9
Handover
9
3 List of Tools
10
4 Product Description
11
Schematic Diagram
11
5 Assembly
12
Safety Notes
12
Wall Mounting
13
Wall Mounting Using a 150 MM Wall Bracket
13
Ceiling Installation
16
Ceiling Installation Using Compact Ceiling Angle
20
Rafter Bracket Installation
23
Safety Notes
23
Fitting the Rafter Bracket Without a Mounting Plate
24
Fit the Rafter Bracket with Mounting Plate
26
Variations of Rafter Assemblies
27
Assembling the Light Bar
29
Installing the Receiver Box
30
Setting the Angle of Inclination
31
Setting the Projection in an Awning with Gear Drive
32
6 Cassita II Circuit Diagram
33
Cassita II, Standard
33
Cassita II mit Biconnect Radio Control
34
Cassita II LED, Standard
34
Cassita II LED with Biconnect Radio Control
35
7 Adjusting the Arm Position
36
Possible Incorrect Positions of the Awning
36
8 Electrical Connection
37
Safety Notes
37
Setting the End Positions
37
9 Cassita II Exploded Drawing
39
10 Test that the Unit Is Working Correctly
41
Safety Notes
41
Checking the Functions of the Unit
41
11 Troubleshooting
42
12 Handover
42
13 Disassembly and Disposal
43
14 Handover Certificate
44
15 Declaration of Performance
45
16 EC Declaration of Conformity
46
17 Other Weinor Products
47
