weinor Opal Design II LED User Manual

Instructions for Assembly
Item number 116523-0000
We reserve the right to make technical
changes
Version 4 01.04.2014 Page 21/49
Opal Design II / Opal Design II LED

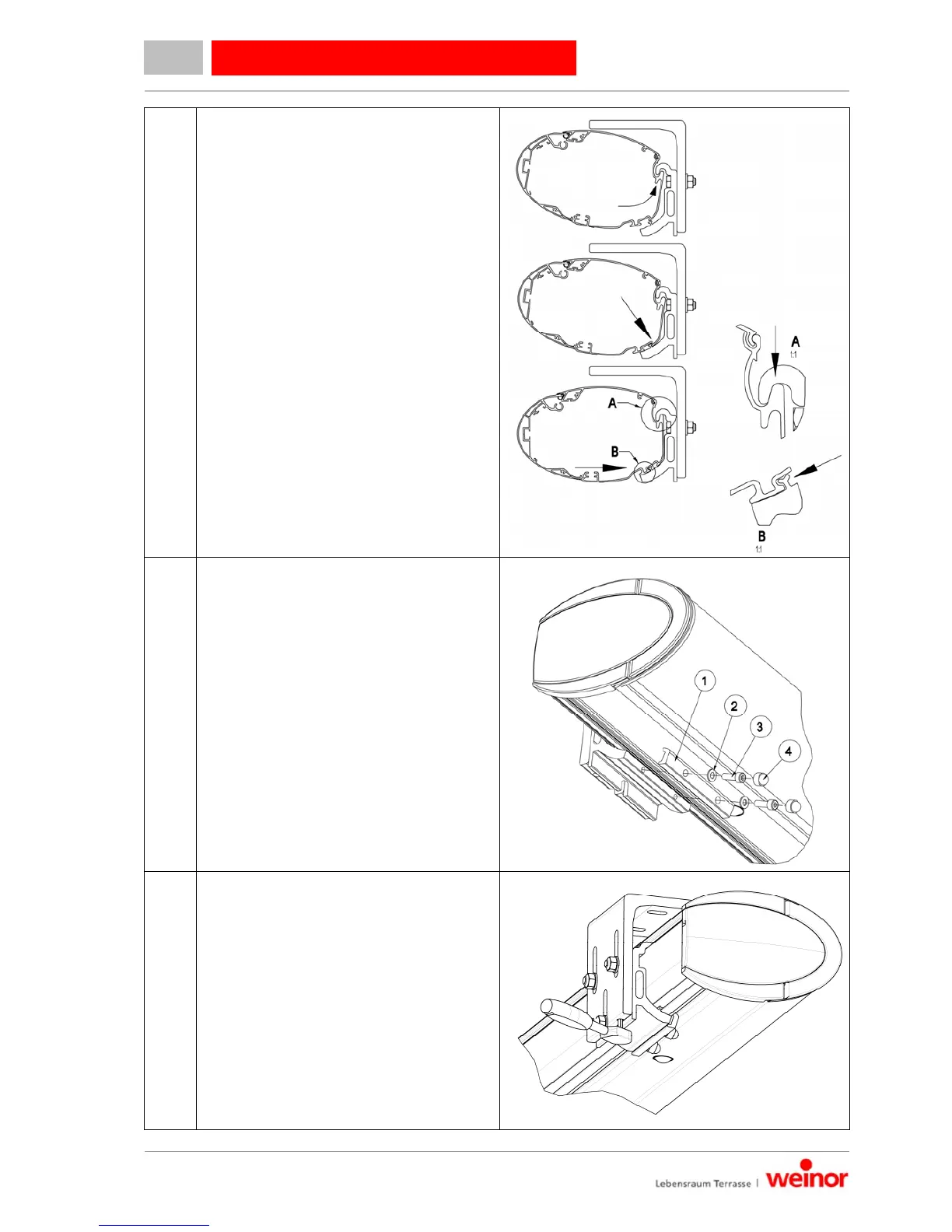

4. Fit awning
5. Screw the clamping profile onto the
retaining plate
1. Mount the clamping profile (1) using
Allen screws (3) and washers (2).
2. Mount the cover caps (4).
6. Screw down the retaining plate
1. Turn the grub screws clockwise as
far as they will go until they are fully
tight on the awning.
2. Fully tighten the M12 screws.
3. Insert the bottom M12 screw and
fully tighten.
