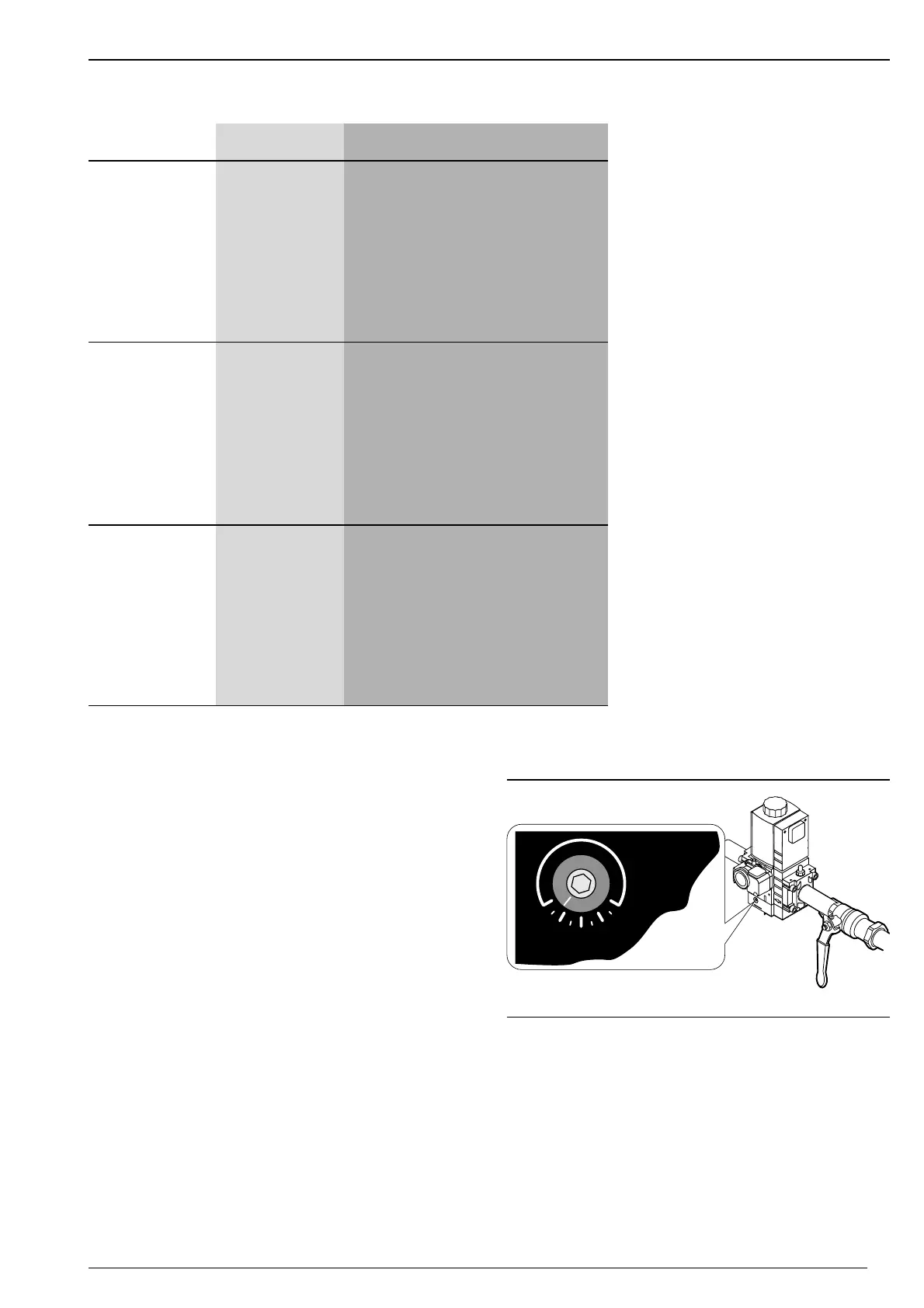

Set gas pressure
Factory pre-setting: 7 mbar
The results of the table have been calculated on flame
tubes under idealised conditions (p
F
= 0 mbar). The values
are therefore guidelines for basic settings. Small variations
may occur when commissioning depending on individual
installations.
Note The combustion chamber pressure has to be
added to the setting pressure listed above.
The minimum connection pressure should not
be below 15 mbar.
Setting and connection pressures
The information given for calorific value H
i
and the Wobbe index W
i
relate to 0°C and 1013·25 mbar.
Burner Setting pressure Connection pressure min.
rating after pressure (flow pressure in mbar into shut off valve)
[kW] regulator [mbar] Valve train NB
W-MF 507
3/4”
Natural Gas E, H
i
= 37·26 MJ/m
3
(10·35 kWh/m
3
), d = 0·606, W
i
= 47·84 MJ/m
3
40 6·2 10·0
50 6·4 10·0
60 6·4 10·0
70 6·6 10·0
80 7·0 10·0
90 7·2 11·0
100 7·4 12·0
110 7·6 13·0
Natural Gas LL, H
i
= 31·79 MJ/m
3
(8·83 kWh/m
3
), d = 0·641· W
i
= 39·67 MJ/m
3
40 7·9 12·0
50 8·6 12·0
60 7·4 12·0
70 7·9 12·0
80 8·5 13·0
90 8·6 14·0
100 9·4 15·0
110 9·6 16·0
LPG B/P, H
i
= 93·20 MJ/m
3
(25·89/m
3
), d = 1·555, W
i
= 74·73 MJ/m
3
40 4·3 8·0
50 4·0 8·0
60 4·7 9·0
70 5·4 9·0
80 5·8 10·0
90 6·6 11·0
100 7·2 12·0
110 7·8 12·0
