Weishaupt WG30 1-C ZM-LN Series User Manual

Installation and operating instruction
Gas burner WG30…/1-C ZM-LN
3 Product description
83299902 1/2019-02 La
13-124

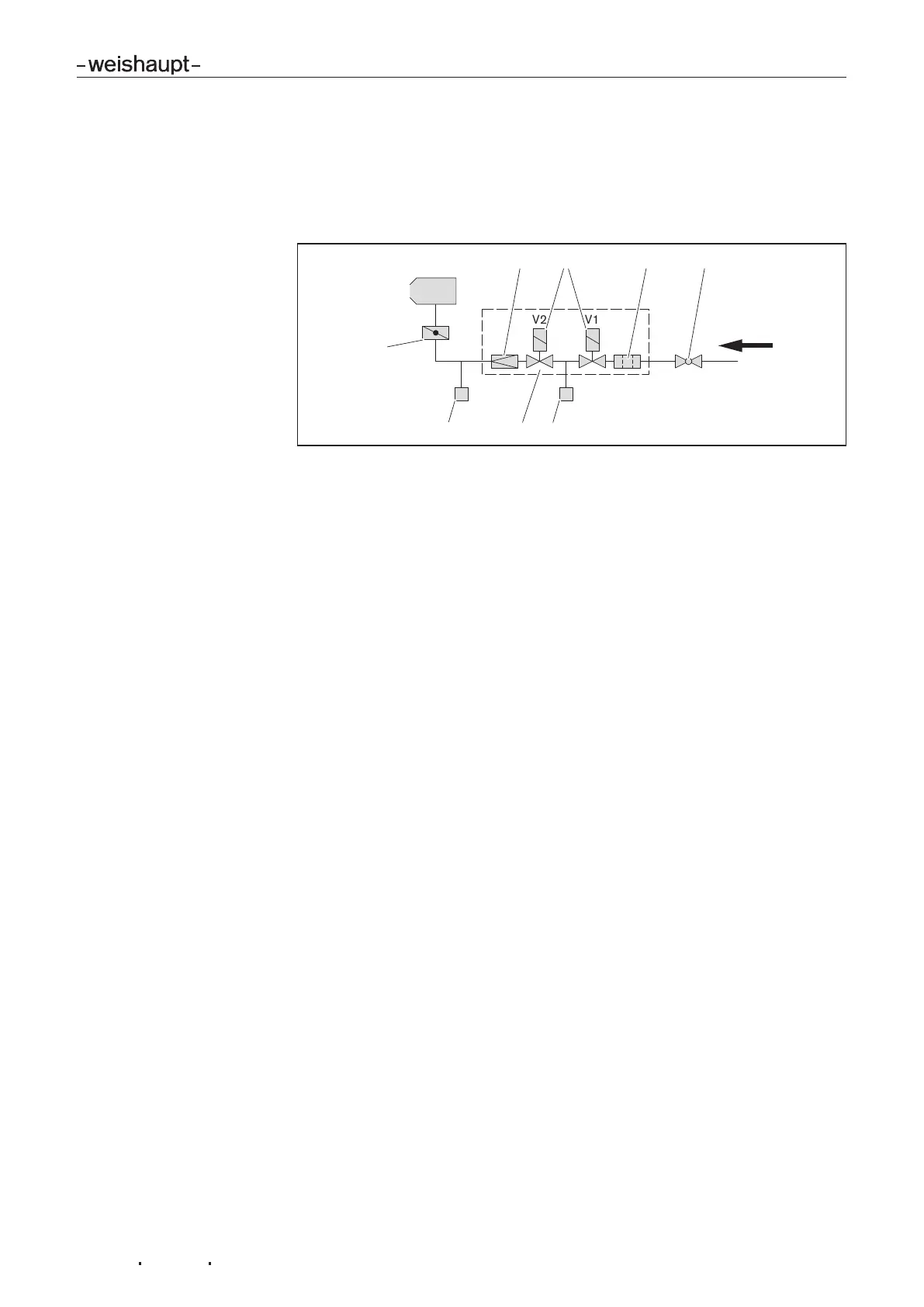

High gas pressure switch 6 (optional)
Depending on the burner application, optional equipment may be required for op-
timum operation [ch.12.1].
The high gas pressure switch monitors the setting pressure. If the setting pressure
exceeds the value set, the combustion manager initiates a controlled shutdown.
P
P
78
6
3
12
5
4
V1
V2
3.3.3 Electrical components
Combustion Manager
The combustion manager W-FM is the control unit of the burner.
It controls the sequence of operation and monitors the flame.
Operating panel
The values and parameters of the combustion manager can be displayed and
changed at the operating panel.
Burner motor
The burner motor drives the fan wheel.
With variable speed drive, a frequency converter is connected upstream.
Ignition unit
The electronic ignition unit creates a spark at the electrode, which ignites the fuel/
air mixture.
Ionisation electrode
The combustion manager monitors the flame signal via the ionisation electrode.
If the flame signal becomes too weak, the combustion manager carries out a con-
trolled shutdown.
