Gas burner WG30…/1-C ZM-LN
3 Product description
83299902 1/2019-02 La
19-124
3.4.6 Rating
Combustion heat rating
Natural Gas
Liquid Petroleum Gas
40…350 kW
60…350 kW
Combustion head WG30/1-LN

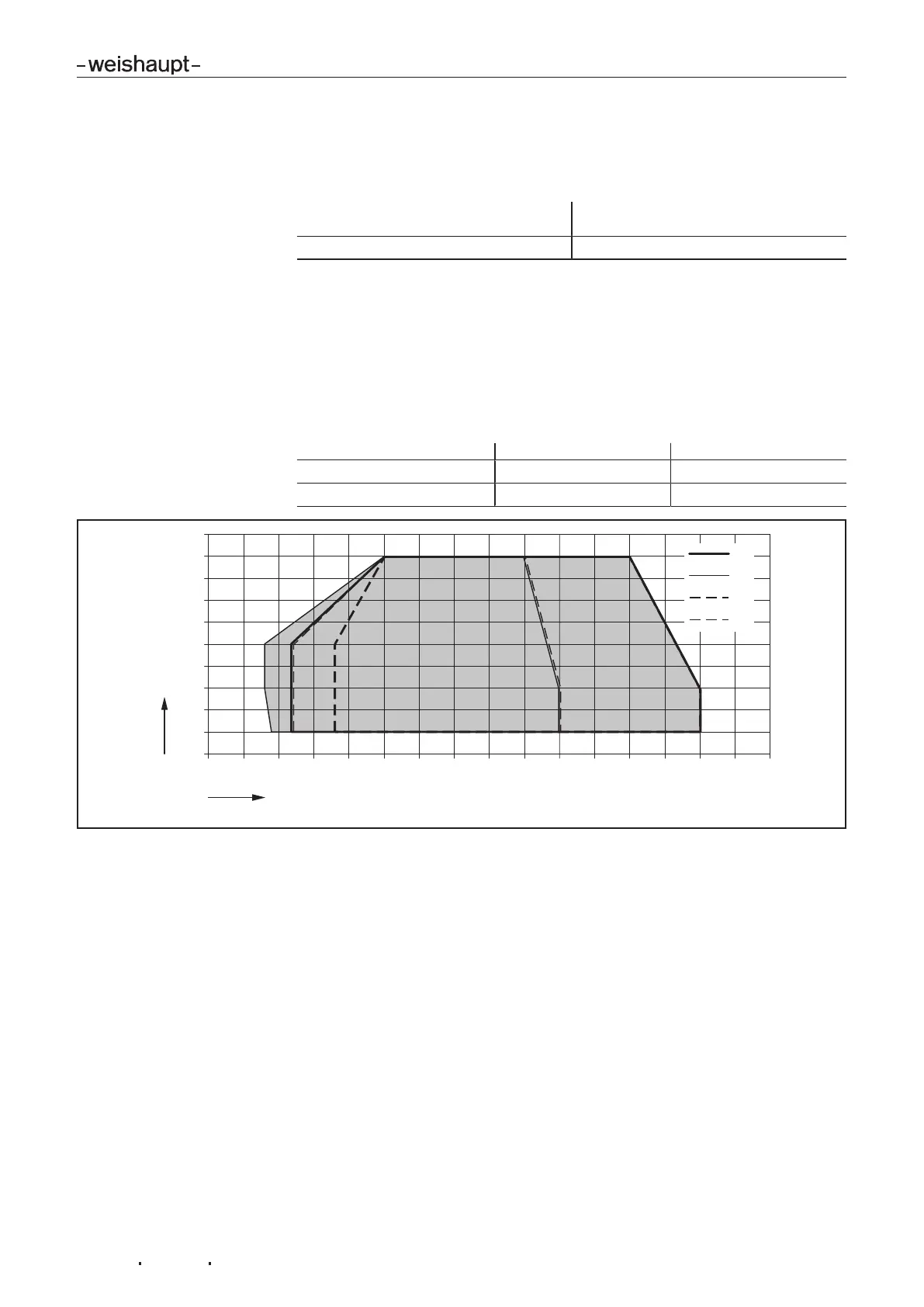

Capacity graph
Capacity graph to EN676.
The capacity data given relates to an installation elevation of 0m above sea level.
For installation elevations above 0m a capacity reduction of
approx.1%per100m applies.
A limited capacity graph is valid for ducted air intake.
Combustion heat rating at combustion head setting:
Natural Gas Liquid Petroleum Gas
Combustion head OPEN 3 5
Combustion head CLOSED 4 6
5
4
6
3
1
2
-1.0
-1.5
-0.5
0
0.5
1.0
1.5
2.0
325 4003753503002752001751501251007550250
2.5
3.0
3.5
250225
1 Combustion heat rating [kW]
2 Combustion chamber pressure [mbar]
