Installation and operating instruction
Gas burner WG30…/1-C ZM-LN
6 Operation
83299902 1/2019-02 La
35-124

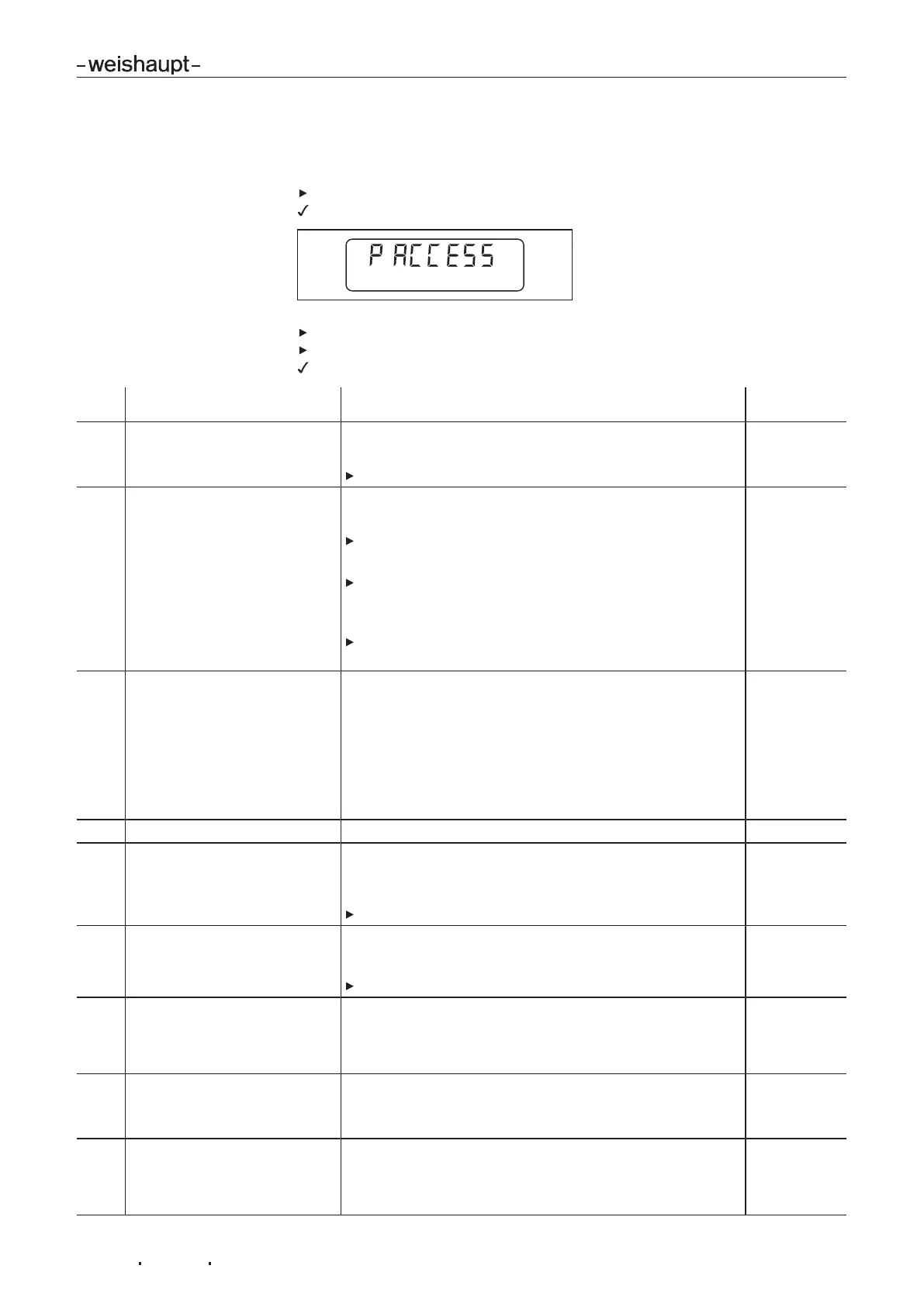

6.2.3 Parameter level
The parameter level can only be called up in Standby (OFF) mode.
Press [+] and [Enter] keys simultaneously for approx. 2 seconds.
The parameter level is activated.
Press[+] key.
Press [Enter] to reach the next parameter.
Only then will the value be stored.
Pno. Parameters Setting range Factory
setting
1 Fieldbus address 0 … 254 / OFF
Switch over to OFF and to address:
Briefly press [–] and [+] simultaneously.
OFF
2 Actuator position in Standby 0.0 … 90.0°
Change air damper setting:
Press [L/A] and [+] or [–].
Change gas butterfly valve setting:
Press [G] and [+] or [–].
Change fan speed:
(only in conjunction with variable speed drive)
Press [Enter] and [L/A] simultaneously and press [+] or
[–].
0.0
3 Function fieldbus module
–or–
function analogue module
The parameter is dependent on the module used.
Setting range of parameters, see installation and operating
manual of module.
Fieldbus module (response to heat demand):
2: Bus default and control circuit (T1/T2) activated
Analogue module:
2: DIP switches activated
2
4 Post-purge time 0 … 4095 s 2
5 Fault memory 0: fault memory is empty
1: fault memory contains data
Delete fault memory:
Press [L/A] and [+] simultaneously for approx. 2 seconds.
–
6 Factor for gas consumption
Impulse rate of meter per m
3
1 … 65535
200 impulses ≙ 1 m
3
Adjust factor depending on impulse rate of gas meter.
200
A Low gas pressure switch/valve
proving gas pressure switch
(X3:12)
0: not activated
1: Proof-of-closure (valve 1)
2: without low gas pressure switch
3: with low gas pressure switch
3
b Air pressure switch (X3:11)
(display only, no adjustment
possible)
0: not activated
1: activated
1
C Operating mode output X3:1 0: not activated
1: with pilot valve not interrupted
2: with pilot valve interrupted
3: Standard (external LPG valve)
3
