Weishaupt WG30 1-C ZM-LN Series User Manual

Installation and operating instruction
Gas burner WG30…/1-C ZM-LN
9 Servicing
83299902 1/2019-02 La
79-124

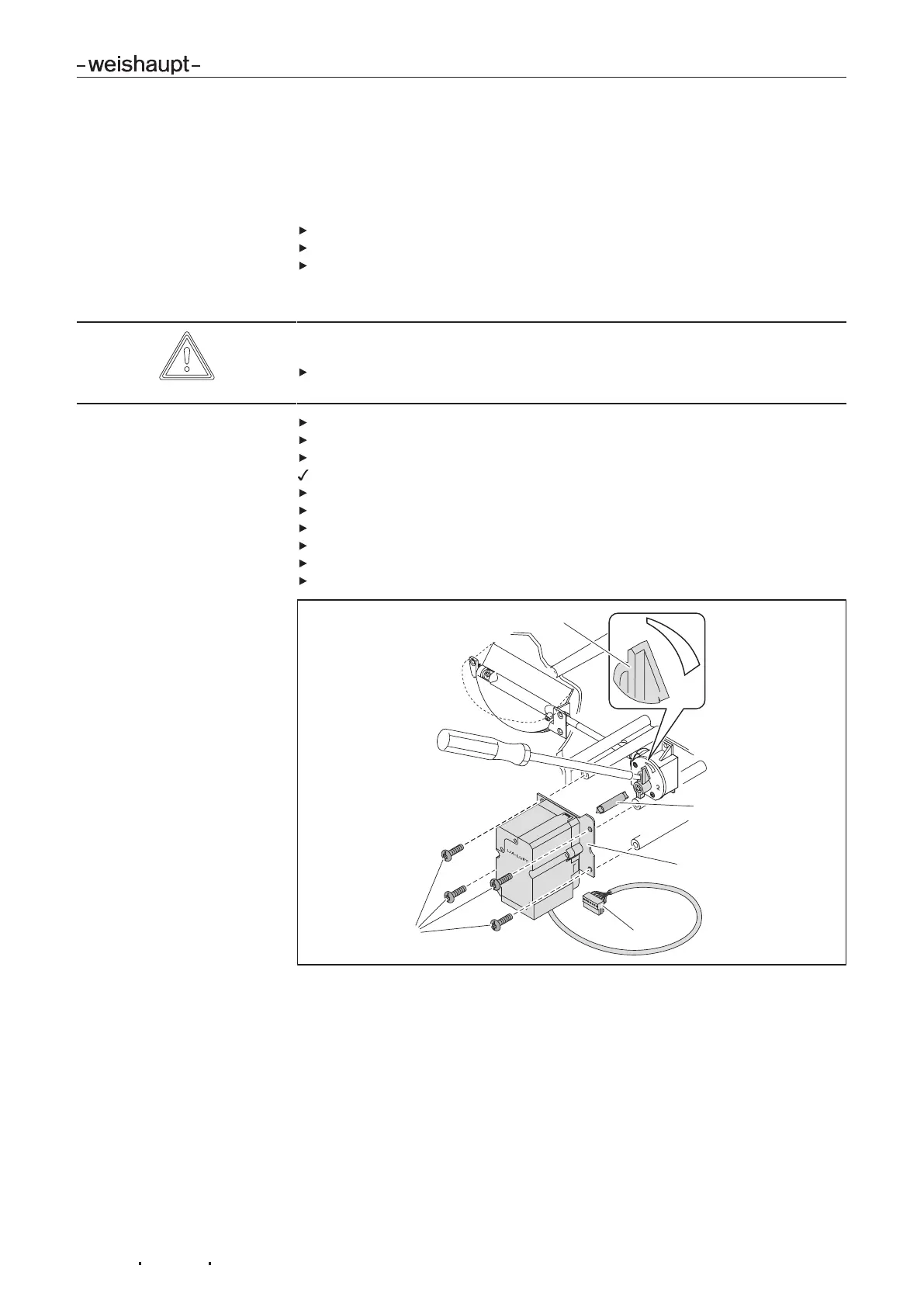

9.9 Removing and refitting air damper actuator
Observe notes on servicing [ch.9.1].
Removing
Remove actuator plug 4 from combustion manager.
Remove screws5.
Remove actuator with fixing plate3 and shaft2.
Refitting
CAUTION
Damage to the actuator caused by turning the hub
Actuator could be damaged.
Do not turn hub manually or with tool.
Plug in actuator plug4 at the combustion manager.
Unplug bridging plug No. 7 on combustion manager.
Switch on voltage supply.
The combustion manager checks the actuator and drives to the reference point.
Interrupt voltage supply.
Fit shaft2 to actuator.
Set indicator1 on angle drive to 0 (air damper Closed) and hold.
Fit shaft with actuator to angle drive.
Secure actuator.
Plug in bridging plug No. 7 on combustion manager.
1
2
3
4
5
