Gas burner WG30…/1-C ZM-LN
4 Installation
83299902 1/2019-02 La
23-124

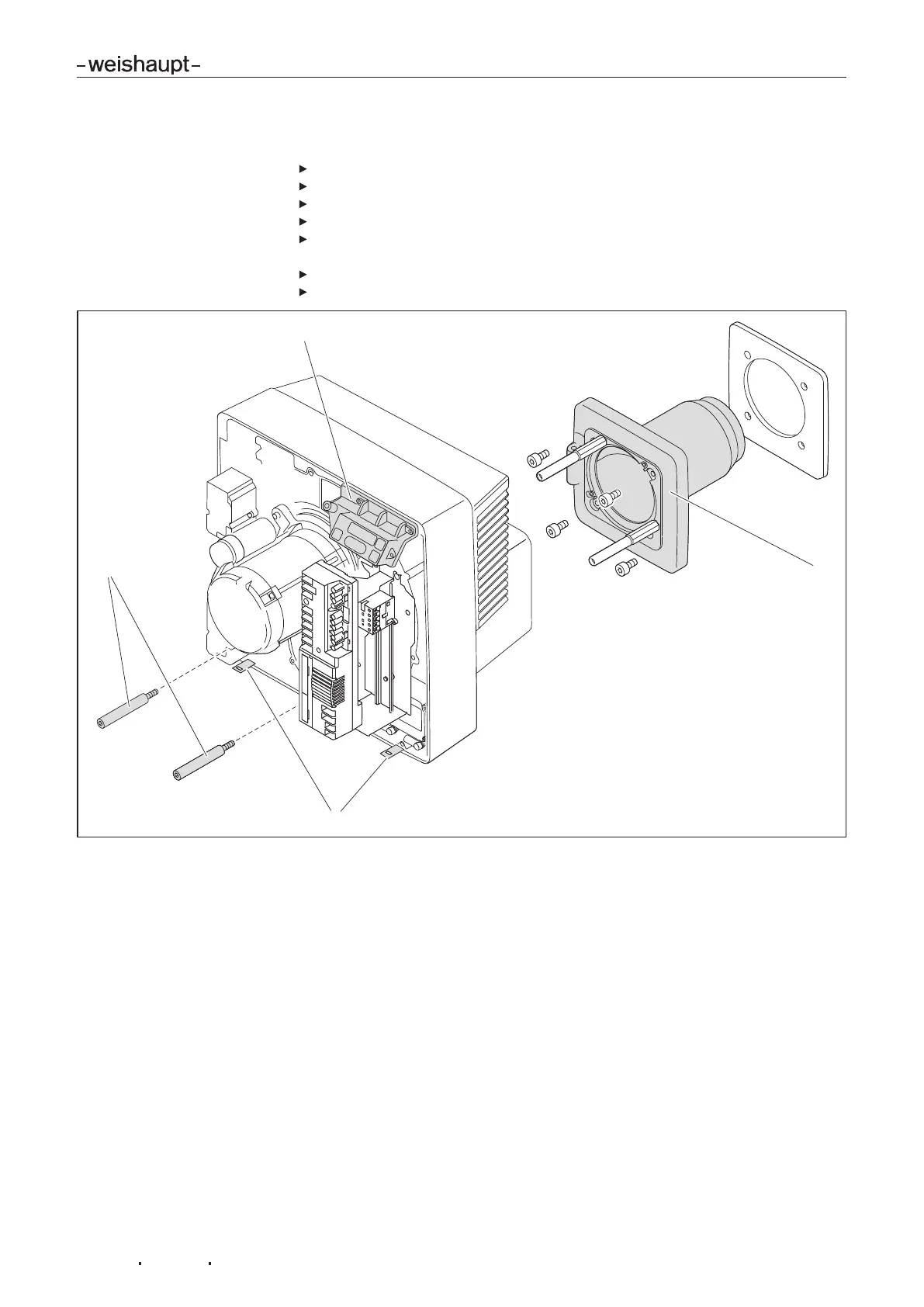

4.2.1 Rotate burner by 180° (optional)
Mount operating panel1 on the opposite side of the housing.
Mount fixing bracket3 on the opposite side of the housing.
Rotate burner flange2 180° and mount with flange gasket.
Rotate burner 180° and fit screws 4 to burner flange.
The aperture between combustion head and refractory should be filled with
flame-proof, resilient insulating material (do not make solid).
Check setting of electrodes [ch.9.5].
Fit mixing head [ch.9.3].
4
1
2
3
