Weishaupt WG30 1-C ZM-LN Series User Manual

Installation and operating instruction
Gas burner WG30…/1-C ZM-LN
9 Servicing
83299902 1/2019-02 La
78-124

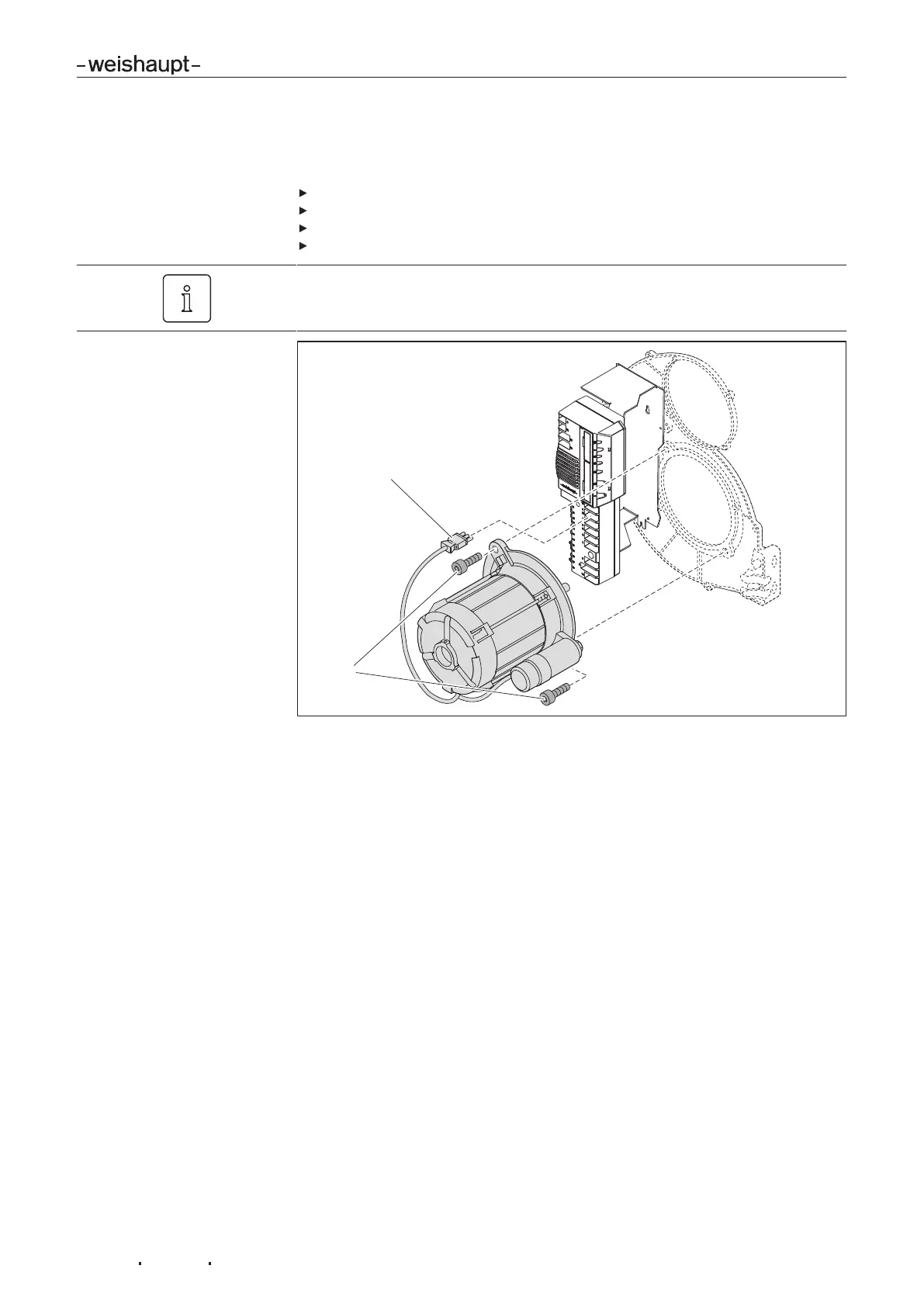

9.8 Remove burner motor
Observe notes on servicing [ch.9.1].
Remove fan wheel [ch.9.7].
Unplug plug 1.
Hold motor and remove screws 2.
Remove motor.
Only in conjunction with variable speed drive
The variable speed drive sensor is fitted to the burner motor. If necessary remove
variable speed drive sensor.
1
2
