Weishaupt WL20/2-C Z User Manual

Installation and operating instruction
Oil burner WL20/2-C Z
4 Installation
83307702 1/2019-04 La
22-80
4.3 Burner installation

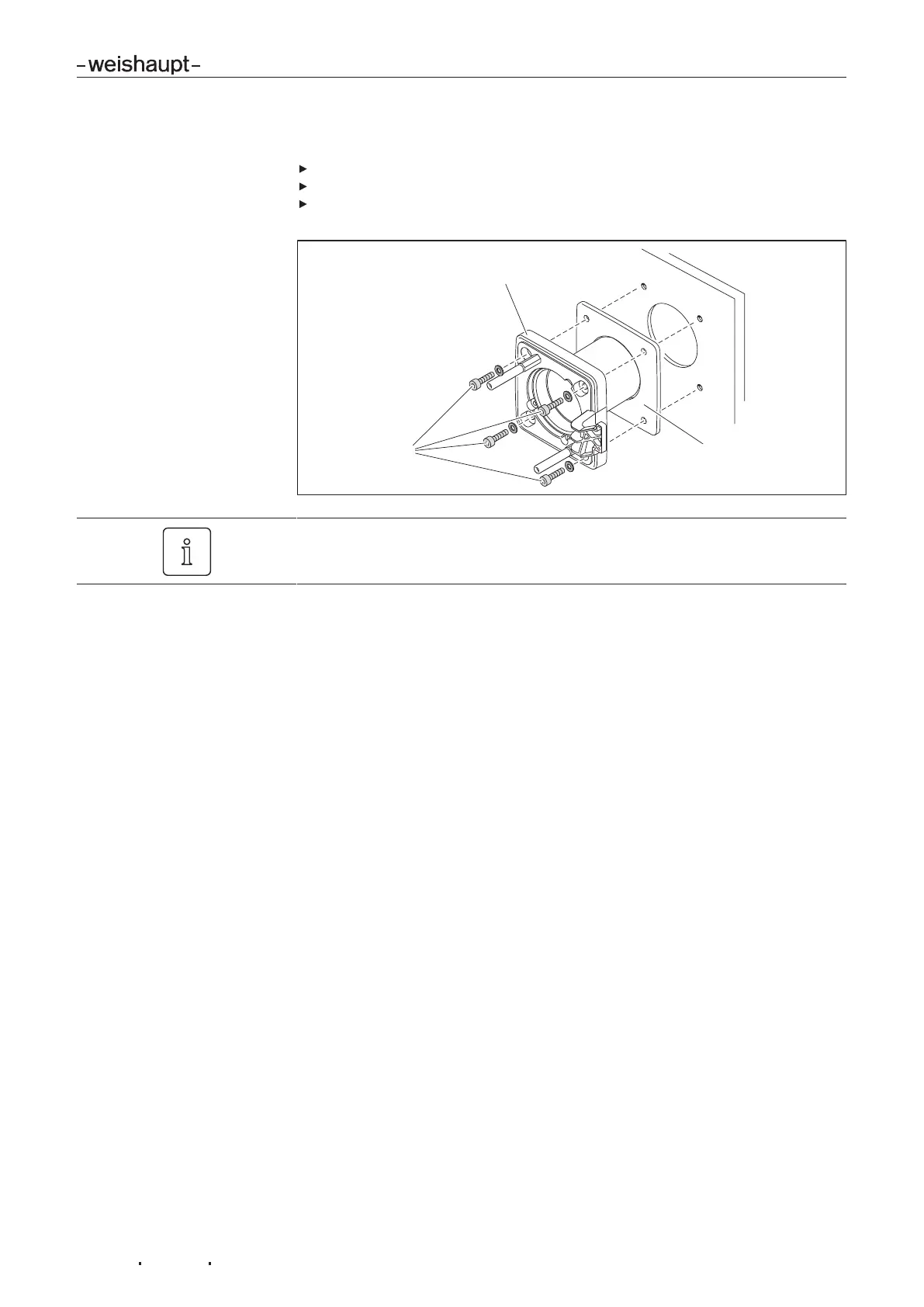

Remove burner flange 1 from burner housing.
Fit flange gasket 2 and burner flange 1 to the heat exchanger using screws 3.
The aperture between combustion head and refractory should be filled with
flame-proof, resilient insulating material (do not make solid).
1
3
2
It is possible to install the burner rotated by 180 if space is limited. This requires
conversion measures [ch.4.3.1].

Weishaupt WL20/2-C Z Specifications

General

Brand	Weishaupt
Model	WL20/2-C Z
Category	Burner
Language	English
