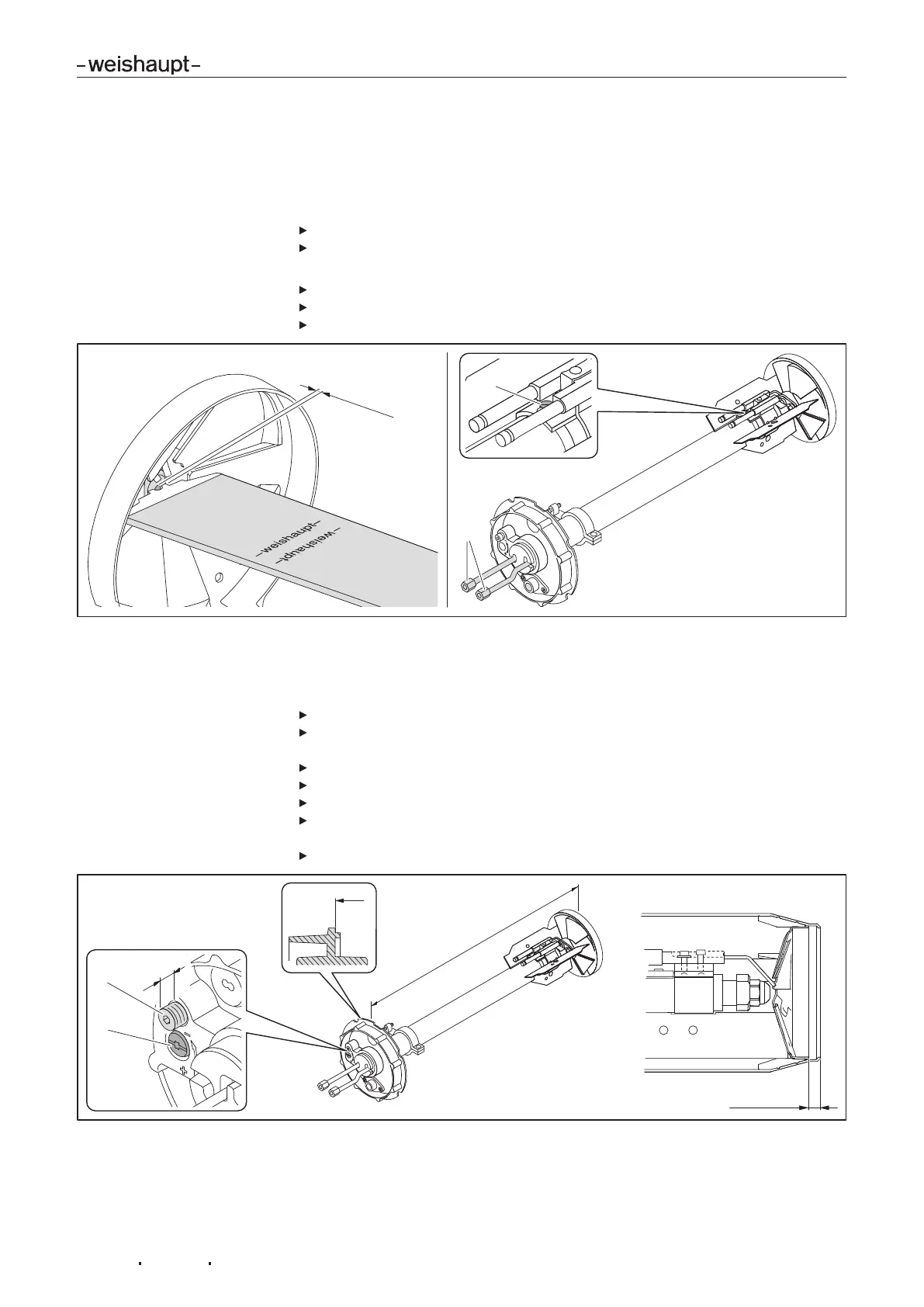

9.7 Set mixing head
Observe notes on servicing [ch.9.1].
Set nozzle distance
Place burner into service position A [ch.9.3].
Insert setting gauge and check dimension A (5.0 mm).
If the value measured deviates from dimension A:
Undo screw1.
Adjust nozzle body 2 until dimension A is reached.
Re-tighten screw1.
A = 5 mm
2
1
Check basic setting
Dimension S1 can only be checked when the burner is mounted to a boiler door,
which is hinged open.
Hinge open boiler door or if necessary remove mixing head [ch.9.6].
Turn setting screw1 until the indicating bolt2 is flush with the nozzle as-
sembly cover (dimension X = 0 mm).
Check dimension S1 and/or dimension Lx.
Set dimensionS1 and/or dimensionLx using setting screw1.
Remove plug from indicating bolt2.
Turn indicating bolt until it is flush with the nozzle assembly cover
(dimension X = 0 mm).
Replace plug.
Lx = 357 mm
X
Lx
S1 = 9 mm
2
1
